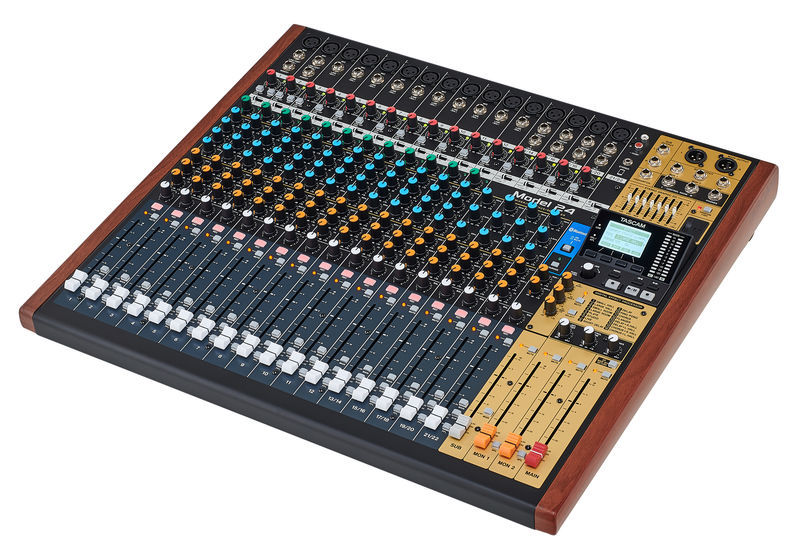

Tascam Model 24

22-Channel Analogue Mixer with Recorder

  • 22 Channels - 12x mono and 5x stereo
  • Integrated 24 track recorder
  • Recording on SD card with maximum 24 Bit / 48 kHz
  • Simultaneous playback of 22 tracks possible
  • Function as 24 channel USB audio interface
  • 3-Band EQ for Channels 1 - 20
  • Compressor for channels 1 - 12
  • Integrated effect processor
  • 3 Aux ways
  • 7-Band graphic EQ for master or aux/monitor
  • Bluetooth receiver for wireless stereo sources
  • 100 mm Fader
  • Integrated power supply
  • Dimensions: 577 x 529 x 106 mm
  • Weight: 10.4 kg

Connections:

  • 16 XLR Microphone inputs with +48 V phantom power
  • 22 6.3 mm TRS line inputs
  • XLR Stereo main output
  • 6.3 mm TRS Stereo sub output
  • 6.3 mm TRS Stereo control room output
  • 6.3 mm Stereo headphone output
  • Suitable cover: Art.484169 (not included)

Further Information

Parallel usable Channels 22
Mic Ins 16
Stereo Ins 5
Master Out XLR
Number of Pre Aux max. 2
PC Interface USB-B
Multitrack Recording Yes
USB/SD Direkt Record SD
PFL Yes
Effect Processor 1
USB Play No
Bluetooth Play Yes
Matrix Mixer No
Zones 0
19" Rackmount No

These are other customers' choices:

Customers who looked at this item have bought these:

Tascam Model 24
62% bought this exact product
Tascam Model 24
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
€925 Add to Basket
Tascam Model 16
7% bought Tascam Model 16 €789
Behringer Xenyx X2222USB
4% bought Behringer Xenyx X2222USB €218
Behringer Xenyx X2442 USB
4% bought Behringer Xenyx X2442 USB €279
SSL SiX
4% bought SSL SiX €1,375
Our most popular Analogue Mixing Desks
26 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
Perfect all rounder for home studio (and live recording)
udiwudi, 14.05.2020
This mixer / interface / recorder - may not be for everyone - but it was definitely perfect for me. I looked for an all in one solution (after several years of being out of the music recording loop due to work etc.) . This one fit the said requirements perfectly - it's a mixer with more than enough connections for live recording including drum recording (which alone needs 8 mics in my setup) + other live instruments, it's a more than capable audio interface (up to 48kHz 24bit) for my DAW, and it's also a standalone multitrack recorder (which needs an SD card) - perfect for simple live recording without depending on a DAW in live situations (but which can of course be imported to the DAW later on for more advanced mixing and mastering). It's also rather visually appealing with a vintage (faux) wood finish.

The standalone multitrack recording capabilities took me back on memory lane to the days of my 4 track fostex cassette recorder - but I digress (as well as revealing my age).

One slight drawback though - it would be nice to have an option to record the individual tracks through the audio interface into the DAW post fader - as well as pre fader - thus enabling to use the onboard EQ and effects on individual tracks. As it is - the only way to do this is through the stereo mixdown (channels 23/24). Still, most people would be using the DAW plugins anyway for EQ, effects and such, so it's not really a deal breaker as such. There are also steady firmware updates, so who's to tell what functionality might still be added.
Also, the newer (but much smaller) Model 12 has some functionality the Model 24 lacks - a built in metronome as well as a MIDI interface (so you don't need an extra MIDI usb adapter). These would have been nice to have on this Model as well, so if you don't need 24 tracks - maybe the Model 12 could be a better fit for you. But for me none of these are major issues.

So in short - highly recommended.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
amazing product for the price
tothlau, 21.04.2020
Tascam, some things to be improved;
SOLO button would have been the icing on the cake.
Low cut and or eq's on the phono/bluetooth channel.
Aux rtn so I dont loose a channel just to return effects.
And plastic fake wood on the side, I mean come on, that was the most disappointing part of the entire product.
If you have a small studio with a few pieces of hardware and also run a few vst channels from your computer, then this this will NOT let you down. It was plug and play and everything worked first time and continues to do so. Very happy indeed and highly recommended, nice work people of Tascam.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
Model 24
pound, 24.07.2019
As a unit on the hole it is very good.
We have been using this for a month or so now as a live studio mixer/recorder.
The software for the 24 track recorder is very buggy and will crash or even lock up on you , fortunately not while recording .
The Phantom power is global which is a shame..
Overall the unit is strong well made and ,as far as mixers go , good looking.
IMO the pros outweigh the cons with this unit and is worth having a look at if you are in the market for this type of thing.
Yes I do recommend this.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
Great product for a good price
the uncle, 18.03.2019
the model 24 is used in a mixing and overdubbing environment and it is brilliant for this. mainly bought to be able to send tracks from Pro Tools to outboard processing and bring them back in.

most other mixers in this price range don't have the versatility this product has, three aux sends etc.

the size is great too, faders with a beautiful feel..
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
