Mackie ProFX16v3

Start 360°

16 Channel Mixer

11 microphone inputs with 3-band EQ on all channels with variable mid-frequency control (channels 15/16 feature a standard 3-band EQ)
Eight inserts and eight single-button compressors
Channels 9–14 feature microphone inputs and stereo line inputs
1x 3.5 mm stereo jack line input
2x4 USB interface
Built-in GigFX effects unit with 24 effects
100 Hz low-cut filter
Two Hi-Z switches
48 V phantom power
Headphone jack
Three AUX/Monitor outputs with dedicated sends per channel
Two stereo subgroups with assignment per channel
Footswitch connector
iOS support with optional Lightning to USB 3.0 camera adapter for connection to iPad and iPhone (adapter not included)
Dimensions (H x W x D): 112 x 450 x 434 mm
Weight: 6.9 kg
Includes Waveform OEM™ Recording-Software
Suitable protective cover: Art. 485948 (not included)
Suitable case: Art. 501878 (not included)
Suitable rackmounts: Art. 473652 (not included)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since November 2019
Item number 473565
Sales Unit 1 piece(s)
Parallel usable Channels 12
Mic Ins 11
Stereo Ins 4
Master Out XLR
Number of Pre Aux max. 3
PC Interface USB-B
Multitrack Recording No
USB/SD Direct Record No
PFL Yes
Effect Processor 1
USB Play No
Bluetooth Play No
Foot Switch Switch
Matrix Mixer No
Zones 0
19" Rackmount Optional
Width 450 mm
Depth 434 mm
Height 109 mm
Weight 6,9 kg
Simultaneous channels 12
Mic-In 11
Mono Line Ins 9
Mono Line-in 9
Stereo-In 4
Hi-Z Input 2
Phantom Power 48V
Aux Ways 3
max. Pre Aux Channels 3
Audio Interface Input 4
Interface Input 4
Audio Interface Output 2
Interface Output 2
USB/SD Direct Recording No
Low Cut Yes
Insert Yes
Inserts Yes
Parametric EQ Yes
Parametric Yes
Compressor Yes
Panorama Yes
FX Processor 1
Lamp Connector No
Lamp connection No
Footswitch Switch
Bag 473656
Rackmount 473652

Show variations of this product

Mackie ProFX16v3

Mackie ProFX16v3 16 Channel Mixer * 11 microphone inputs with 3-band EQ on all channels with variable mid-frequency cont...

€489

to the product

Mackie ProFX12v3+

Mackie ProFX12v3+ 12 channel mixer with bidirectional Bluetooth * 2x4 USB-C audio interface * Recording modes: Standard,...

€375

to the product

183

Mackie Mix8

Mackie Mix8 8 Channel Compact Mixer * 2 Mic/Line inputs with 3-band EQ and phantom power * 2 Stereo inputs with 3-band E...

€98

to the product

Mackie 1202 VLZ4

Mackie 1202 VLZ4 12-Channel Mixer The 12-channel 1202VLZ4 delivers outstanding sound quality in a compact design thanks ...

€245

to the product

Mackie ProFX10v3

Mackie ProFX10v3 10-Channel Mixer * Four microphone inputs with 3-band EQ * Four inserts and two one-button compressors ...

€239

to the product

Mackie ProFX6v3+

Mackie ProFX6v3+ 6 channel mixer with bidirectional Bluetooth * 2x4 USB-C audio interface * Recording modes: Standard, L...

€259

to the product

Mackie ProFX10v3+

Mackie ProFX10v3+ 10 channel mixer with bidirectional Bluetooth * 2x4 USB-C audio interface * Recording modes: Standard,...

€349

to the product

Mackie ProFX6v3

Mackie ProFX6v3 6-Channel Mixer * Two microphone inputs with 2-band EQ (80 Hz and 12 kHz) * 2x 6.3 mm jack line input * ...

€169

to the product

Mackie ProFX10 GO

Mackie ProFX10 GO 10-Channel Mixer with Bidirectional Bluetooth and Rechargeable Battery * With 2 x 4 USB-C-Audio-Interf...

€419

to the product

Mackie ProFX22v3

Mackie ProFX22v3 22 Channel Mixer * 17 microphone inputs with 3-band EQ on all channels with variable mid-frequency cont...

€699

to the product

Mackie Onyx8

Mackie Onyx 8 8 Channel mixer * 4 Microphone inputs with 100 Hz low- cut and 48V phantom power * Gain up to 60 dB * 3- B...

€349

to the product

€489

All prices incl. VAT

Sales Rank

in Analogue mixers

Information on the disposal of old devices

16 channel USB mixer with FX

Mackie's ProFXv3 series of compact USB mixers upholds the company's long-standing reputation for reliable, professional-grade mixing across live performance, broadcast, and studio environments. Designed for real-world workflows – from home studios and streaming setups to rehearsal rooms and small venues – each model features high-resolution 24-bit/192kHz USB recording, onboard GigFX effects, Mackie's signature Onyx mic preamps with EQ, and latency-free monitoring via dual USB returns. Building on the ProFX12v3, the ProFX16v3 significantly extends input count and routing, offering eleven mic inputs, four auxiliary sends, four subgroups, and compression on eight channels. This expanded format makes it well suited to full-band setups, demanding live productions, and studio environments where flexible monitoring and subgroup control are essential.

Onyx at its core

The Mackie ProFX16v3 is equipped with eleven Onyx microphone preamps, each delivering up to 60dB of clean gain with low noise and ample headroom for vocals, acoustic instruments, and dynamic sources. All mic channels feature three-band EQ with a hard bypass switch and variable mid-frequency control, along with switchable 48V phantom power and 100Hz low-cut filters. Built-in one-knob compression on eight channels provides fast, effective dynamic control for vocals, drums, and instruments – no complex setup required. Effects are provided by the preset-based GigFX engine, offering 24 reverbs, delays, choruses, and other time-based treatments that can be applied quickly for live reinforcement or subtle creative shaping. Effects routing can be managed easily and muted via the mixer's dedicated controls or an optional footswitch.

Where it fits

With its expanded input count and advanced routing, the Mackie ProFX16v3 is designed for bands, venues, and production setups that require serious flexibility without moving to a full digital console. Four aux sends support multiple monitor mixes or external effects chains, while four subgroups make it easy to control and balance related sources such as drum kits, backing vocals, or playback channels. Compared to the ProFX12v3, it's a clear step up in scale and control – ideal for live engineers, rehearsal rooms, and studios managing larger ensembles. For users who need hands-on mixing with robust routing and monitoring options, the ProFX16v3 delivers a practical, no-nonsense solution that still feels familiar and easy to operate.

About Mackie

In 1988 Greg Mackie, already a successful co-founder of a pro audio company, founded Mackie Designs Inc. with the goal of producing affordable, high-quality mixers. The company's first official product, the LM-1602 line mixer, was initially produced within the four walls of his home. As sales figures were encouraging, its successor model CR-1604 soon followed - and in 1991 the company finally moved into its first proper production facility. The combination of reliable quality and low prices quickly brought the company enormous success, so that by 1995 Mackie had already sold 100,000 products. In 2003, the company was renamed LOUD Audio, LLC so that there is no longer any confusion between the Mackie brand and its former parent company of the same name.

Keep it clean

The Mackie ProFX16v3 functions as a 2-in/4-out audio interface, capturing the main mix at up to 24-bit/192kHz while providing two independent stereo returns from the DAW. This makes it straightforward to work with backing tracks, reference audio, or click tracks alongside live inputs – whether recording vocals, rehearsing arrangements, or capturing a livestream or live performance straight to disk. To support recording and production, the mixer comes bundled with Waveform OEM – a powerful DAW with unlimited audio and MIDI tracks – along with the DAW Essentials Collection, a suite of 16 professional plug-ins covering EQ, compression, reverb, delay, and modulation.

In the spotlight

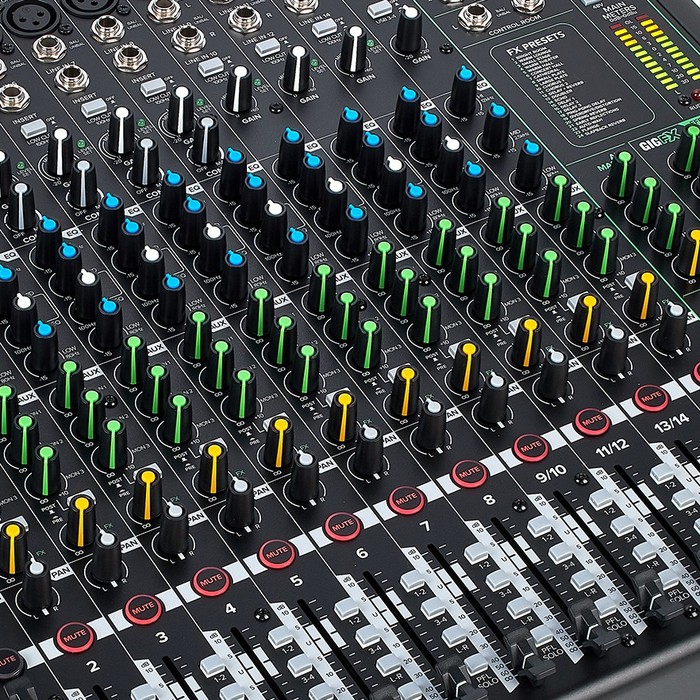

ProFXv3 vs ProFXv3+

All ProFXv3 models share Mackie's core hallmarks, including Onyx mic preamps, 24-bit/192kHz USB audio, and a bundled production package. The standard ProFXv3 range focuses on classic live and recording duties, with fixed GigFX presets and USB-B connectivity suited to straightforward DAW and stage setups. The ProFXv3+ models build on this foundation with editable GigFX+ effects, USB-C recording modes, and bi-directional Bluetooth for wireless playback or call-in sources, with effect editing and preset management handled via a full-colour LCD screen. In practice, both ranges deliver reliable, professional sound, but the "Plus" models add a small set of practical tools, aimed at streamers, podcasters, and hybrid creators working across live and digital environments.
