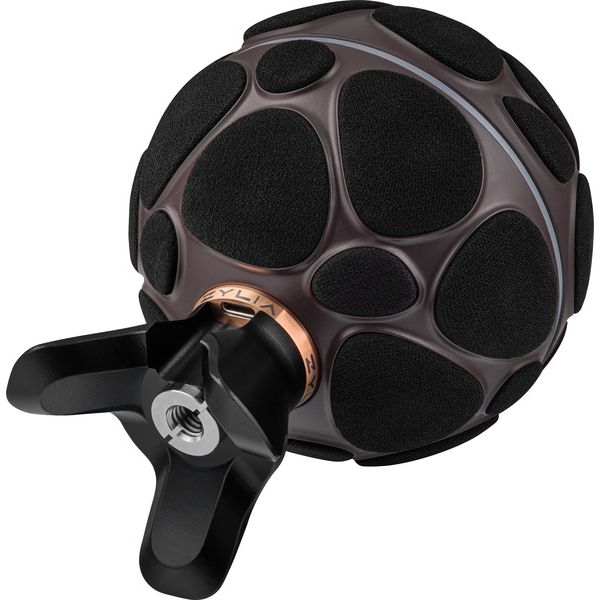

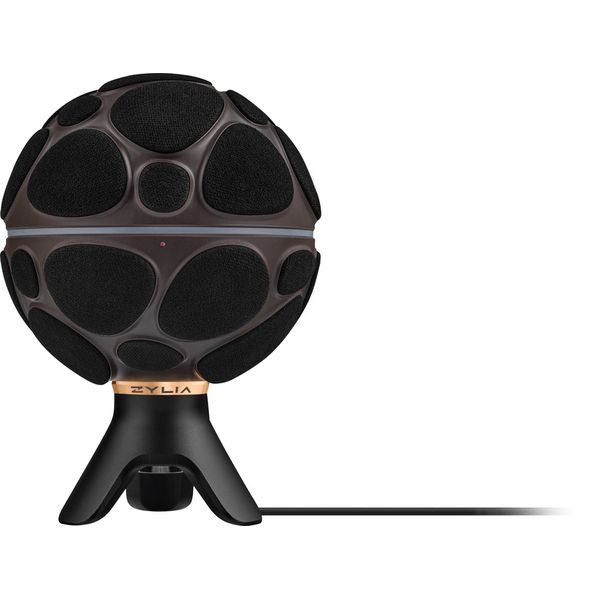

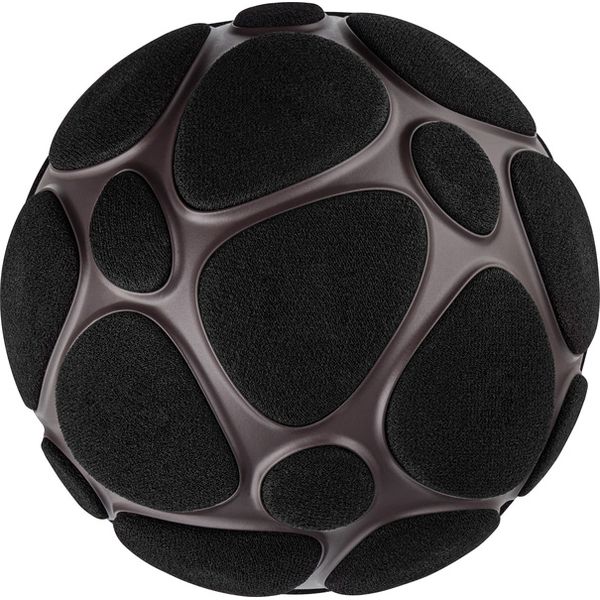

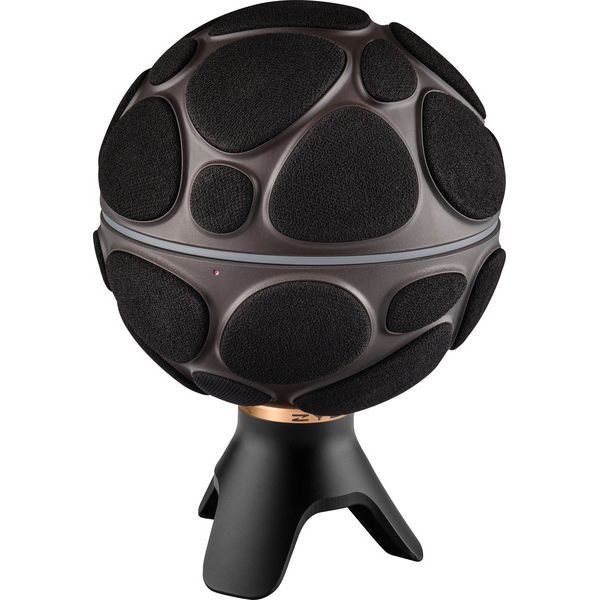

Zylia ZM-2

Ambisonics Microphone

• Microphone array with 19 MEMS microphones for recordings in Ambisonics 3 order
• Enables 3D audio recordings as well as multi-track recordings of, for example, rehearsal room sessions, in the studio or live, using just one microphone
• Zylia Studio software for recording, post-production, mixing and decoding microphone signals
• Zylia Studio Pro plugin (VST, VST3, AU, AAX Native) for real-time decoding
• Zylia Ambisonics Converter for converting ZM-2 signals to Higher Order Ambisonics (HOA)
• Exporting individual tracks as WAV files for further processing in other DAWs

Technical data:

• 19 digital MEMS microphones
• Max. SPL (sound pressure level): 122 dB
• Noise level: -99 dB (A)
• 48 / 96 kHz / 24-bit analogue-to-digital conversion
• Omnidirectional polar pattern
• Frequency range: 20 - 20,000 kHz
• Dynamic range: 101 dB
• THD: < 1 % to 120 dB SPL
• Signal-to-noise ratio: 73 dB( A)

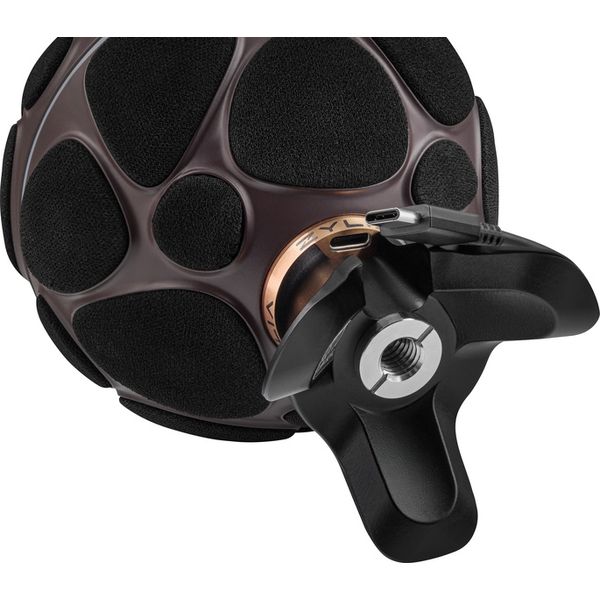

• 1/4" and 5/8" tripod threads
• USB-C port
• Power supply via USB (5 V DC)
• Power consumption: 0.15 V 0.26 A
• Max. power consumption: 2.5 W
• Dimensions: 155 x 103 mm
• Weight: 470 g
• Includes tripod, threaded adapter and USB cable
