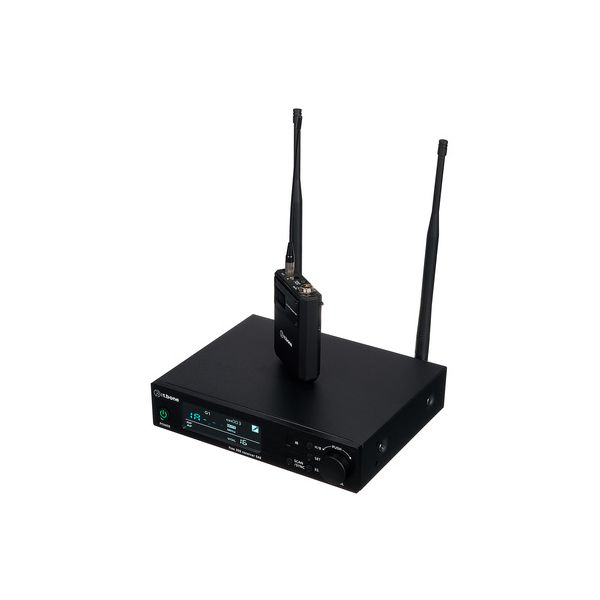

the t.bone free 300 PT 548 B-Stock

Wireless System with Pocket Transmitter

Receiver features:

• Frequency range: 548 - 572 MHz
• 3 pre-programmed frequency groups, each with 10 channels
• 6 systems can be operated in parallel
• LCD display: frequency group selection, battery indicator, AF/RF signal strength
• The selected frequency and volume can be switched between the handheld transmitter and the pocket transmitter (the two channels cannot be used simultaneously)
• Infrared transmission of the setting from the receiver to the transmitter
• Adjustable gain: 0-25 dB
• Range: 100 m (line-of-sight)
• Connections: XLR (balanced), 6.5 mm jack (unbalanced)
• 2 BNC antennas for Diversity
• Operates with a 12V 1A DC power supply
• Dimensions: (W x H x D) 210 x 45 x 193 mm
• Weight: 0.95 kg
• Includes rack mount

Pocket transmitter features:

• 3-pin TQG connector
• Frequency band: 821–832 / 863–865 MHz
• Battery life: approx. 8 hours (talk time), approx. 12 hours (standby)
• LCD display: Selected frequency, battery indicator
• Option to scan the receiver frequency
• Detachable antenna
• Powered by 2 x 1.5 V AA batteries or rechargeable batteries (not included)
• Dimensions (W x D x H): 94 x 64 x 34 mm
