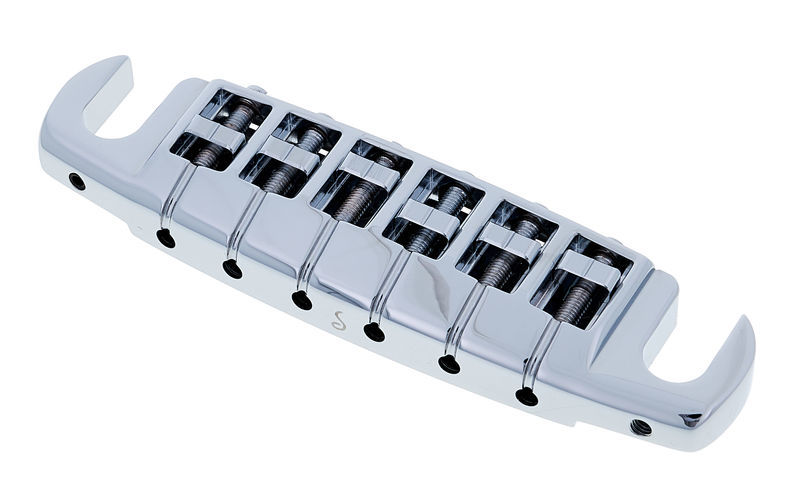

Schaller Signum Bridge C

Wraparound Style Bridge for Electric Guitar

  • Specially designed locking studs for tight connection and perfect sound coupling
  • Specifically shaped saddles made of solid brass for improved sound development, dynamics, sustain and overtone behaviour
  • Wide 9 mm intonation adjustment range
  • Optimised string-through-bridge routing for effortless restringing
  • Rectangular ballend retainer holes to prevent untwisting ballends
  • Suitable for curved and flat guitar ceilings
  • Material: Zinc
  • Saddles: Brass
  • Total string spacing: 52.5 mm
  • Single string spacing: 10.5 mm
  • Dimensions (L x W x H): 99.9 x 23.9 x 12.9 mm
  • Total borehole / Bolt distance: 81.8 mm
  • Weight: 90 g
  • Finish: Chrome
  • Schaller No. 12350200
  • Includes 2 Signum Locking height adjustment screws M8 with press-in bushings 11.2 x 25 mm, 1 Signum wrench, 2 pairs of grub screws of different lengths (6 mm / 10 mm - 6 mm length is already pre-assembled) and 1 Allen key for grub screws
  • Made in Germany

Further Information

Colour Chrome
Design Wraparound
Single Rider Yes
String Holder Yes

These are other customers' choices:

Customers who looked at this item have bought these:

Schaller Signum Bridge C
26% bought this exact product
Schaller Signum Bridge C
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
£111 Add to Basket
Schaller Signum Bridge N
12% bought Schaller Signum Bridge N £111
Schaller Signum Bridge BC
8% bought Schaller Signum Bridge BC £116
ABM 3021na Wraparound Bridge
8% bought ABM 3021na Wraparound Bridge £74
ABM Rollerbridge 2400c-RO C
7% bought ABM Rollerbridge 2400c-RO C £95
Our most popular Guitar Bridges
2 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • quality
Good sustain but one of the saddles comes off when intonating
TudorVisan, 29.06.2020
I used this to replace the stoptail on my PRS SE Custom 24. The fit is perfect and there is a noticeable increase in sustain! However, when intonating one the strings, instead of moving the saddle forwards and back, the screw simply unscrewed itself from the bridge while the saddle sat still. This happened both with and without string tension on the saddle. To work around this issue I detensioned the string, turned the screw as much as I thought was necessary then, using the blunt end of some pliers, pushed the screw back into the bridge. The guitar is now intonated and, to be fair, none of the other saddles had any problems and sustain is good all-round.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report

All prices incl. VAT

Delivery free of charge expected between Fri, 25. September and Mon, 28. September
