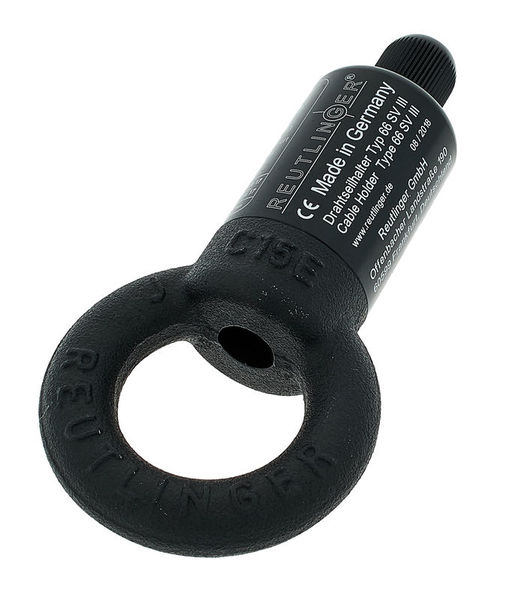

Reutlinger Type66 SVIII Ring







Wire Rope Holder with a Ring Eyelet
- These cable-holders have been specially designed for applications in which compliance with the accident prevention regulations and the DGUV regulation 17 (BGV C1) is in the foreground, such as stagings, trade fair stands, etc.
- Can be positioned without damaging the rope, no tools needed
- SWL (operating coefficient 10): 5 mm rope: 90 kg, 6 mm rope: 135 kg, 6,35 mm rope: 150 kg
- Diameter: 34 mm
- Length: 110 mm
- Ring (exterior diameter): 63 mm
- Ring (interior diameter): 35 mm
