the t.bone freeU PT 823 B-Stock

B-Stock with full warranty

Slight traces of use

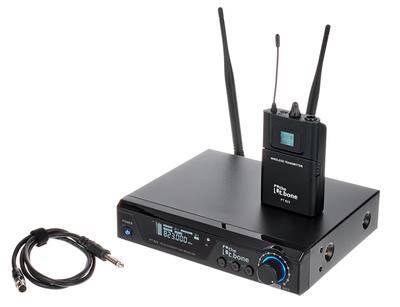

UHF Wireless System

  • With pocket transmitter and guitar cable for instrument applications
  • 60 - 17,000 Hz
  • 10 Preprogrammed frequency groups, each with 10 channels available
  • Auto squelch
  • Frequency scan built into the receiver
  • Adjustable AF Out
  • Transmitter power: 10 mW
  • Infrared transmits settings from the receiver to the transmitter
  • Pilot tone
  • 25 KHz Channel spacing
  • Modulation code: F3E
  • LCD display
  • 9.5", 1U Housing with 2x BNC connectors for antennas
  • XLR and jack output
  • Operates with 12V 0.5A DC power supply (+ internally)
  • Pocket transmitter in plastic housing
  • LCD display
  • Operates with 2x AA batteries or rechargeable batteries
  • Frequency band: 823 - 832 MHz
  • Incl. guitar cable
  • Antennas
  • EU power supply and rack kit for the installation of a receiver to 1U

Further Information

Frequency Band UHF
Diversity Yes
Switchable-Frequencies Yes
Removeable Antenna Yes
Pilot Tone Yes
Max. Amount of Channels 6
Battery Type (Transmitter) 2x AA

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

frequency range:
All information is without guarantee

104 €
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
