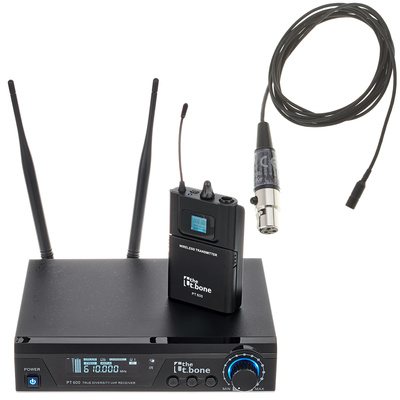

the t.bone freeU PT 600 BodymiKe B Bundle

Bundle offer comprising

the t.bone freeU PT 600

  • UHF Wireless System
  • Includes a pocket transmitter with a guitar cable for applications with instruments
  • Frequency band: 606 - 630 MHz
  • Frequency range: 60 - 17,000 Hz
  • 10 Pre-programmed frequency groups with 10 available channels each
  • Auto squelch
  • Frequency scan in the receiver
  • Adjustable AF output
  • Transmission power: 30 mW
  • Infrared transfer of the settings from the receiver to the transmitter
  • Pilot tone
  • Increments of 200 kHz
  • Modulation type: F3E
  • LCD display on the receiver
  • Housing: 9.5", 1U with 2 BNC connectors for antennas
  • XLR- and jack output
  • Operates with 12 V, 0.5 DC power supply (positive (+) polarity inside)
  • Transmitter housing: Plastic
  • Transmitter features an LCD display
  • Operates with 2 AA batteries or rechargeable batteries
  • Includes guitar cables, antennas, EU power supply and a rack kit for the installation of an 1 U receiver

Note: A maximum of up to 6 systems can be operated simultaneously in this frequency band.

the t.bone BodymiKe - Black AKG

  • Lavalier microphone
  • Light condenser lavalier microphone for speaking and music uses
  • Omnidirectional polar pattern
  • 50 - 20,000 Hz
  • 2.7 mV / Pa
  • -51.2 dB re 1 V / Pa
  • 125 dB SPL max.
  • 300 Ohm
  • 3-Pin TQG connector for AKG and t.bone wireless system
  • Colour: Black
  • Cable length approx. 120 cm
  • Incl. Cable clip and wind shield (optional replacement wind shield, Article Nr 355915)
available since August 2017
Item number 420983
sales unit 1 piece(s)
Capsule Type Condenser
Microphone Color Black
Receiver Type stationary
Frequency 606 MHz – 630 MHz
Transmission system Analog
Channels Lapel Microphone 1
Pattern omnidirectional
Diversity 1
Mic Model 349290
Receiver Width in mm 210 mm
Receiver Height in mm 44 mm
Receiver Depth in mm 170 mm
Receiver Weight in kg 0,8 kg
Transmitting Power in mW 30 mW
Selectable Frequencies 100
Switching Bandwidth in MHz 24 MHz
Frequency Display 1
Frequency Scan 1
Removable Antenna BNC
Battery Status Monitor 1
Output XLR
Charging System No
Rackkit Yes
Rackkit Art.-No. 335965
Antenna Mount Kit 177448
Splitter 314056
Show more
168 €
Free shipping incl. VAT
In stock within 7-9 weeks
In stock within 7-9 weeks

This item is expected back in stock soon and can then be shipped immediately.

Standard Delivery Times
1

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
