LD Systems Maui 11 G3 Mix Line Bundle

Bundle offer comprising

LD Systems Maui 11 G3 Mix

PA System

Compact plug-and-play column system with integrated digital 6-channel mixer
Digital 6-channel mixer with integrated effects and footswitch input
Power: 730 W RMS, 1460 W peak
Max SPL: 125 dB
Frequency range: 39 - 20,000 Hz
Dispersion pattern (H x V): 120° x 30°
Equipped with: 2 x 8'' subwoofers, 6 x 3.5'' full-range speakers and 2 x 1'' high-frequency drivers
Cardioid column for controlled dispersion in the low-mid and mid-range frequencies
BEM-optimised HF waveguide and phase plugs for homogeneous dispersion characteristics
Optimised bass reflex design for improved bass response and reduced flow noise
Can be combined with second MAUI 11 G3 subwoofer for extended low-end or cardioid subwoofer setup
New DynX DSP (Gen.2) for distortion-free playback even at maximum volume
Protective circuits: Short circuit, multiband limiter, protection against direct current, protection against overheating
Automatic setup detection for uncomplicated operation
Wireless streaming via Bluetooth 5.0 with AAC coding
Mic/Line / Hi-Z input: 2 x XLR / jack combo
Stereo line input: 2 x XLR / jack combination
Sub and System Out: XLR
Monitor Out: 2 x XLR
Simple and quick assembly without stands
Robust subwoofer enclosure made of birch multiplex with hard-wearing polyurea coating
Pillars made of lightweight aluminium with powder coating
Dimensions (W x D x H): 305 x 607 x 403 mm
Column speaker dimensions (W x H x D): 103 x 1460 x 135 mm
Weight of subwoofer: 21.3 kg
Weight column speaker: 10.2 kg
Total weight: 31.5 kg
Colour: Black

LD Systems Maui 11 G3

PA System

Compact plug-and-play column system for monitor and PA applications
Discreet look for unobtrusive applications
LD Systems DynX technology
Power: 730 W RMS, 1460 W peak
Maximum sound pressure level: 125 dB
Frequency range: 39 Hz - 20,000 Hz
Dispersion angle (H x V): 120° x 30
Equipped with: Two 8" subwoofers, six 3.5" full-range speakers and two 1" tweeters
Cardioid column for controlled dispersion in the low-mid and mid-range frequencies
BEM-optimised HF waveguide and phase plugs for homogeneous dispersion characteristics
Optimised bass reflex design for improved bass response and reduced flow noise
Can be combined with second MAUI 11 G3 subwoofer for extended low-end or cardioid subwoofer setup
Wireless streaming via Bluetooth 5.0 with AAC codec
XLR/jack combo line input
XLR system out
XLR sub out
PowerCon mains connection
Protection circuits: Short circuit, multi-band limiter, protection against direct current, protection against overheating
Automatic setup detection for easy operation
Simple and quick assembly without stands
Robust subwoofer housing made of birch Multiplex with hard-wearing polyurea coating
Columns made of lightweight aluminium with powder coating
Dimensions subwoofer (W x H x D): 305 x 607 x 403 mm
Dimensions satellites (W x H x D): 103 x 1460 x 135 mm
Weight of subwoofer: 20.5 kg
Weight of satellite (including spacers): 10.2 kg
Colour: Black

pro snake 70th Mic Cable 5m

Microphone Cable

Thomann 70th Anniversary Model
Exclusive edition
Length: 5 m
Robust and flexible cable for live and studio installations
Neutrik NC3 FXX-B 70 XLR plug < - > Neutrik NC3 MXX-B 70 XLR plug
5.9 mm PVC sheathing
Conductor diameter: 2x 0.22 mm (pure copper)
Colour: Black
Includes hook-and-loop fastener

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since August 2026
Item number 651812
Sales Unit 1 piece(s)
more than 150 people No
more than 300 people No
Incl. Mixer Yes
Incl. Subwoofer Yes
Active Speaker Yes
Line Array / Column Yes

2.080 €

All prices incl. VAT

109

Sales Rank

in DJ PA Sets

Sleek and powerful stereo PA

The LD Systems Maui 11 G3 Mix Line Bundle is a stereo column PA made up of two active units: a Maui 11 G3 Mix with an integrated digital mixer, and a standard Maui 11 G3 without one. The mixer is built into the subwoofer of the Mix system and takes care of volume, effects and dynamics, while Bluetooth 5.0 with the AAC codec means audio can be streamed straight to the system. Input-wise, there are four XLR-TRS combo sockets: two for microphones, line signals, or high-impedance instruments like guitars, and two for line-level signals only. This channel count is tailored to smaller set-ups: Singer-songwriters, solo entertainers and DJs get two channels for vocals, guitar, or announcements, plus a stereo line input for a keyboard, backing tracks, or a DJ controller. Performers who need more inputs – for a small band, say – will find them in the Maui 11 G3 Mix SysLink Bundle, which pairs two Mix systems. And since no single component weighs more than 21.3kg (about 47lbs), the set is easy to transport, while the slim black columns barely register visually at galas and receptions.

Clean stereo sound

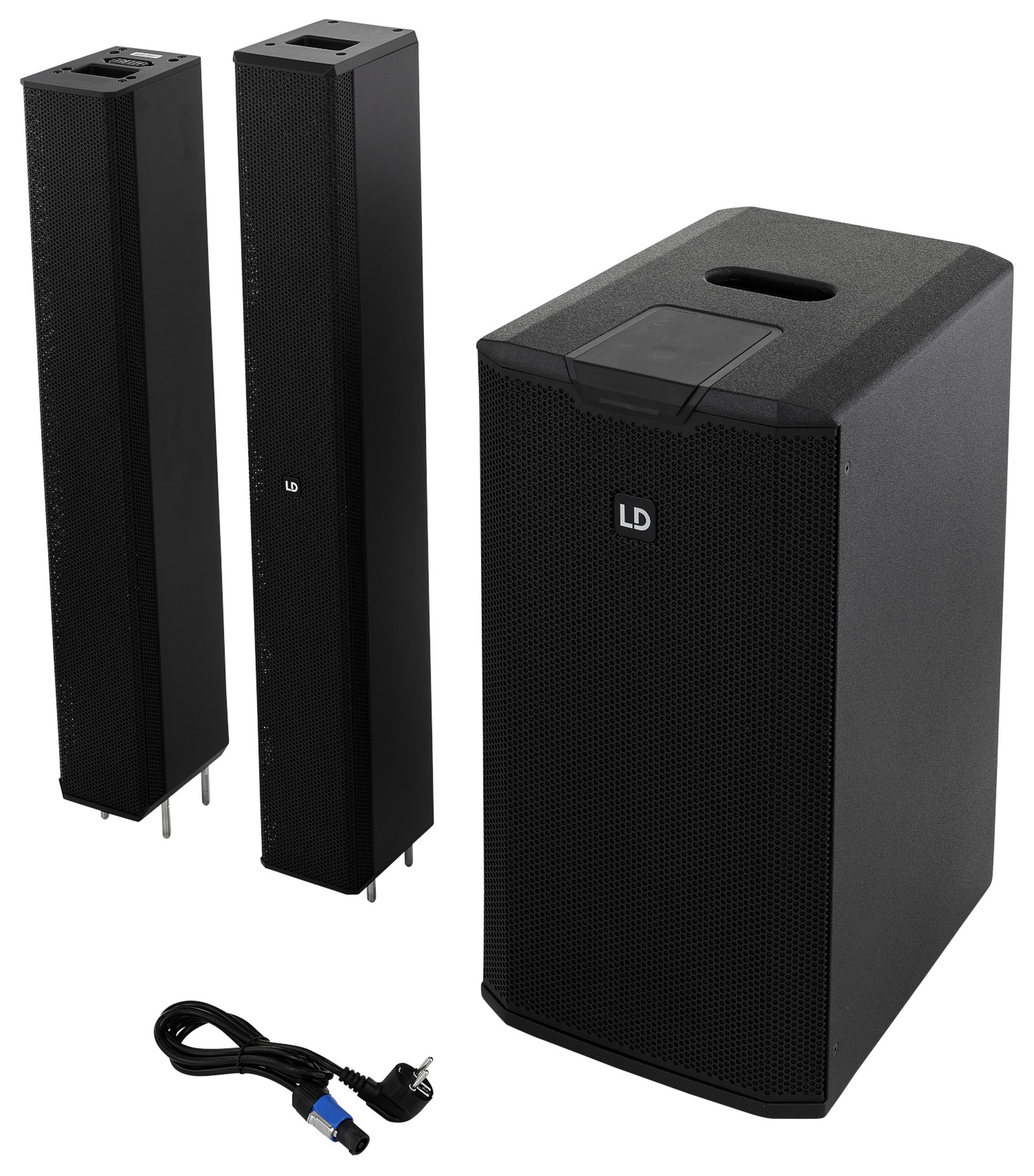

Both systems in the Maui 11 G3 Mix Line Bundle consist of three components: a subwoofer, a spacer and a column. Each subwoofer houses two 8" woofers that reach right down to 39Hz in their bass reflex cabinet, and the optimised design of their four bass reflex ports also reduces flow noise at high levels. Sitting on top of each subwoofer is a spacer with no drivers of its own: it raises the column to the right height and passes the signal up via multipin connectors. All six 3.5" full-range drivers and both 1" tweeters are housed in the powder-coated aluminium column. Its cardioid design works purely acoustically, through the construction of the housing, and attenuates sound to the rear by up to 18dB in the low mids and mids. That means less risk of feedback from open mics on stage and fewer reflections off the back wall.

Even coverage across the room

The tweeters in both columns of the Maui 11 G3 Mix Line Bundle fire into a waveguide whose shape was calculated using the boundary element method (BEM). It spreads the high frequencies evenly across the 120° horizontal dispersion angle, so listeners off to the side hear much the same amount of treble as those standing right in front. That's a real plus in wide rooms where the audience is spread out – at weddings or corporate events, for example. The narrow 30° vertical dispersion and the cardioid attenuation to the rear keep sound away from the ceiling and back wall, which is an advantage for readings, lectures, and quieter styles of music where every word of the lyrics counts. Each system delivers 730W RMS (1,460W peak) – enough for the kinds of gigs that DJs and smaller line-ups play, from wedding receptions in a function room to sets in bars and restaurants.

Flexible, safe and rugged

For transport, each system in the Maui 11 G3 Mix Line Bundle breaks down into its three parts. The subwoofers are the heaviest components, but both come with carrying handles, and their birch plywood cabinets with polyurea coating are built for frequent loading and unloading. Thanks to their powder-coated aluminium housings, the column and spacer of each system weigh just 10.2kg (about 22lbs) as a pair. Setting up is simply a matter of stacking the parts: The multipin connections carry the signal without any extra cables, and no speaker stands are needed. The two systems are connected using the 5m (16ft) pro snake XLR cable included in the bundle; for wider stages, simply swap it for a longer XLR cable. The subwoofers are around 60cm tall and the column and spacer measure 1.46m together, so each assembled system stands just over 2m (around 6ft 9in) – high enough for the sound to reach the back rows, even over a standing crowd. Protection circuits against short circuits, DC and overheating keep the electronics safe even during long sessions, such as hours of background music.

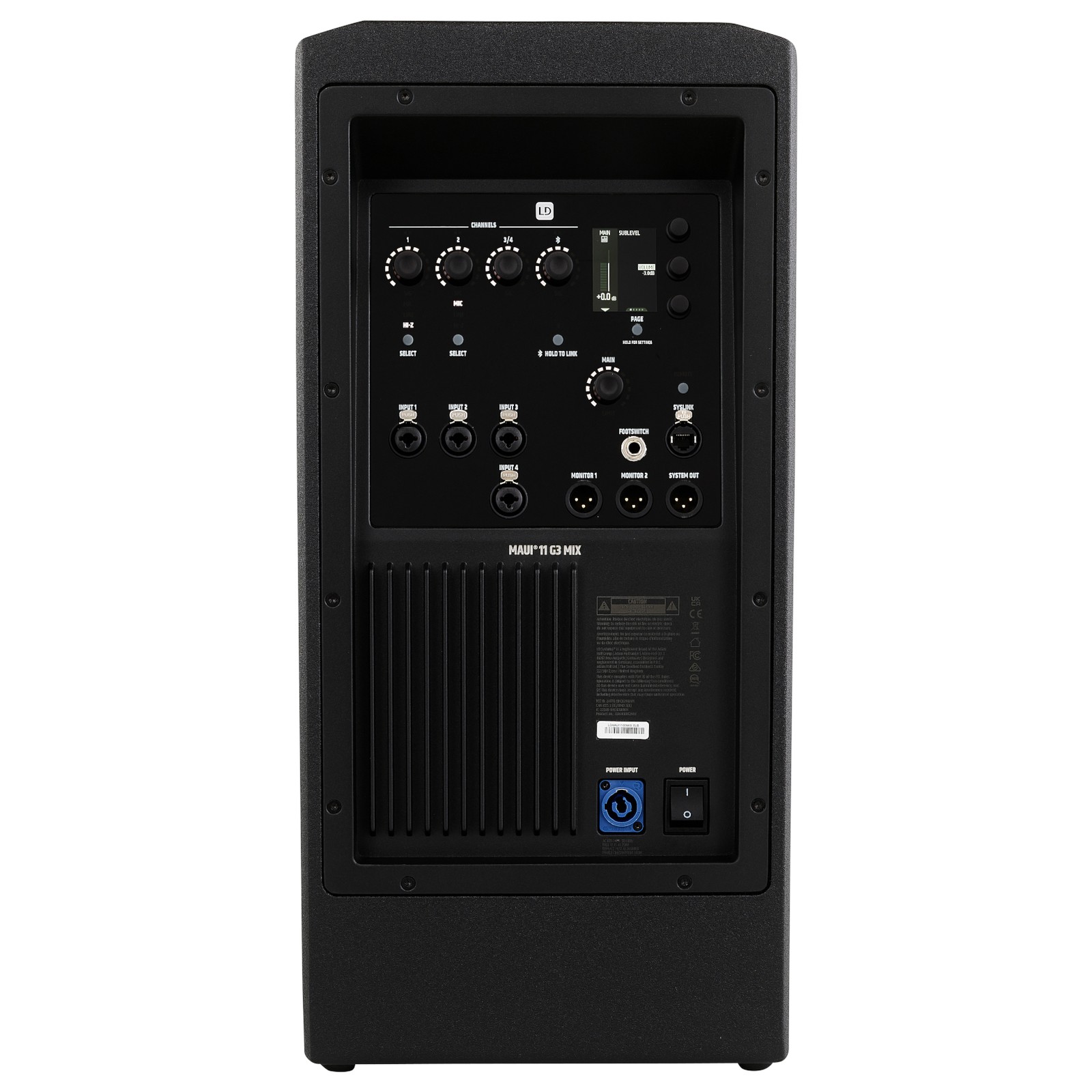

LD Systems Maui 11 G3 Mix, control panel

About LD Systems

LD Systems originated in Germany and is a brand of the Adam Hall Group. The company’s ambition is to give musicians the freedom they need to effectively express their musical ideas on stage. To achieve this, LD Systems has developed products that include affordable speaker series, wireless microphones, and in-ear monitoring systems. LD Systems attaches great importance to the durability and user-friendliness of its products. Right from the development stage, attention is paid to simple, intuitive, and effective operability. LD Systems also pays great attention to the design of its equipment, so that the technology is not only acoustically but also visually attractive. Accordingly, LD Systems has already been awarded several renowned design prizes.

Effects and DSP for optimum sound

Both systems in the Maui 11 G3 Mix Line Bundle use LD Systems' DynX DSP: FIR filters for the crossover and EQ keep the drivers phase-aligned with each other, and a multiband limiter ensures low-distortion reproduction even at high levels. Only the Maui 11 G3 Mix has the mixer, though, which is operated via the control panel on the back of the subwoofer or with the Maui app for iOS and Android. Depending on the mode – Easy or Expert – users get a 3-band or 5-band EQ. Alongside a compressor and gate for dynamics processing, the mixer offers a delay and a reverb that can be added to individual channels. 48V phantom power can be activated for the first two channels, so condenser mics are no problem either. Each input can be polarity-inverted, and channels can be given names and colours for a clear overview. The volume of the subwoofer and column can be set separately – useful for matching the bass level to the room. And with the app, event managers or artists can adjust the mix from out among the audience, where they hear exactly what their listeners hear.
