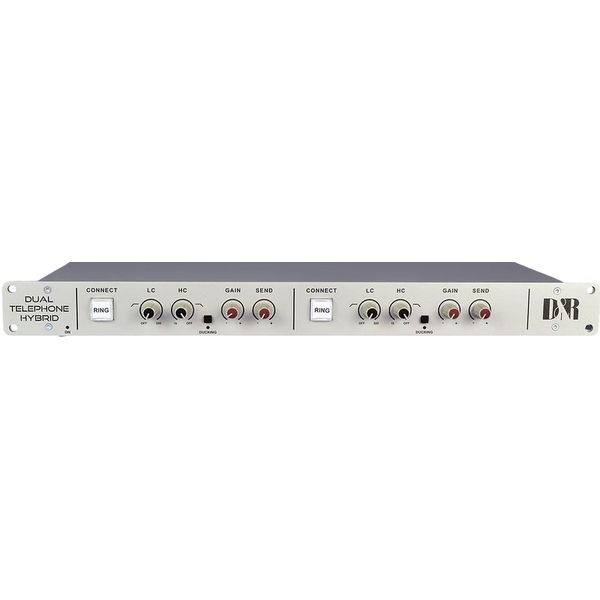

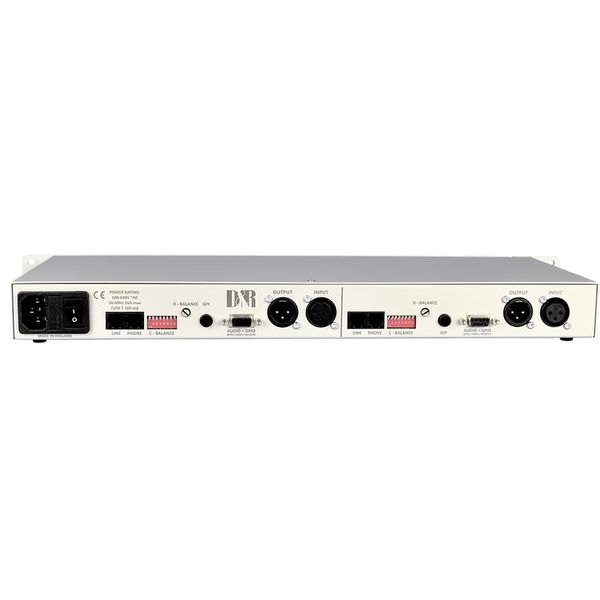

D&R Dual Telephone Hybrid-2
D&R Dual Telephone Hybrid-2; two-channel telephone hybrid for connecting telephone lines to professional audio systems; active analog hybrid with digital control for broadcast applications; two independent telephone lines with separate audio inputs and outputs; HD Voice support for AMR, WB, and G722.2 for improved voice quality; Integrated ducking function for automatic level reduction of the return signal; Adjustable high-cut and low-cut filters; Control for transmit and receive levels per channel; GPIO interface for remote control and integration with mixing consoles; USB interface for control via PC software; Audio frequency range: 20 Hz to 15 kHz; Maximum level: +26 dBu input and output; Power supply via internal power supply 90 V to 245 V AC or 12 V DC external; Connectors: RJ-12 for telephone line and handset, 2x XLR input and output; Dimensions: 19" / 1U; Weight: 2.5 kg
-
Item number 648890
-
Sales Unit 1 piece(s)
-
Clock Generator No
-
Format converter No
-
Unbalanced- To- Balanced Converter No
-
Telephone Hybrid Yes
-
Encoder/Decoder No
-
Miscellaneous Hybrid
