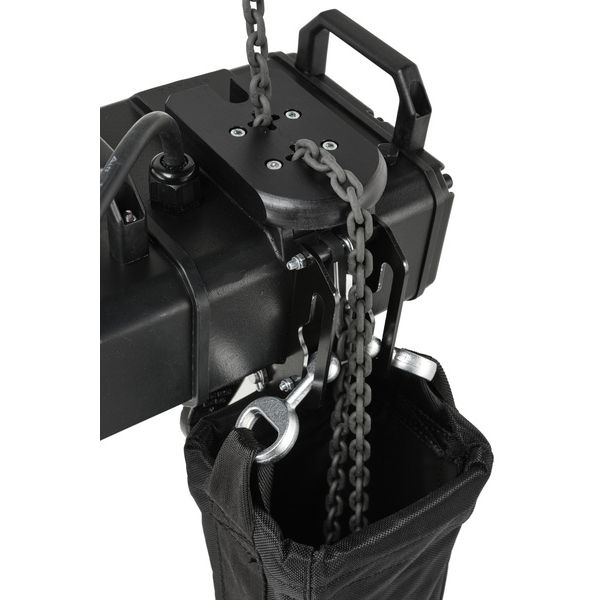

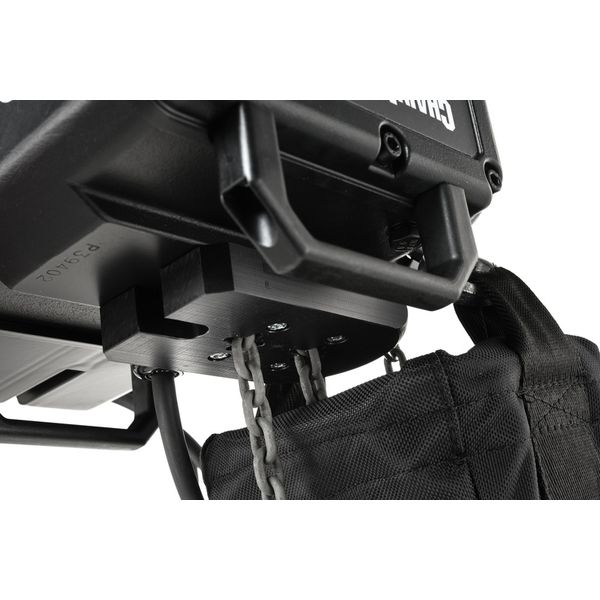

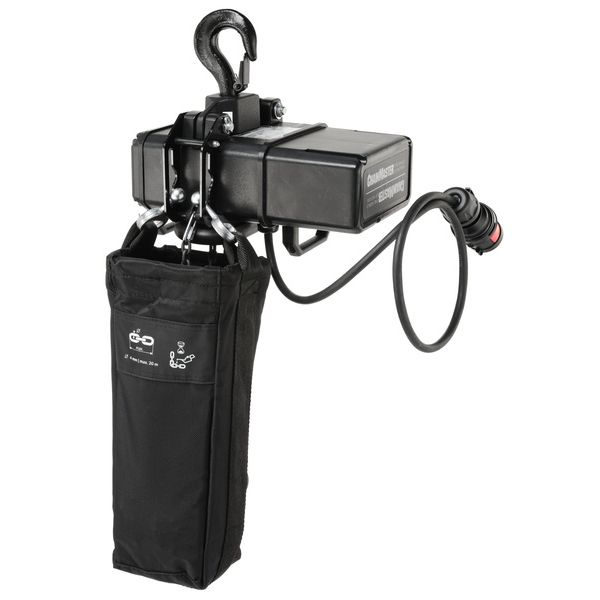

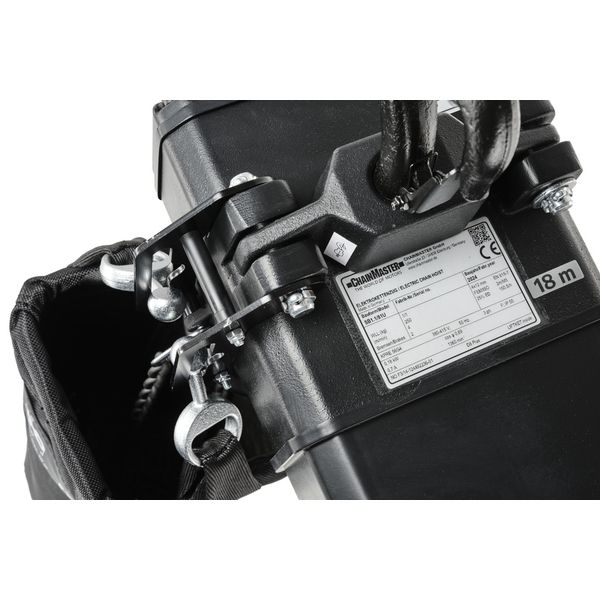

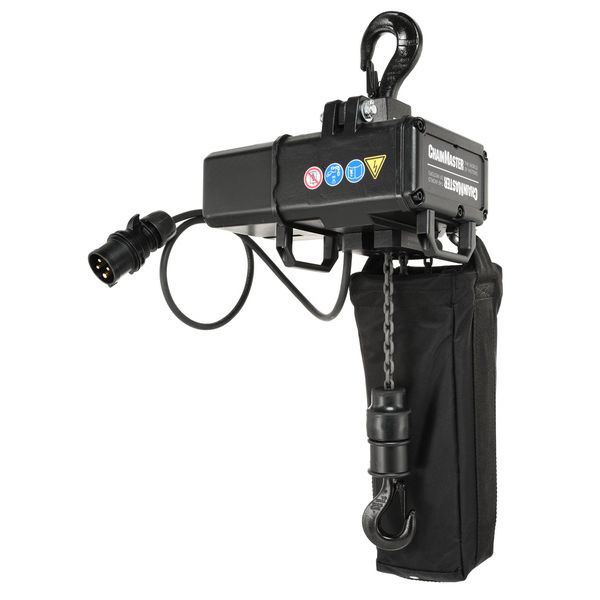

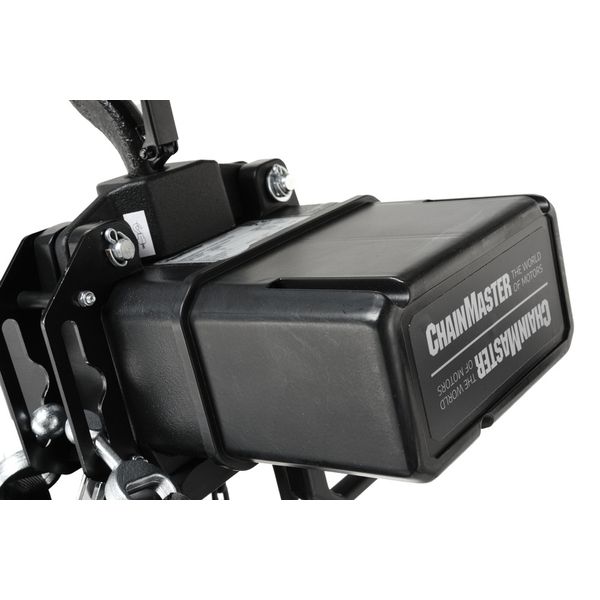

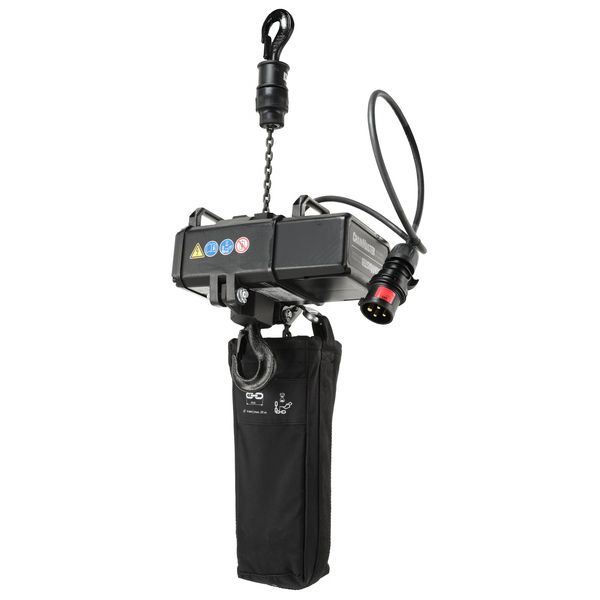

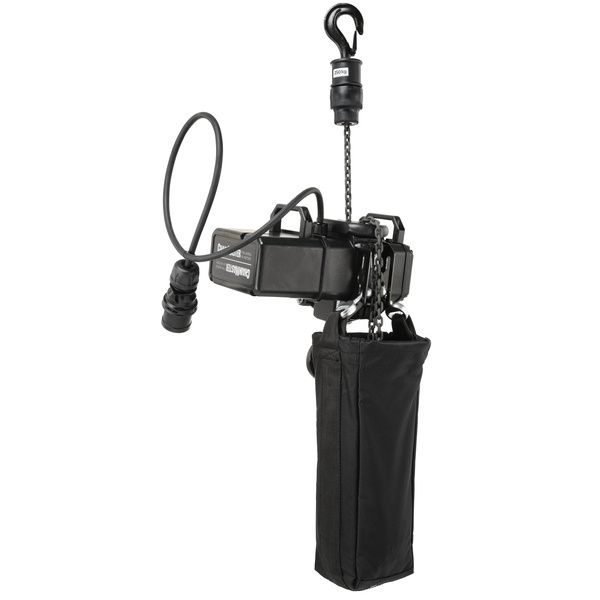

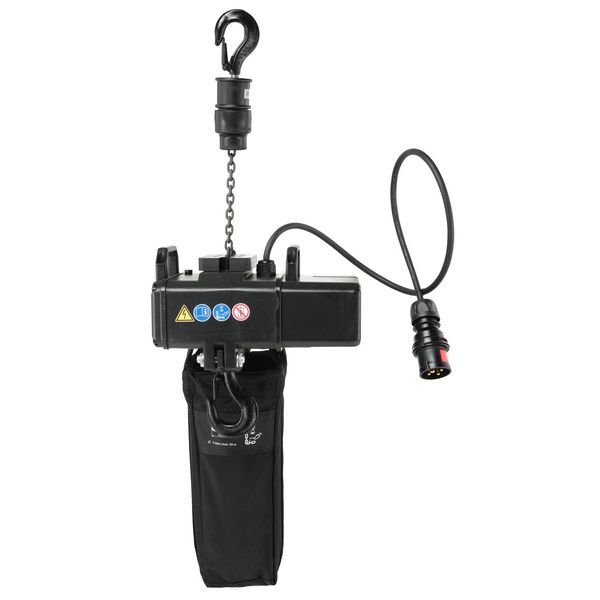

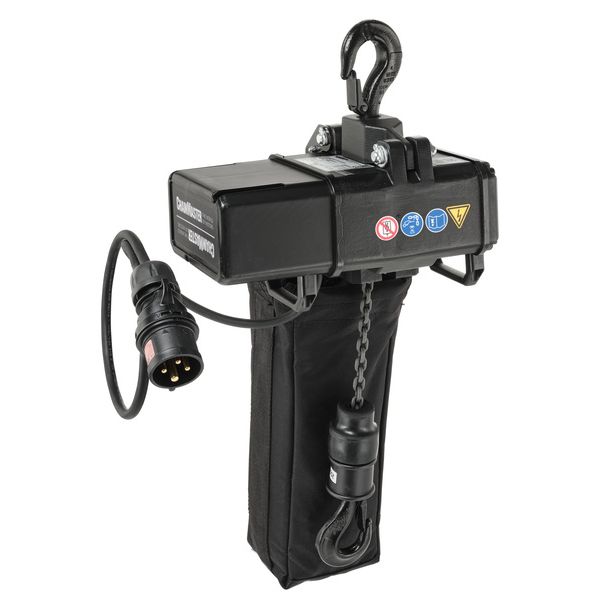

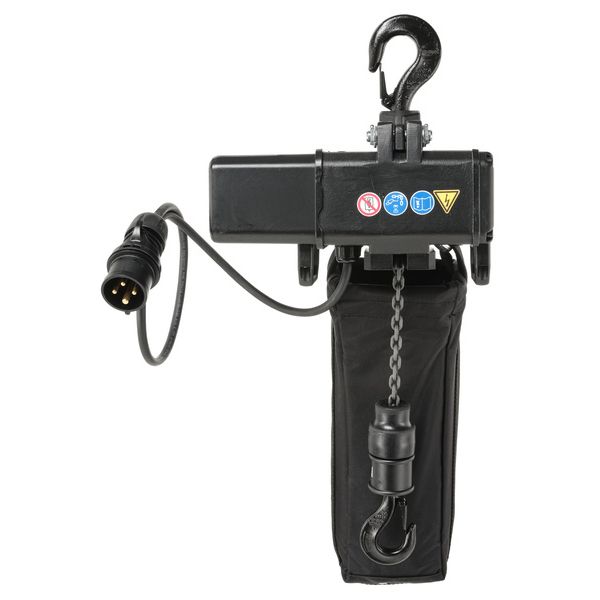

ChainMaster D8+ Ultra DC 250kg 18.75m H-H

Arată traducerea

Electric Chain Hoist

Hoist standard: D8Plus (2nd brake, load reduction 50%)
Suspension in hook-to-hook design
Direct control
2 DC brakes
Maintenance-free design
Use in normal or climbing position
Low noise emission
Two handles

Technical specifications:

Model designation: SB1.1 / 81U
Lifting speed: 4 m/min
Load capacity: 250 kg
Load strands: One

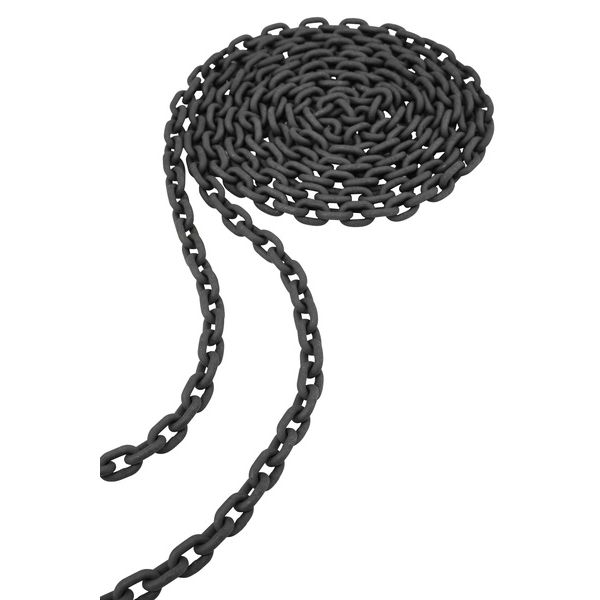

Load chain according to EN 818-7: P4 x 12 mm (profile steel)
Chain length: 18.75 m

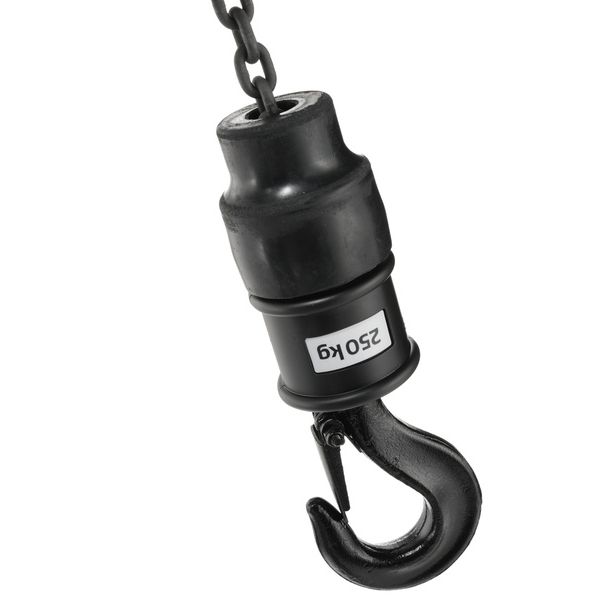

Suspension: swivel hook

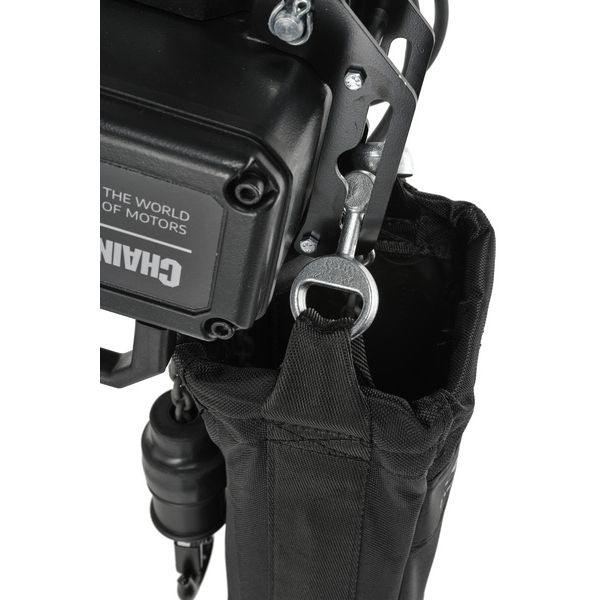

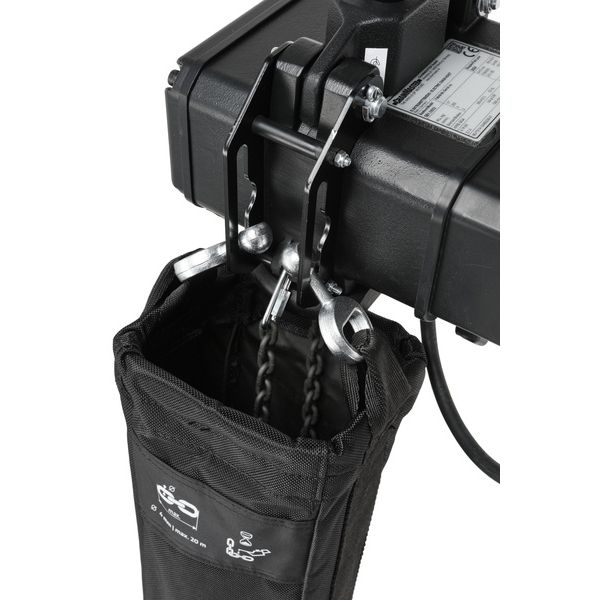

Chain storage 4/20
Weight (without chain): 16 kg
Chain weight: approx. 0.35 kg/m
Motor power: 0.18 KW
Operating voltage: 3 - 400 V / 3 - 230 V

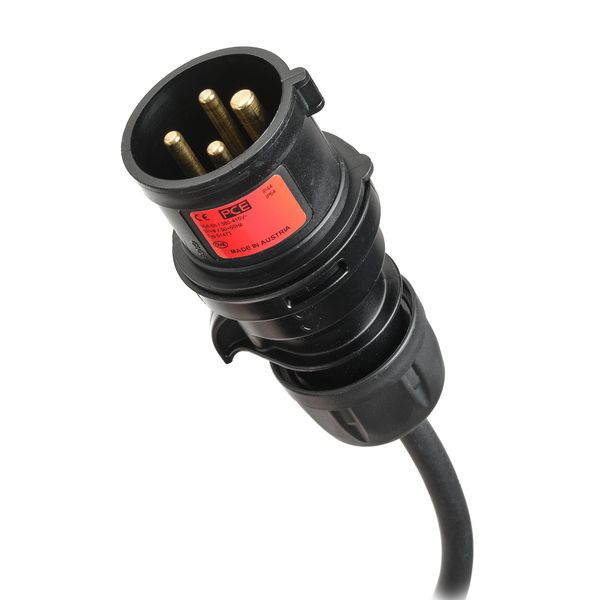

1m CEE-16/4 connection cable
Protection rating: IP655

Note:

Each chain hoist is factory tested, with the results recorded in the crane logbook. The declaration of conformity and the CE marking attached to the chain hoist are valid only when the unit is operated with phase-reversal controls that meet at least the following standards: DIN 60204-32, EN 13849-1, and SQP2 Section 4.1.1. If these standards are not met, the supplied installation declaration shall apply instead.
