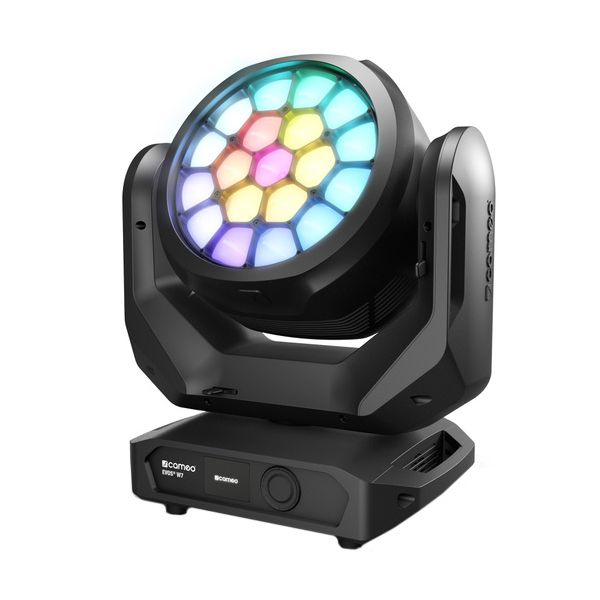

Cameo EVOS W7

LED Wash Moving Head with Single Pixel Control and Beam Shaper for Asymmetrical Beams

• Individual control of all LEDs (single-pixel control)
• Includes a beam shaper for asymmetrical shaping of the light beam
• LED type: 19 x 40 W RGBWW LEDs
• Luminous flux: 12,500 lm
• Illuminance: 96,000 lx @ 1 m
• Dispersion angle/zoom: Beam 4.5° – 34° / Field 7°–55°
• Colour rendering index: CRI > 94
• LED PWM frequency: 800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz
• Movement: Pan 540° / Tilt 270°
• Effects: Single-pixel control / strobe 0 – 20 Hz / zoom / colour presets (LEE filters) / motion macros / beam shaper
• Protocols: DMX512, RDM, Art-Net, sACN
• Number of DMX channels: 16/18/23/33/43/97
• DMX inputs and outputs: 3-pin and 5-pin XLR connectors
• Voltage supply: 100 – 240 V, 50/60 Hz
• Power consumption: 900 watts
• Power connection: Power Twist TR1
• IP protection rating: IP20
• Housing material: ABS, nylon, polycarbonate
• Temperature-controlled fan cooling
• Dimensions (W x H x D): 42.1 x 25.7 x 48.3 mm
• Weight: 23 kg
• Housing colour: Black
• Includes one beam shaper, two Omega brackets and a 1-metre power cord
