Botex ART-4

1

DMX and LED Control Panel

  • Control of RGBW spotlights with DMX signal and e.g. LED strips over PWM
  • Output of DMX and PWM
  • Intuitive operation thanks to touch-sensitive buttons with lighting
  • Four storable scenes and four storable colors
  • 10 Integrated colour programs with adjustable speed
  • Adjustable total intensity
  • Definable fade time from 0 to 4 seconds when switching on and changing colours
  • Link input and output for networking up to 32 control panels within a building
  • DMX Patch is preconfigured with RGBW channels (red: 1, 5, 9th / green: 2, 6, 10th / blue: 3, 7, 11 / white: 4, 8, 12th)
  • High-quality housing made of aluminum with a glass surface on the front
  • Power supply: DC 12 - 24 V
  • An external power supply is required for use (not included)
  • Power consumption (depending on the connected load): 2A / channel, max. 6 A in total

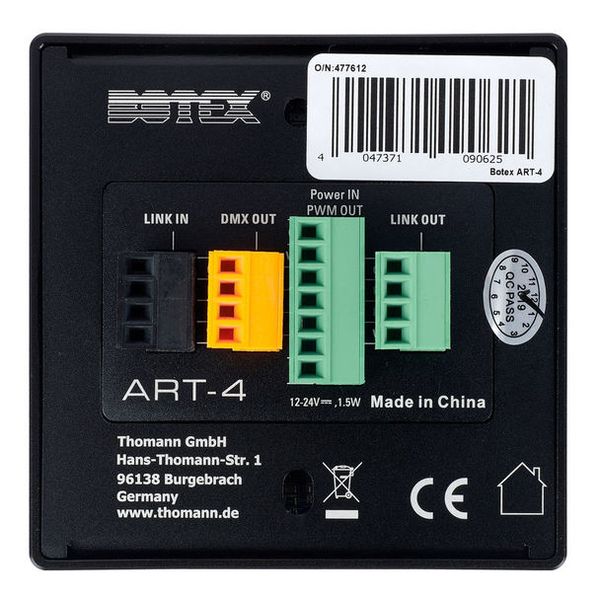

  • Power input and PWM output: 7-pin terminal
  • DMX output: 4-pin terminal
  • Dimensions: 85 x 85 x 15.5 mm
  • Weight: 100 g
Preset Function Yes
External Storage No
DMX - Universes 1
max. Channels 512
Ethernet No
disponibil din Februarie 2020
numărul articolului 477612
unitate de vânzare 1 bucată(ăţi)
Construction Type Controller
Colour mixing RGBW
Mai mult
68 € 335,99 lei
Include TVA la care se adaugă 19,90 € costul de transport
Prețul în lei este doar de ghidaj!
în stoc
în stoc

Acest articol este disponibil în stoc și se poate expedia imediat.
