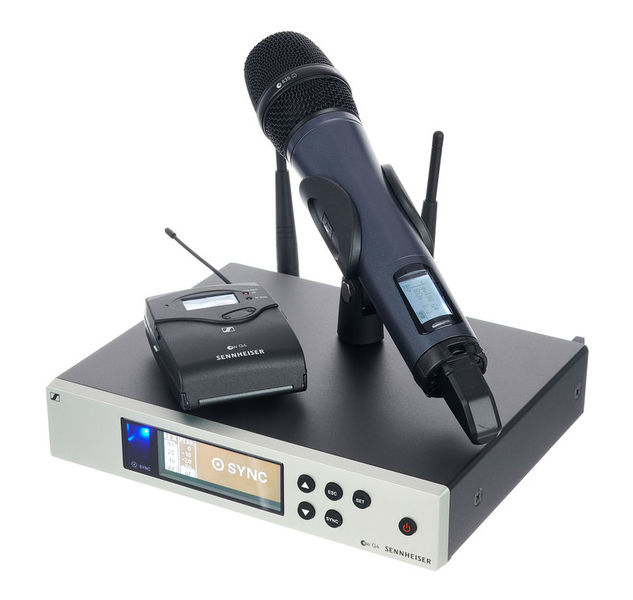

Sennheiser ew 100 G4-ME2/835-S E-Band

1

UHF Wireless System

  • System consists of the following: SKM 100 G4-S handheld transmitter with mute switch, E835 interchangeable capsule, SK 100 G4 pocket transmitter, ME 2-II lavalier condenser microphone, EM 100 G4 9.5" receiver
  • Frequency range: E-Band (823-865 MHz)
  • Includes a rackmount, RJ10 connecting cable, microphone mount, NT2 power supply, and 2x AA batteries

Features of the SKM 100 G4-S handheld transmitter with E835 interchangeable capsule:

  • Dynamic
  • Directional characteristic: Cardioid
  • Handheld transmitter with charging contacts for optional BA 2015 battery (NiMH)

Features of the ME 2-II condenser lavalier microphone:

  • Directional characteristic: Omnidirectional

Features of the EM 100 G4 9.5" receiver:

  • 42 MHz switching bandwidth
  • Up to 12 compatible channels
  • Fast frequency allocation for up to 12 receivers via link function with RJ10 connecting cable
  • Frequency response: 25-18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional BA 2015 battery (NiMH)
  • Pilot tone
  • Automatic frequency scan feature locates available frequencies
  • Integrated EQ
  • Audio gain: 60 dB
  • Soundcheck mode
  • 4-Digit battery indicator on the transmitter and receiver
  • HDX compander
  • LCD display with RF/AF levels and channel display
  • Transmission power: 10 mW
  • 2 BNC antenna sockets
  • XLR male (balanced) and jack (unbalanced)
  • Power supply: 10.5 - 16 V DC

Note: Parallel operation is not possible. Only one transmitter is included.

Disponível desde Junho 2018
número de artigo 434536
unidade de venda 1 peça(s)
Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Dynamic/Condenser
Pattern Bidirectional/Cardioid
Receiver Type Stationary
Frequency 823 MHz – 865 MHz
Output XLR
Charging System Optional
Integrated Battery No
Diversity 1
Mic Model 141999
Microphone Color Black
Interchangeable Capsule 1
Receiver Width in mm 212 mm
Receiver Height in mm 43 mm
Receiver Depth in mm 202 mm
Receiver Weight in kg 1 kg
Transmitting Power in mW 10 mW
Selectable Frequencies 238
Switching Bandwidth in MHz 42 MHz
Frequency Display 1
Frequency Scan 1
Removable Antenna BNC
Battery Status Monitor 1
Rackkit Yes
Rackkit Art.-No. 230324
Antenna Mount Kit 167045
Splitter 442091
Rackkit (Art. No.) 230324
Transmission system Analog
Antenna Rackmount Kit 167045
Channels Lapel Microphone 1
Mostrar mais
€ 1.039
Envio gratuito, IVA incluído
Disponível em 4-5 semanas
Disponível em 4-5 semanas

É previsível que este artigo entre brevemente e stock e o despacho poderá ser feito de imediato.

Informações sobre o envio
1

Informação das gamas de frequência suportadas

Aqui pode ver quais as frequências suportadas por este sistema sem fios e os países cujas frequências serão permitidas para aplicações sem fios no futuro.
