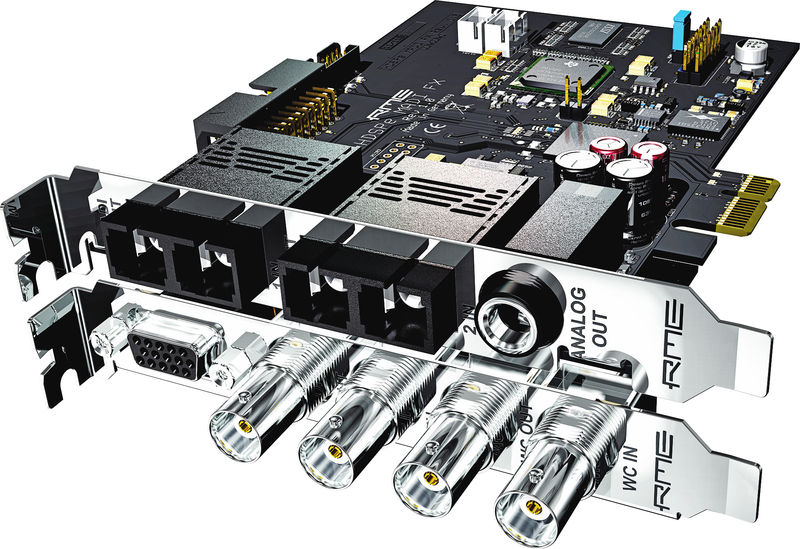

RME HDSPe Madi FX

PCI Express sound card

  • MADI: 194 input and 194 output channels
  • Analogue output: 2 channels (6.3 mm stereo jack, monitoring or headphones)
  • 4096-channel mono matrix router
  • MADI optical <> coaxial converter functionality
  • AES / EBU interface for direct integration of AD / DA devices
  • Extremely low latencies
  • Sample frequencies up to 192 kHz
  • Includes SteadyClock for maximum jitter suppression
  • Including DIGICheck analysis and metering tool (EBU R128 compatible)
  • Including TotalMix FX
  • The variable real-time mixer and signal router with 42 bits internal
  • Resolution and integrated onboard DSP effects - Latency-free monitoring (EQ, Dynamics, AutoSet and Reverb / Echo)
  • 2x MADI I / O optically
  • 1x MADI I / O coaxial
  • 1x AES / EBU I / O
  • 1x stereo analog out
  • 1x wordclock I / O
  • 1x MIDI I / O over 5-pin DIN
  • 3x MIDI I / O via MADI

Informações adicionais

Converter 24 bit/192 kHz
Microphone Inputs 0
Phantom power No
Number of instrument inputs 0
Line Inputs 0
Digital Inputs MADI
MIDI interface Yes
SYNC Yes
Analogue Outputs 1
Digital Outputs MADI
Headphone jack Yes
Zero latency monitoring Yes

Estas são outras escolhas de clientes:

Os clientes que viram este artigo adquiriram os seguintes:

RME HDSPe Madi FX
57% compraram este artigo
RME HDSPe Madi FX
Disponibilidade imediata
Disponibilidade imediata

Este artigo encontra-se em stock e pode ser enviado imediatemente.

Informações sobre o envio
€ 1.490 Para a cesta de mercadoria
RME HDSPe RayDAT
21% compraram RME HDSPe RayDAT € 589
RME HDSPe MADI
6% compraram RME HDSPe MADI € 1.444
RME HDSPe AES
4% compraram RME HDSPe AES € 985
Focusrite RedNet PCIe R Card
2% compraram Focusrite RedNet PCIe R Card € 1.111
Os nossos mais populares Interfaces de áudio PCI Express
12 Classificações de clientes:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • manuseio
  • características
  • som
  • acabamento
Comentários para este artigo estão ainda apenas disponíveis noutra língua
gb Traduzido automaticamente (Mostrar original)
gbReview original (Mostrar tradução)
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
Total
acabamento
características
manuseio
som
Still the card to beat
North London, 20.11.2020
I cannot believe this was released back in 2012. It is still the best high I/O card on the market. MADI still rules in 2020 as far as high track count is concerned and I am going to install at least one more of these into my system for hooking up my many analogue and digital I/O.

Driver support is brilliant although RME should change their stance and start releasing Linux drivers! Nobody is asking for them to be open source - if you need the features of the card then you will be prepared to accept closed source drivers.
Útil · Não útil · Reportar a crítica
Denunciar classificação…

Acredita que esta classificação seja por alguma razão imprecisa ou incaceitável?

Reportar
gb Traduzido automaticamente (Mostrar original)
gbReview original (Mostrar tradução)
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
Total
acabamento
características
manuseio
som
Live shows recording
NikolayS, 06.11.2013
I've had many requests to record live shows. With RME it's possible. I've used it with Soundcraft VI6 and DiGiCo SD8. So, recording multichannel live show from the desk is not even an issue. It works just fine, I've never had any digital errors or word clock errors and sound quality is awesome
