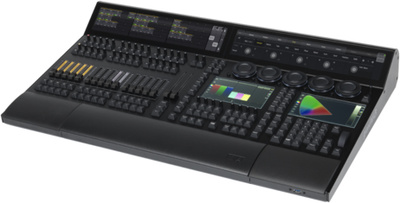

MA Lighting grandMA3 light CRV

Light control panel

  • Real-time control of up to 250,000 parameters per session in combination with grandMA3 processing unit
  • 6 DMX outputs
  • 1 DMX input
  • 2 Internal letterbox multi-touch screens
  • 2 Internal multi-touch command screens
  • 4 External multi-touch screens can be connected
  • 41 Rotatable RGB back-lit encoders
  • 5 Backlit dual encoders
  • 15 Motorized and back-lit 60 mm faders
  • 60 Independent playbacks
  • 16 Assignable x-keys
  • Integrated keyboard drawer
  • Built-in uninterruptible power supply (UPS)
  • 2 Backlit and motorized A/B 100mm faders
  • Individually backlit, dimmable and low-noise (clickless) buttons

Technical data:

  • Parameters: 8,192 (HTP/LTP)
  • Parameter Mode2: 4,096 (HTP/LTP)
  • Supply voltage: 100-240 V / 50/60 Hz
  • Capacity: Maximum 300 VA
  • Dimensions (W x D x H): 811 x 539 x 169 mm (drawer closed)
  • Weight: 25 kg

Connections:

  • 1x Power-twist TR1
  • 3x etherCON/RJ45
  • 6x DMX512-A Out (5pin XLR female)
  • 1x DMX512-A In (5pin XLR male)
  • 1x MIDI In (5pin DIN female)
  • 1x MIDI Out (5pin DIN female)
  • 1x Linear timecode In (3pin XLR female)
  • 1x Audio In (3pin XLR female)
  • 1x GPI General purpose interface (D-SUB DE9 female) for remote control
  • 4x DisplayPort 1.2 for external screens
  • 2x S/PDIF In and Out
  • 3x USB 2.0 (Type A)
  • 3x USB 3.0 (Type A)
  • 2x LED desk light (4pin XLR female)

Included in delivery:

  • 1x Dust cover
  • 2x MA LED desk light
  • 1x MA magnetic plate for marking 15 faders

Informações adicionais

Preset Function Yes
External Storage Yes
DMX - Universes 6
max. Channels 8192
Ethernet Yes
