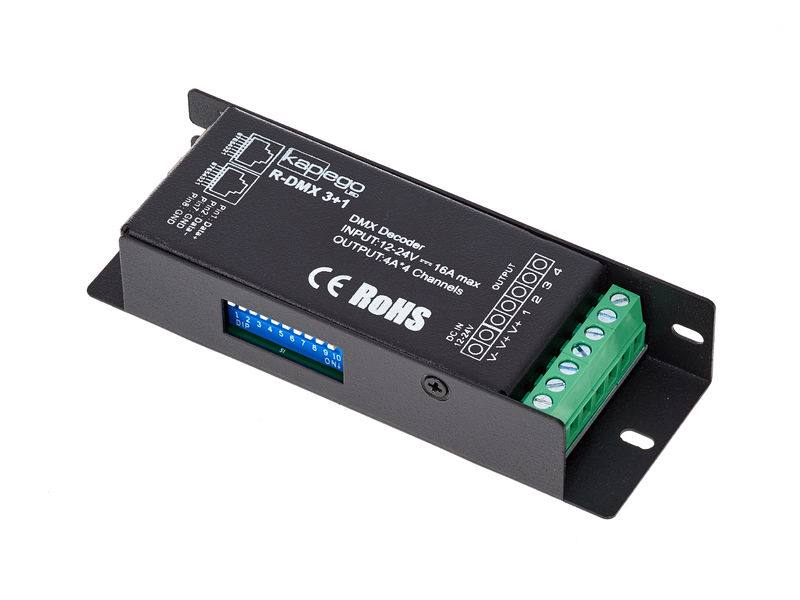

KapegoLED R-DMX 3+1 Driver for LED

Power Supply and Addressing Unit for Kapego LED Products

  • Device connection via 4 wires (R, G, B, V +)
  • It is DMX-addressed via Dipswitch and controlled with the DMX512-Driver
  • A power supply unit must be connected to the power supply (not included)
  • Matching DMX adapter cable available under: Article Nr 324327 and Article Nr 324326 (both not included)

Technical data:

  • DMX Channels: 4 (RGB + 1)
  • Input signal DMX512 or 1990 digital signal
  • Output 0 -.24V PWM
  • 5A per channel
  • Power supply: Power supply with 12 - 24V DC
  • Output Power: 384 W
  • Operating temperatures: 0°C - 70°C

Informações adicionais

Construction Type Controller
