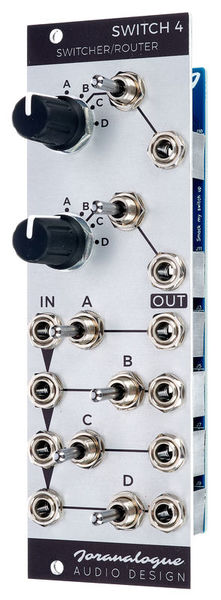

Joranalogue Audio Design Switch 4

Eurorack Module

  • Performance switcher and router
  • 4 Inputs and outputs for audio and CV signals
  • 3-Way toggle switch per channel (pushbutton / off / switch)
  • Normalised inputs A-D
  • Input A normalized to +5 V to generate manual trigger and gate signals
  • Upper section with 2 outputs and selectable input A-D via rotary switch
  • Power requirement: 25 mA (+12 V) / 25 mA (-12 V)
  • Width: 8 HP
  • Depth: 43 mm

Informações adicionais

Switch Modul Yes
CV-Editor/VC-Processor Yes
Tools Yes
Width 8 TE / HP
1 Classificações de clientes
  • 5
  • 4
  • 3
  • 2
  • 1
3 /5
  • manuseio
  • características
  • acabamento
Comentários para este artigo estão ainda apenas disponíveis noutra língua
gb Review original (Mostrar tradução)
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
Total
manuseio
características
acabamento
inaccessible switches
arnorhs, 19.08.2020
The biggest problem with this module is how inaccessible the switches are. I probably need different kind of cables just to connect to this module, since you have to squeeze your fingers between the cables to use them. if the ins and outs were next to each other or something like that it would be a lot better.
