ETC S4WRD Gallery Retrofit Kit

Led Retrofit Kit

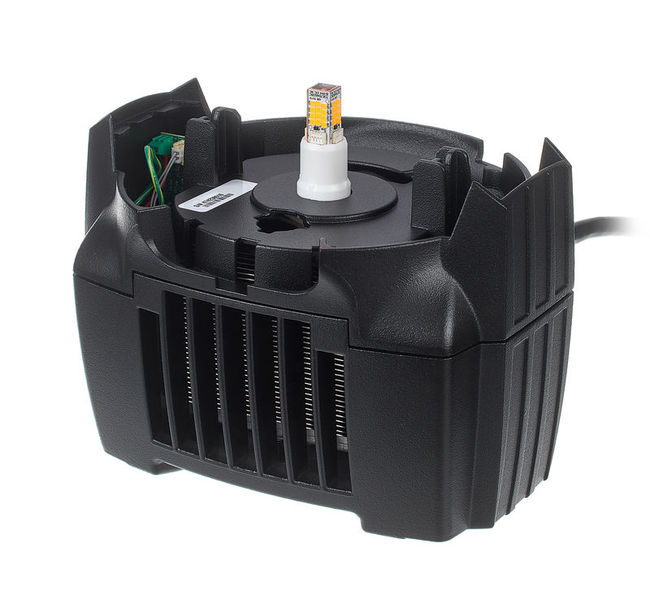

ETC Source 4WRD LED (Watt Reduction Device) is a replacement for a standard source four burner assembly, which converts the HPL light source into a white light LED. The quick and easy conversion is nondestructive and takes less than a minute (in most cases it can even be done without changing the focus of the device). Source 4WRD LED can be dimmed theatrically via DMX, and is also line-dimmable with a conventional LED curve. Designed to convert any Source Four to LED (not for Source Four PAR / Nel Fresnel or JR). The output power is just as bright or brighter than that of a 575 W HPL lamp with a longer service life, lower energy costs, less heat emission and no lamp replacement.

  • Robust construction made of die-cast aluminium
  • Seven-segment display for easy DMX setup
  • Two-button user interface
  • Includes detached 1 m cable (without plug)

Technical specifications:

  • LED type: 4 x Cree LEDs
  • Colour temperature: 3200 K
  • Max. Luminous flux: 7440 lm
  • Colour rendering index: 90+
  • Beam angle: Dependent on the lens tube used (available separately)
  • Power supply: 209 - 252 V 50 Hz
  • Power consumption: 175 W
  • Number of DMX channels: 1
  • DMX connector: DMX input and output via RJ45 connection
  • Quiet fan cooling (28 dBa @ 1 m)
  • Protection: IP20, for indoor use only
  • Dimensions (H x W x D): 142 x 178 x 160 mm
  • Weight: 1.69 kg

Important: The LED lamp is fragile and must not be touched!

Informações adicionais

Light source LED
Colour mix / Colour temperature 3000
Fanless No
Zoom No
Beam angle 0 °
