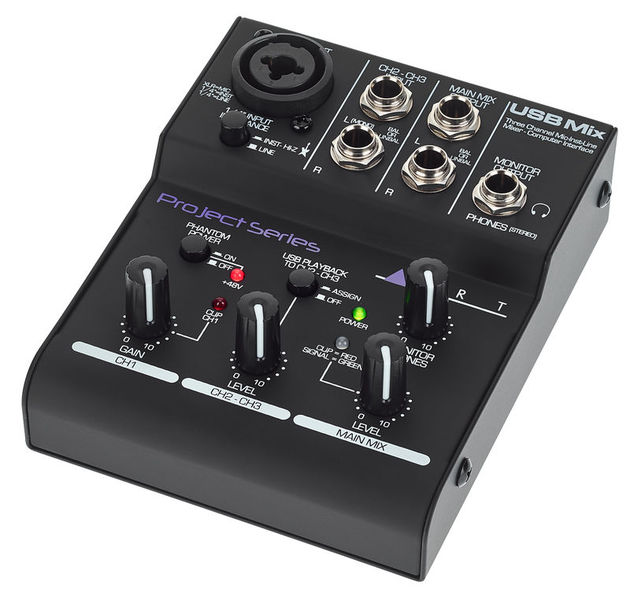

ART USB Mix

24

3-Channel small mixer and USB audio interface

  • Inputs: XLR balanced mic input, instrument jack input 6.3 mm, stereo line jack input 6.3 mm (mono usable)
  • Outputs: 6.3 mm Jack stereo output, headphone output
  • Switchable phantom power: 48V
  • LED for signal / clip display
  • USB bus-powered
  • 44.1 / 48 kHz
  • 16-Bit
  • Incl. USB cable and power supply
  • Dimensions: 41 x 101 x 121 mm (HxWxD)
  • Weight: 0.5 kg
Recording / Playback Channels 2x2
Number of Mic Inputs 1
Number of Line Inputs 3
Number of Instrument Inputs 1
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 48 kHz
Max. resolution in bit 16 bit
USB Bus-Powered Yes
Incl. power supply Yes
USB Version 2.0
Width in mm 101 mm
Depth in mm 121 mm
Height in mm 41 mm
Disponível desde Abril 2012
número de artigo 282046
unidade de venda 1 peça(s)
Width 101 mm
Depth 121 mm
altezza 41 mm
Height 41 mm
Weight 0,5 kg
Parallel usable Channels 2
Simultaneous channels 2
Mic Ins 1
Mic-In 1
Mono Line Ins 1
Mono Line-in 1
Stereo-In 1
Stereo Ins 1
Hi-Z Input 1
Phantom Power 48V
Master Out 6,3 mm bal.
Aux Ways 0
max. Pre Aux Channels 0
Number of Pre Aux max. 0
PC Interface USB-B
Interface Input 3
Interface Output 3
USB/SD Direkt Record No
USB/SD Direct Recording No
Rec Out (Analog) 1
FX Processor 0
Effect Processor 0
USB Play No
Bluetooth Play No
Lamp Connector No
Lamp connection No
Included in delivery USB cable
Footswitch No
Foot Switch No
Bag No
Zero latency monitoring 1
Zones 0
19" Rackmount No
Rackmount No
110V Power Supply No
Thomann Case No
Thon Case No
Gigbag No
Mostrar mais
B-Stock from € 86 disponível
€ 99
IVA incluído, € 20 de portes de envio adicionais
Em stock
Em stock

Este artigo encontra-se em stock e pode ser enviado imediatemente.

Informações sobre o envio
Envio previsto até Terça, 18.01.
1
285 Posição de vendas

17 Customer Reviews

google translate gb
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
FW
A very good little mixer/interface
Fredrik W. 07.10.2014
I've used this mixer for around a mounth now, and I'm very pelased. I needed a good interface that works with Linux, allows me to practice bass playing while listening to a backing track, and has separate pots for headphones and line out (I use this for active monitors). This satisfies all those demands, and more. It also works as a recording interface (though I haven't tried this yet).

PROS:
- Works with Linux straight out of the box (Ubuntu at least)
- Sturdy quality, all metal housing, small size
- Completely silent, no hiss or hum
- Runs on USB power (power supply still included though)
- Balanced inputs and outputs
- Hi-Z/line input selector

CONS:
Only one missing feature: An additional control for panning between channel 2 and 3 would make this into a true 3 channel mixer. Now you have to set the levels at the source, which might be bothersome in some situations.
1
0
Reportar a crítica

Reportar a crítica

google translate gb
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
Mf
A fine USB interface flawed by poor product design
Man from Space 15.06.2021
Please notice this is not a USB audio interface. This is a mixer with a USB port stuck in the back. Anything that goes to the inputs goes to the monitor and main outputs. You can't send anything to the DAW and use the monitor output for anything else.

For example, you can't record a singer while sending her a backing track thru headphones. She's going to hear herself. And you can't even control the volume at with she hears herself, because that will affect the intensity of the recorded signal as it's received by the DAW.

Everything else in this mixer is correct, well built, solid. But not taking the digital part seriously makes this mostly useless as a USB audio interface. Not if you plan to record anything properly.
acabamento
características
manuseio
som
0
0
Reportar a crítica

Reportar a crítica

google translate gb
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
j
ART USB Mix
janks 18.06.2013
I bought this to output sound from my computer to my monitor speakers and headphones. I haven't used any of the other features except those, but it works brilliantly for those purposes. It also feels very sturdy and well built.
1
0
Reportar a crítica

Reportar a crítica

google translate gb
Infelizmente ocorreu um erro. Por favor tente novamente mais tarde.
N
Best quality price ratio you'll find
Nootaku 28.03.2019
Have been using this as a "clutch" card for a few years now.
It has taken the plane on several occasions and fallen on the floor even more. Yet it is still working.
The features are VERY limited, thought. Basically, it is a travel tool to record one instrument at a time.
Do not expect it to record and playback simultaneously. If you were to try you will notice that it records your playback as well (haha).

Nevertheless, I keep using it and it's great to have it around when I'm on the road to make quick demos.
0
0
Reportar a crítica

Reportar a crítica
