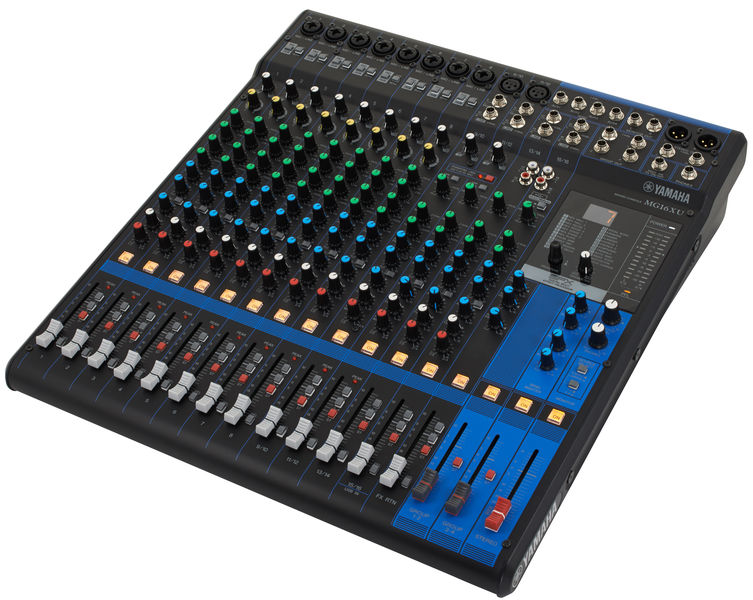

Yamaha MG16XU



  • 16 Channels
  • 10 Microphone Inputs (XLR/Jack) with +48V Phantom power (Channel 1-8 with built-in compressor)
  • 3 Band EQ with semi parametric
  • High-Pass Filter and 26 dB Pad Switch
  • SPX Effect processor with 24 programs
  • 4 Stereo Inputs (jack) with 3-Band EQ
  • XLR-Output
  • 2 Group BUS outputs
  • 4 AUX-Way on each channel
  • USB with 2 Stereo In-/Output (compatible with iPad Version 2 or higher, Camera Connection Kit required)
  • Dimensions: 444 x 130 x 500 mm
  • Weight: 6.8 kg
  • Including Rack Mount Kit and Cubase AI DAW Software as Download
  • Optional suitable case: 337878
simultaneously used channels 12
Mic-In 10
Stereo-In 4
Master Out XLR
Pre Aux max. 2
PC-Interface No
Multitrack-Recording No
USB/SD Direct Record No
Effect Processor Yes
USB Play No
Bluetooth Play No
Zones 0
Produkt dostępny od Maj 2014
Numer artykułu 333837
Ranking sprzedaży 1 szt.
Width 444 mm
Height 130 mm
Depth 500 mm
altezza 130 mm
Weight 6,8 kg
Parallel usable Channels 12
Simultaneous channels 12
Mic Ins 10
Mono Line Ins 10
Mono Line-in 10
Stereo Ins 4
Hi-Z Input 0
Phantom Power 48V
Phantompower 48V
Aux Ways 4
max. Pre Aux Channels 2
Number of Pre Aux max. 2
PC Interface USB-B
Interface Input 2
Interface Output 2
USB/SD Direkt Record No
USB/SD Direct Recording No
Low Cut 1
Parametric 1
Parametric EQ 1
Parameteric 1
Compressor 1
Panorama 1
FX Processor 1
Racklight Connector No
Lamp Connector No
Lamp connection No
Footswitch Button
Foot switch Button
Foot Switch Button
Bag No
19" Rackmount Yes
Rackmount Yes
110V capable 1
works with 110V 1
110V Power Supply Yes
Thomann Case 353019
Case Thomann 353019
Case Thon 337878
Thon Case 337878
Gigbag No
Pokaż więcej
444 € 2 011,84 zł
darmowa wysyłka, zawiera podatek VAT.
Cena w zł podana jest w celach orientacyjnych
Dostępny za 4-5 tygodnie
Dostępny za 4-5 tygodnie

Produkt będzie za niedługo dostępny i natychmiastowo gotowy do wysyłk.

Informacje dotyczące wysyłki

65 Oceny:

google translate gb
Wystąpił błąd. Proszę spróbować później.
Serving our needs very well!
SoulWorks 08.06.2019
We use this desk in our church building, which also hosts an open-mic youth project. We generally use 8 of the 16 input channels (for a mixture of mics and instruments), and we output via a graphic equaliser and amp to a pair of HK wall-mounted speakers. And it sounds really great! We're delighted with this desk.

We currently use 2 of the 4 AUX outputs - one for a stage monitor, and one to provide sound to a creche room. In the future we hope to use a 3rd AUX output to run a induction loop for those wearing hearing aids.

Most of the people using this mixer are not experts. In fact, some are absolute beginners. However, it is a very easy mixer to use, and the very logical layout of its controls helps immensely.

We don't often need to use the FX, but when we do, they work great.

Recently we've started recording from the desk. That's possible directly via the USB connection. This outputs the 2 channel (i.e. stereo) mix which is going to the speakers. The necessary PC drivers can be easily found on the Yamaha website. Even if you connect using DAW software, only the 2 channel (i.e. stereo) output is possible. I imagine you'd have to pay a lot more for a mixer that outputs each channel separately. The USB connection can also be used for playback, and produces a better sound than using an audio cable with jack connectors.

Hope that's helpful. We bought ours in March 2016, and over 3 years later we still consider it one of our best purchases. I should have written this review much sooner, but hey... better late than never ;o)
Zgłoś nadużycie

Zgłoś nadużycie

google translate gb
Wystąpił błąd. Proszę spróbować później.
MG 16 XU Preformance
Mary B. 25.05.2014
Very good pre amps and excellent sound quality when used with a professional pa system.

Nice reverbs in the effects that are built in to the desk.

Love the colour coded buttones which helps to identify them very quickly.

The Compressor built into each mono channel is a great advantage

Pity that there is no Graphic on the desk it is a vital feature which every pa needs.

A green signal button on each channel would be a great feature to have as you can see that each channel is working with a single glance.

There is no socket for a snake light which is a slight disadvantage.

Overall this Desk sounds and looks great, very happy with it.
Zgłoś nadużycie

Zgłoś nadużycie

google translate gb
Wystąpił błąd. Proszę spróbować później.
Fantastic desk, great quality features.
Anonimowy 04.12.2016
This desk is so versatile. The on board effects engine is of a good quality and adequate for most circumstances. Mic preamps are very crisp with very little noise. The USB system is of a very high quality and produces lovely recordings. The build of the desk is very good, jacks and ports are sturdy as are all faders, buttons and pots. The use of the light-up "on" buttons instead of mute buttons is a great little addition which makes identification of which channels are active very easy.

A great desk for live band and theater applications with room for expansion and ease of recording and affect use.

Great desk, highly recommended.
Zgłoś nadużycie

Zgłoś nadużycie

google translate gb
Wystąpił błąd. Proszę spróbować później.
Amazing Mixer - Solid!
Anonimowy 11.10.2021
Amazing Mixer - Solid!
