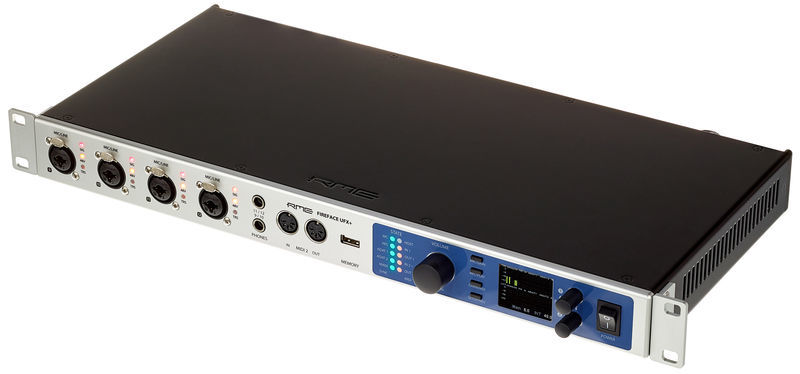

188 Channel USB and Thunderbolt Audio Interface
- Up to 24 bit / 192 kHz
- 94 input / 94 output channels
- TotalMix FX software
- Integrated monitor controller
- SteadyClock
- DIGICheck
- Stand-alone operation with Setup Recall
- Colour display on the front
- 19" / 1U
- For Win 7/8/10
- Mac OSX 10.6
- Format: 19"/ 1U
Connections:
- 12 Analogue inputs (1-8 balanced jack, 9-12 balanced XLR / jack combo)
- 4 x Mic / Instrument Preamp (digitally controllable) with 48V phantom power individually switchable
- 12 Analogue outputs (1-2 Main XLR balanced, output 3-8 jack balanced, 9/10 + 11/12 stereo)
- 1 x AES / EBU I / O
- 2 x ADAT I / O (or 1 x ADAT I / O plus 1x SPDIF I / O optical)
- 2 x MADI I / O (optical & coaxial)
- Wordclock I / O
- 2 x MIDI I / O
- 1 x Thunderbolt
- 1 x USB 3.0
Produkt dostępny od
Wrzesień 2016
Numer artykułu
395739
Ranking sprzedaży
1 szt.
Recording / Playback Channels
94x94
Number of Mic Inputs
4
Number of Line Inputs
12
Number of Instrument Inputs
4
Number of Line Outs
8
Headphone Outs
2
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
2
Numer of AES/EBU Connectors
1
Number of MADI Connectors
1
Ethernet
0
Other Connectors
No
MIDI interface
Yes
Word Clock
1xIn, 1xOut
Max. sample rate (kHz)
192 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
No
Incl. power supply
Yes
USB Version
3.0
Width in mm
483 mm
Depth in mm
210 mm
Height in mm
44 mm
Number of Line Outputs
8
Phantom Power
1
AES/EBU Connectors
1
MIDI Connectors
1
Max. Samplerate
192 kHz
Max. Resolution in Bit
24 bit
Incl. Power Supply
1
Windows Thunderbolt driver
1
Thunderbolt Version
2
Included in delivery
USB 3.0 Cable, CD-ROM, Manual, Power Chord
Zero latency monitoring
1
