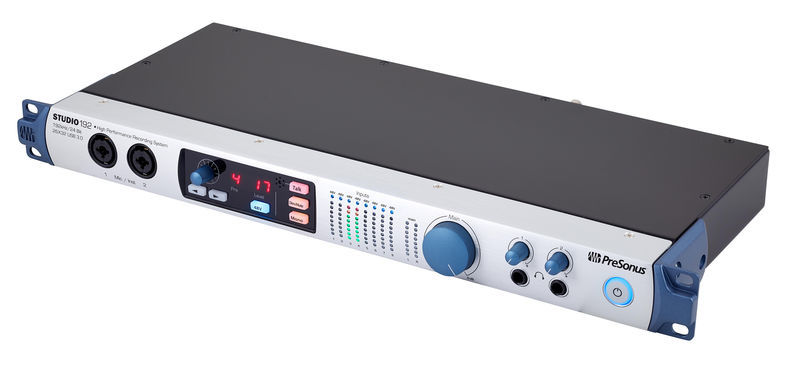

Presonus Studio 192

USB 3.0 Audio Interface & Studio Control Center

  • 26 inputs, 32 outputs
  • Ultra-low latency
  • Up to 192 kHz sampling rate
  • Burr-Brown digital converter with 118 dB dynamic
  • Perfect integration in Studio One 3 including gain control from DAW
  • 8 XMAX microphone pre-amplifier (ON <-128 dB, THD + N <0.005%)
  • Remote control and programmable via iPad, Windows 8 touch computer, Mac and PC
  • Built-in DSP with latency-free signal processing (HPF, noise gate, compressor, EQ, limiter) for all analog inputs and and 8 ADAT channels (1st ADAT input)
  • 2 Integrated master digital effects (FX A = Reverb, FX B = Delay)
  • Front-panel talkback microphone
  • 2 Cursor buttons, encoder, 48V, talk, dim / mute and mono buttons
  • (8-segment) plus 48V LED for each analog input
  • Level indicators (8-segment) for the main output (L / R)
  • Compatible with any common DAW
  • Downward compatible with USB 2.0
  • Power supply: external power supply (18 VDC / 2.6 A)
  • Dimensions: 48.26 x 13.97 x 4.45 cm (19 "/ 1 HU)
  • Weight: 2.22 kg
  • Incl. Control software / app "UC-Surface" (for download), DAW software "Studio One 3 Artist" (for download) and USB 3.0 cable (1.8 m)

Inputs:

  • 2 XLR Combo (Mic / Instr)
  • 6 XLR Combo (Mic / Line)
  • 16 ADAT inputs (optical) or 8 with SMUX II
  • S / PDIF I / O (coaxial)
  • Word Clock I / O (BNC)

Outputs:

  • 8 Balanced DA outputs (TRS jack, 6.3 mm)
  • Separate balanced main output (L / R, 2x TRS-jack, 6.3 mm) with large front-side volume control
  • 2 Front-end headphone outputs (stereo head, 6,3 mm) with separate DA converters and separate volume controls
  • 16 ADAT outputs (optical) and 8 with SMUX II
  • USB 2.0 (USB 3.0 recommended)
  • Internet connection (to register and download software)
  • Monitor resolution 1280 x 800 or more
  • 20 GB free disk space
  • OS X 10.8 or later, Win7 x64 / x86 SP1, Win8 / 8.1 x64, Win10 x64
  • Intel Core 2 (Intel Core i3 or better recommended)
  • 4 GB RAM (8 GB or more recommended)

Dalsze informacje

Recording / Playback Channels 26x26
Number of Mic Inputs 8
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 10
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 3.0
Width in mm 483 mm
Depth in mm 139 mm
Height in mm 45 mm
22 Oceny klientów:
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 / 5.0
  • obsługa
  • właściwości
  • dźwięk
  • wykończenie
Liczba pisemnych ocen 14 Wszystkie oceny
Łącznie
wykończenie
właściwości
obsługa
dźwięk
Pietrosz, 25.12.2018
Swietny produkt. Cena do jakosci? Polecam.
Przydatne · Nieprzydatne · Zgłoś nadużycie
Zgłoś nadużycie...

Czy ta opinia powinna zostać usunięta?

Wyślij
gb Tłumaczenie automatyczne (Pokaż oryginał)
gbOryginalna ocena (Pokaż tłumaczenia)
Wystąpił błąd. Proszę spróbować później.
Łącznie
wykończenie
właściwości
obsługa
dźwięk
Brilliant
Archie F., 09.02.2017
Bought this to track drums. The preamps are gorgeous, the onboard monitoring and dsp excellent. The device is well made and sturdy. For the price it can't be beaten. The devices that have equal number of preamps of similar quality are easily 2 to many times more expensive. The only point to mention is that the latency is slightly higher than similar devices due to the quirks of the onboard dsp. I believe RTL is ~ 10ms so if you are tracking virtual instruments this would roughly equal 1ms input for midi and ~5ms output, so ~ 6ms. If you play live instruments this is a no brainer. If you play virtual as well as live instruments and were acutely sensitive to latency or just wanted to be safe, buy, a rme babyface and use that for virtual instruments whilst using this for tracking live instruments. It would still be cheaper than any competing product ito solid ad conversion and preamps.
