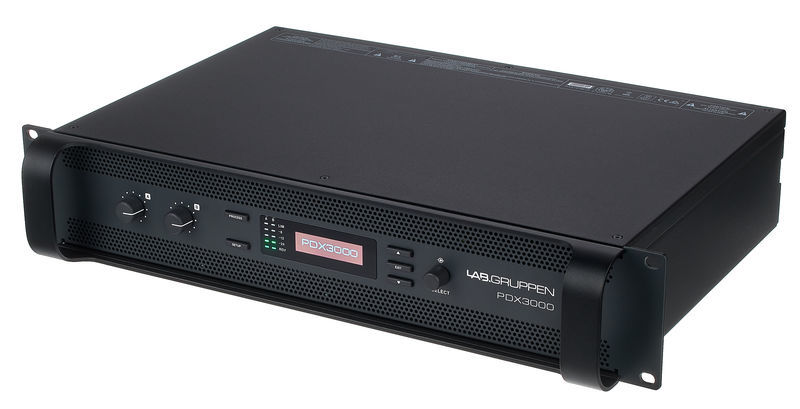

Start 360°
2-Channel Amplifier with DSP-Function
- Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
- Class D power amp
- DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
- LCD display
- Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
- Switch mode power supply (SMPS)
- Comprehensive circuit protection against short circuits, DC and thermal overload
- Speaker Protect Limiter for maximum level output and reliable driver protection
- Pre-configured crossover settings for speaker configuration
- Front panel locking functionality
- Temperature controlled fan
- Signal-to-noise ratio: > 90 dB
- THD+N: 20 - 20,000 Hz @ 1 W <0.1%
- Frequency response: 10 - 20,000 Hz, + 0.5 / -1 dB
- Input impedance: 10 kO unbalanced, 20 kO balanced
- Internal sample rate: 96 kHz
- 2x XLR inputs
- 2x 6.3 mm Jack inputs
- 2x PowerTwist outputs
- Dimensions (H x W x D): 93 x 483 x 326 mm
- Weight: 6.5 kg
- Colour: Black
- Designed and developed in Sweden
- Includes a 10 year LAB Gruppen warranty
Produkt dostępny od
Styczeń 2020
Numer artykułu
478226
Ranking sprzedaży
1 szt.
Power (4 Ohms) per Channel
1500 W
Channels
2
Rack Units
2 U
Amp Class
Class D
2 Ohm stable
Yes
DSP/Crossover
Yes
Convection cooling
No
Width in mm
483 mm
Depth in mm
326 mm
Weight
6,5 kg
Temperature controlled fan
1
Input XLR
1
Jack Input 6,3 sym.
1
Parallel Input
1
Link Out
6,3 mm sym.
Output Speaker Twist
1
