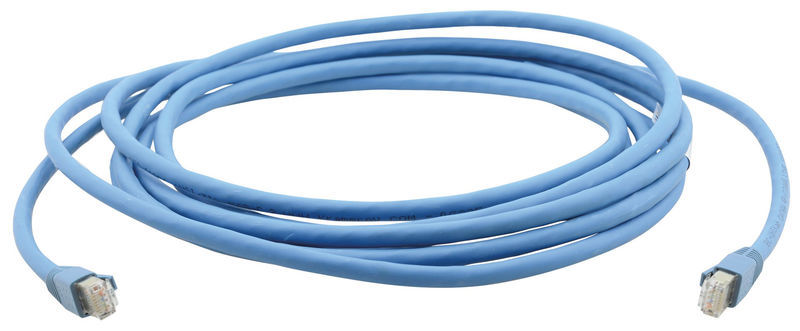

Kramer C-UNIKat-15 Cable 4.6m

KAT 6A U/FTP cable for video and LAN

  • Length: 4.6 m
  • ScreeningKAT 6A cable suitable for all current signal types
  • Four individually shielded twisted pairs with 23 AWG solid copper conductors cabled together in an unshielded outer jacket and conduct DGKat technology, 4K HDBaseT technology or LAN signals
  • Optimised for Kramer hardware: use with all Kramer digital twisted pair sets transformer and receiver (DGKat and HDBaseT)
  • High-quality shielded RJ-45 plugs (with 50 µ gold-plated contacts)
  • Temperatures Operation: -20 to +60 °C
  • Temperatures storage, transport, installation: 0° to 50° C
  • Electrical standard: TIA/EIA 568-B, ISO/IEC 11801
  • Fire protection: IEC 60332-
  • Smoke density: IEC61034
  • Halogen-free: IEC 60754
  • Impedance: 1-100 MHz: 100 ± 15 Ohm / 100-250 MHz: 100 ± 20 Ohm / 250-500 MHz : 100 ± 50 Ohm
  • Propagation speed: 76
  • Mutual pair capacitance: <=42 pF/m
  • Capacitance Unbalanced Pair/Ground: <= 1500 pF/km
  • Max. line resistance: 79.8 Ohm/km
  • Max. Conductor DC Resistance: DC <1.5
  • Dielectric strength: 2.5 kV DC (2s)
  • Insulation resistance: > 5000 MOhm/km
  • Supply voltage: 30 V

Conductor properties:

  • 4 x 2 x 23 AWG
  • Annealed copper
  • Diameter: 0.56 ± 0.01 mm
  • Insulation material: skin/foam/skin HDPE
  • Diameter: 1.33 ± 0.1 mm
  • Colour: Per TIA/EIA 568-B
  • Shielding: Alu/PET per pair (Alu outside)
  • Co-wire: 90 % tinned copper
  • Bi-wire Ø: 0.4 ± 0.01 mm

Jacket properties:

  • LSHF
  • Outer diameter: 7.2 ± 0.2 mm
  • Maximum Pulling Tension: 100 N
  • Bending radius: 6 cm
  • Colour: Blue RAL5012

Dalsze informacje

Length (in m) 4,6 m
Cable Color Blue
Active Cable No
Transfer rate [Gbit / s] 0
