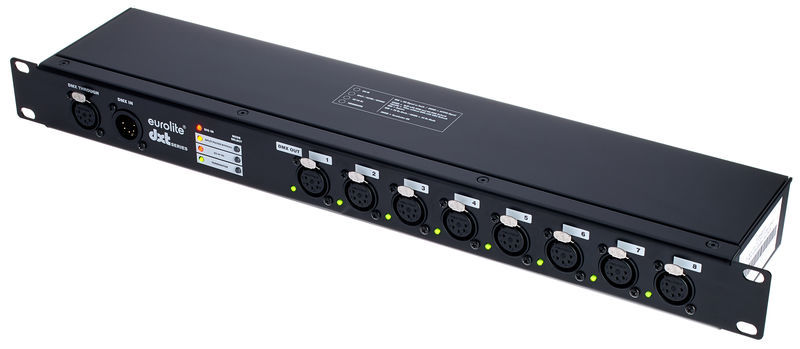

Eurolite DXT-SP PRO DMX RDM 5pol XLR

PRO DMX RDM Splitter

  • DMX distributor for splitting a DMX input signal into 8 DMX outputs
  • Input and loop-through output are doubled on the front and rear and connected in parallel.
  • Supports RDM for bidirectional communication over the DMX line
  • Switchable filter mode for filtering RDM data prevents problems when operating with devices without RDM support
  • Bypass function for easy processing of DMX-like signals from older devices
  • Output frequency selectable: 22/44 Hz
  • DMX failure mode selectable: Hold, Blackout, Zero
  • Switchable terminating resistor
  • Power supply via supplied plug-in power supply unit
  • Dimensions (L x W x H): 483 x 100 x 41 mm
  • Rack mounting with 1 U
  • Weight: 1.8 kg
  • Made in Germany

Connections:

  • 2 DMX512 inputs: 5-Pin XLR chassis connector (Neutrik)
  • 2 DMX loop-through outputs: 5-Pin
  • XLR built-in coupling (Neutrik)
  • 8 DMX512 outputs: 5-Pin XLR female connector (Neutrik)
  • Input and outputs: XLR 5-Pin (Neutrik)
  • Outputs galvanically isolated
  • Each DMX output with independent driver and status display
  • Each DMX output can be reconnected to up to 32 DMX devices

Dalsze informacje

Type Splitter
Distribution-type 1in8
Input 5-pole XLR
3-pole XLR Outputs No
5-pole XLR Outputs Yes
19"-capable Yes
RDM-compatible Yes
WDMX-capable No
