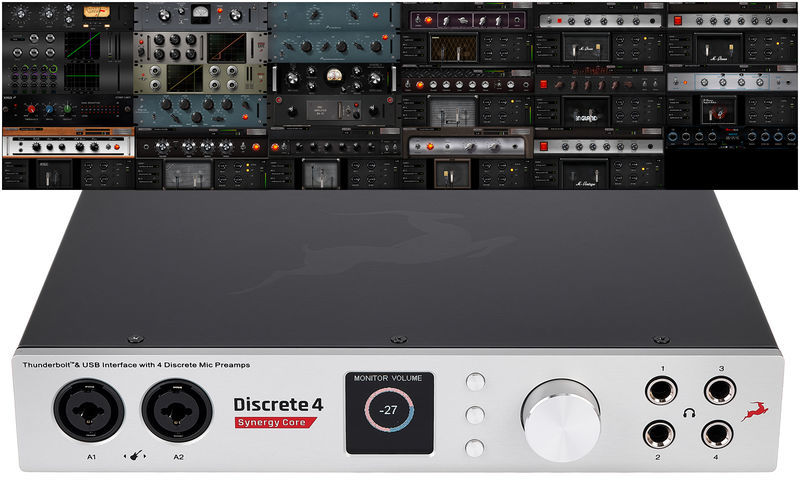

Antelope Discrete 4 Synergy Core

Thunderbolt / USB Audio Interface with 36 DSP and FPGA real-time effects

  • 2 DSP and 1 FPGA to calculate Antelope FX
  • 24 Bits / 192 kHz
  • Up to 121dB dynamic range
  • <1ms latency for monitoring, effects and microphone simulations
  • Antelope 64 bit acoustically focused clocking
  • Dimensions (W x D x H): 261 x 208 x 44 mm
  • Weight: 1.7 kg
  • System requirements: Windows 10, OS X: 10.11 / 10.12 / 10.13
  • Incl. power supply and USB cable

Connections:

  • 2 Microphone / line / instrument inputs (XLR / TRS combo socket)
  • 2 Microphone / line inputs (XLR / TRS combo socket)
  • 4 Line outputs (6.3mm TRS jack)
  • 2 Monitor outputs (6.3mm TRS jack)
  • 4 Stereo headphone outputs (6.3mm TRS jack), each with its own volume control
  • ADAT input / output
  • S / P-Dif input / output (RCA)
  • 2 Wordclock outputs (BNC)
  • Thunderbolt and USB 2.0 port

Includes 36 real-time synergy core effects, modelled preamps, dynamics and equaliser:

  • Gyraf Gyratec IX (Tube Mic Preamp)
  • BA-31 (Mic Preamp)
  • VCA160 (Compressor)
  • Stay-Levin (Compressor)
  • FET-A76 (FET Compressor)
  • FeedForward Antelope Compressor (Compressor)
  • X903 (Compressor/Limiter)
  • Power EX (Expander)
  • VEQ-1A (Tube EQ)
  • VEQ-HLF (Passive High/Low Filter)
  • VMEQ (Tube EQ)
  • Clear Q (Parametric EQ)

Modelled guitar amplifiers and speakers:

  • Plexi 59 (Tube Guitar Amp)
  • Bass SuperTube VR (Tube Guitar Amp)
  • Darkface 65 (Tube Guitar Amp)
  • Top30 Bright (Tube Guitar Amp)
  • Tweed Deluxe (Tube Guitar Amp)
  • Overange 120 (Tube Guitar Amp)
  • BurnSphere Lead (Tube Guitar Amp)
  • Marcus II Lead (Tube Guitar Amp)
  • Modern CH3 (Tube Guitar Amp)
  • Rock 75 (Tube Guitar Amp)
  • Rock 22.10 (Tube Guitar Amp)
  • Darkface 65 2x12 (Guitar Cabinet)
  • Bass SuperTube VR (Guitar Cabinet)
  • Darkface 65 (Guitar Cabinet)
  • Top30 Bright (Guitar Cabinet)
  • Tweed Deluxe (Guitar Cabinet)
  • Overange 120 (Guitar Cabinet)
  • BurnSphere Lead (Guitar Cabinet)
  • Marcus II Lead (Guitar Cabinet)
  • Modern CH3 (Guitar Cabinet)
  • Rock 75 (Guitar Cabinet)
  • Rock 22.10 (Guitar Cabinet)

Further effects:

  • Aura verb (reverb)
  • Power Gate

Dalsze informacje

Recording / Playback Channels 14x16
Number of Mic Inputs 4
Number of Line Inputs 4
Number of Instrument Inputs 2
Number of Line Outputs 6
Headphone Outs 4
Phantom Power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 2xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 2
Width in mm 261 mm
Depth in mm 208 mm
Height in mm 44 mm

Wybierz produkty z zestawu i kupuj taniej

Jeśli kupisz ten artykuł w zestawie razem z innymi produktami możesz zaoszczędzić do 5 % !
Antelope Discrete 4 Synergy Core + Image-Line FL Studio Producer Edition +
kolejne 7
5 Oceny klientów:
  • 5
  • 4
  • 3
  • 2
  • 1
5 / 5.0
  • obsługa
  • właściwości
  • dźwięk
  • wykończenie
Aktualnie ten produkt posiada ocenę tylko w innym języku.
Liczba pisemnych ocen 4 Wszystkie oceny
gb Tłumaczenie automatyczne (Pokaż oryginał)
gbOryginalna ocena (Pokaż tłumaczenia)
Wystąpił błąd. Proszę spróbować później.
Łącznie
obsługa
właściwości
dźwięk
wykończenie
Unique interface
Pofa, 21.08.2019
I have chosen this interface overall for three features that I have not found all together in the same price range:
1- the 4 headphone out with 4 different mixes (very easy to do),
2- the DSP+FPGA models,
3- the Thunderbolt and USB connection.

At the moment I cannot make A/B tests with my other interfaces (an old but still good RME400 and a Focusrite Clarett Thunderbolt, both great for different reasons) but I read some serious reviews with scientific measurement that put the interface between the best products (in its price range of course).
With the DSP+FPGA models I can prepare, save and recall 4 channel strips for the headphones without latency and without bothering the CPU of the Mac.
I use it just for monitoring while at mix I can use all my plugins, but also the DSP+FPGA of the Antelope, thanks to the AFX2DAW plugin that in Pro Tools allows to use and see the Discrete4 as an external hardware, seeing all plugins in the insert list.
Few days after my business the price of the Discrete4 has dropped down and with more plugins. Antelope contacted me in order to give me for free the plugins of the new offer. This was nice and appreciated.
The performance of the interface is good. The drivers and control panel are good too, while sometimes a little bit complicated but probably is the “learning curve”.
The output power of both headphones and monitor out is good but not so abundant compared to the “High Level” of the RME. Also the way the loudness increase could be better, on the Focusrite is perfect having at 12H always the perfect loudness limit for the normal use, while on the Antelope there is a big increase on the last quarter form 3 to max.
I don't know if it's possible via driver/firmare update to implement more output levels and to change the way the volume control reacts.

Said that the Discrete4 with his actual offer, price and unique features is, in my opinion, hard to beat at the moment.
Przydatne · Nieprzydatne · Zgłoś nadużycie
Zgłoś nadużycie...

Czy ta opinia powinna zostać usunięta?

Wyślij
gb Tłumaczenie automatyczne (Pokaż oryginał)
gbOryginalna ocena (Pokaż tłumaczenia)
Wystąpił błąd. Proszę spróbować później.
Łącznie
obsługa
właściwości
dźwięk
wykończenie
psg5321, 31.10.2019
its really good sound for recording and monitoring
also quality is great
Przydatne · Nieprzydatne · Zgłoś nadużycie
Zgłoś nadużycie...

Czy ta opinia powinna zostać usunięta?

Wyślij
