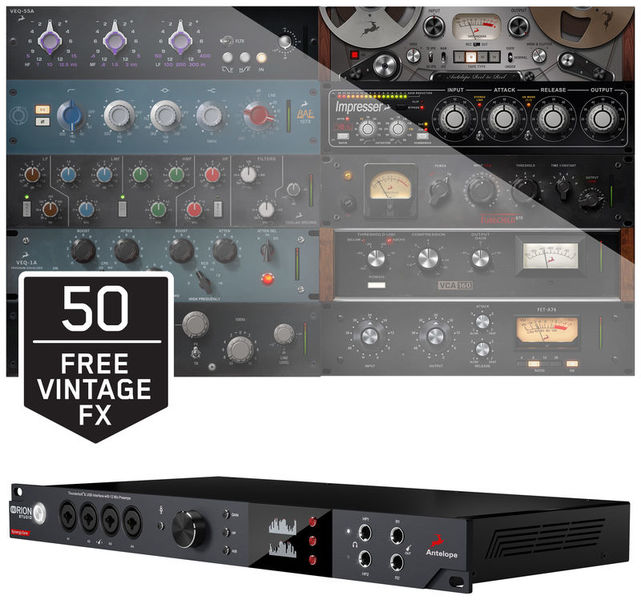

Antelope Orion Studio Synergy Core

32 Channel Thunderbolt 3 & USB 2.0 Audio Interface

  • Includes 50 studio effects
  • Integrated FPGA for real-time calculation of effects
  • Antelope 64-bit acoustically focused clocking
  • 12 Discrete mic preamps with up to 75 dB gain and +48 V phantom power
  • 4 Hi-Z inputs
  • 2 Stereo monitoring outputs with 130 dB dynamic range - can be operated in parallel or in A / B mode
  • 2 Independent stereo headphone outputs
  • 2 ReAmp outputs
  • 16 Line outputs via DB25
  • Analogue inserts for inputs 1 & 2 (6.3mm TRS)
  • S / P-DIF input / output (2x RCA)
  • 2 x ADAT input / output
  • DC-coupled inputs and outputs allow the transmission and reception of CV / Gate signals
  • Wordclock I / O
  • Extensive software control panel with flexible audio routing
  • Dimensions (W x D x H): 483 x 220 x 44 mm
  • Weight: 3.1 kg
  • System requirements: Windows 10 (64 bit), min. OS X 10.12 (10.14 Mojave recommended)

Ulteriori informazioni

Recording / Playback Channels 64x64
Number of Mic Inputs 12
Number of Line Inputs 12
Number of Instrument Inputs 4
Number of Line Outputs 20
Headphone Outs 2
Phantom Power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 3
Width in mm 483 mm
Depth in mm 220 mm
Height in mm 44 mm

Altri clienti hanno scelto:

Altri clienti che hanno visto questo articolo hanno acquistato:

Antelope Orion Studio Synergy Core
29% comprato questo prodotto
Antelope Orion Studio Synergy Core
Disponibilità immediata
Disponibilità immediata

Questo articolo è disponibile in magazino e può essere spedito a breve.

Informazioni sulla spedizione
€ 2.499 Aggiungi al carrello
Antelope Discrete 8 Synergy Core
8% comprato Antelope Discrete 8 Synergy Core € 1.399
Antelope Discrete 4 Synergy Core
6% comprato Antelope Discrete 4 Synergy Core € 990
Focusrite Scarlett 2i2 3rd Gen
6% comprato Focusrite Scarlett 2i2 3rd Gen € 139
Antelope Orion 32+ | Gen 3
5% comprato Antelope Orion 32+ | Gen 3 € 2.599
I più popolari Interfacce Audio USB
18 Recensioni dei clienti:
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • uso
  • caratteristiche
  • suono
  • fabbricazione
Per questo prodotto sono disponibili recensioni soltanto in altre lingue
gb Traduzione automatica (Mostra originale)
gbRecensione originale (Mostra traduzione)
Sfortunatamente si è verificato un errore, La preghiamo di riprovare più tardi.
Totale
uso
caratteristiche
suono
fabbricazione
Amazing products
Deesak, 02.06.2020
I switched from AVID HD I/O to Antelope Orion Studio Synergy Core.

AVID HD I/O is also a very good product, but I was surprised by the audio interface of Antelope Orion Studio Synergy Core.
It is an excellent product in terms of both quality and cost performance.

You can select the input method for microphone, line and direct input. Direct In is an input method for direct A/D conversion, I thought it would be very good to capture analog summing sound and hardware effects by direct In.

With the advent of DAW, you have more things to do, such as composing, recording, mixing, and mastering, and it answers all those needs. You won't need to replace it for at least 5 years from now.

Also worth noting is that it comes with FPGA FX. To be honest, I didn't expect much compared to waves and UAD.
But I soon realized that it was a big mistake. The quality of FPGA FX is very high, and I mainly used FPGA FX now.

Note that FPGA FX differs from ordinary plug-ins in that effects are processed in hardware, which requires cumbersome routing to make the effects work on the DAW. However, if you purchase the AFX2DAW plugin provided by Antelope separately, you will be able to use FPGA FX easily on the DAW without troublesome routing, so you should purchase the AFX2DAW.
However, since FPGA FX is only processed in hardware,offline bounce is not supported. This is a little inconvenient because it requires real-time export.

It seems that there will be more FPGA FX from third parties in the future, so I'm looking forward to it.
Utile · Non utile · Segnala un abuso
Invia recensione...

Trovate questa recensione sbagliata oppure per qualche motivo non utile?

Spedisci recensione
gb Traduzione automatica (Mostra originale)
gbRecensione originale (Mostra traduzione)
Sfortunatamente si è verificato un errore, La preghiamo di riprovare più tardi.
Totale
uso
caratteristiche
suono
fabbricazione
Great sound card
XpertProduction, 05.10.2020
This sound card sounds amazing,great preamps,converters,and great sound plugins emulation,waiting for AFX2DAW for windows!
Utile · Non utile · Segnala un abuso
Invia recensione...

Trovate questa recensione sbagliata oppure per qualche motivo non utile?

Spedisci recensione
