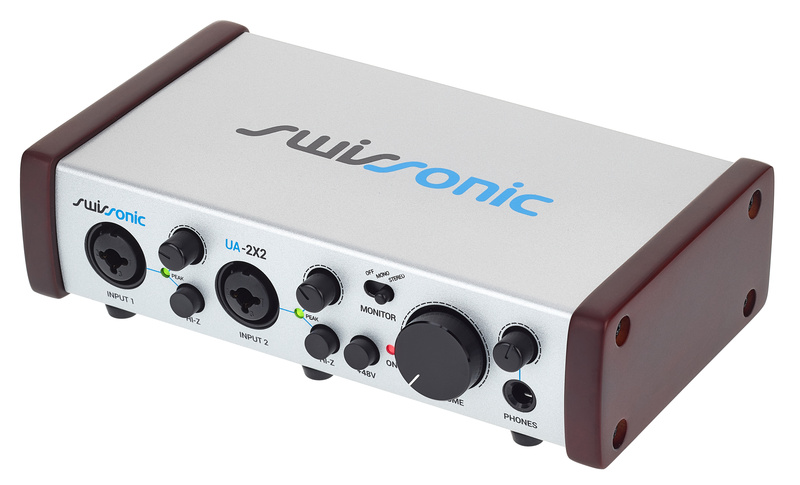

Swissonic UA-2x2

2x2 USB 2.0 Audio Interface

  • 24 bit / 96 kHz
  • 2 Microphone preamplifiers with 48 V Phantom power
  • Power supply via USB
  • A/D Converter with 102dB(a) dynamic range
  • D/A Converter with 108dB(a) dynamic range
  • Multiple direct monitoring options: Off, Mono, Stereo
  • Master volume control on front panel
  • Supports Windows Vista, Windows 7, Windows 8 / 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound including DirectWIRE support
  • Supports Mac OS X (10.7 and later) via Apple's native CoreAudio USB audio drivers (no driver installation required, Mac Control Panel available)
  • Dimensions: 198 x 112 x 50 mm
  • Includes Magix Samplitude Pro X Silver

Connections:

  • 2 Microphone/line combo inputs with Hi-Z switch for instruments such as guitar and bass
  • 2 Line outputs 6.3 mm jack balanced
  • Adjustable stereo headphone output with 6.3 mm jack connector

Further Information

Recording / Playback Channels 2x2
Number of Mic Inputs 2
Number of Line Inputs 2
Number of Instrument Inputs 2
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 198 mm
Depth in mm 112 mm
Height in mm 50 mm
