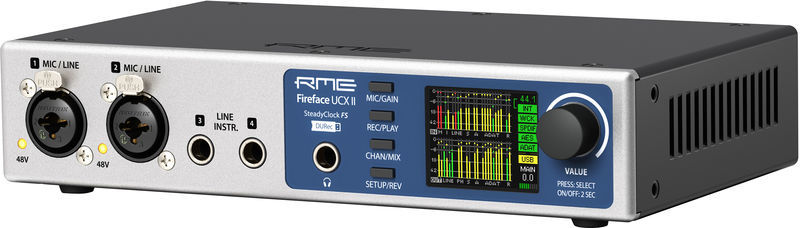

RME Fireface UCX II

USB 2.0 Audio Interface

  • 24-Bit / 192 kHz AD/DA converter
  • 20 Input and output channels
  • SteadyClock FS
  • Stand-alone functionality
  • DURec feature: integrated digital recorder for all inputs and outputs directly to USB storage devices via the rear USB port (allows recording to
  • USB sticks or hard disks with up to 2 TB capacity)
  • TotalMix mixing / routing software
  • DigiCheck software
  • Class Compliant
  • Compatible with optional ARC USB remote control (not included)
  • DC-coupled outputs - CV/Gate Voltage Control
  • +48 V phantom power
  • Colour display
  • 2 Mic/line combo inputs: XLR/jack 6.3 mm
  • 2 Instrument/line inputs: 6.3 mm jack
  • 4 Line inputs: 6.3 mm jack
  • Stereo headphone output: 6.3 mm jack
  • ADAT input and output
  • Word clock input and output
  • AES/EBU as well as S/PDIF coax
  • MIDI input and output
  • DUrec USB
  • Enclosure size: 9.5" / 1U
  • Dimensions (W x H x D): 215 x 44 x 130 mm
  • Weight: 910 g
  • Includes external power supply 100V - 240V AC, 12V 2A DC

Further Information

Recording / Playback Channels 20x20
Number of Mic Inputs 2
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 6
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
Numer of AES/EBU Connectors 1
Number of MADI Connectors 0
Ethernet 0
MIDI interface Yes
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 215 mm
Depth in mm 130 mm
Height in mm 44 mm

This product is currently sold out

These are other customers' choices:

RME Babyface Pro FS
12% bought RME Babyface Pro FS €699
RME Fireface UFX+
12% bought RME Fireface UFX+ €2,199
RME Digiface USB
9% bought RME Digiface USB €355
Focusrite Scarlett Solo 3rd Gen
6% bought Focusrite Scarlett Solo 3rd Gen €105
Our most popular USB Audio Interfaces
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Impression of RME UCX II
yoshitaka, 20.08.2021
I am a UCX and Babyface PRO FS user.

This is a comparison between Babyface PRO FS and UCX II.

Owned equipment
Speaker Genelec 8331 (purchased at Thomann)
Headphones SHR1840

External processor
RUPERT NEVE DESIGNS Portico II Master Bus processor
SSL FUSION (purchased at Thomann)
Analog synthesizer

The first impression is the headphone amplifier.
Babyface pro fs sounds brighter than UCX II.
I hear more high frequencies.
The UCX II has the impression that it sounds a little more subdued than the Babyface pro fs.
If you like flashy sounds, Babyface pro fs is a good choice.
But UCX II is also very good. Enough for me.

Next is the impression of speaker out.
You can see the sound better with UCX II. Overall.

About input
I think the mic preamp, other inputs, and the UCX II are very good.

Both the UCX II and Babyface pro FS sound great.
UCX II is a very good item because I need a lot of input.

It's also worth noting that the major difference between UCX I and UCX II is the addition of AES.
I own a genelec 8331.
The difference in sound is obvious when connected to 8331 with AES.

If you are considering UCX II as a replacement from UCX I, I highly recommend UCX II. The UCX II has a good view sound.
