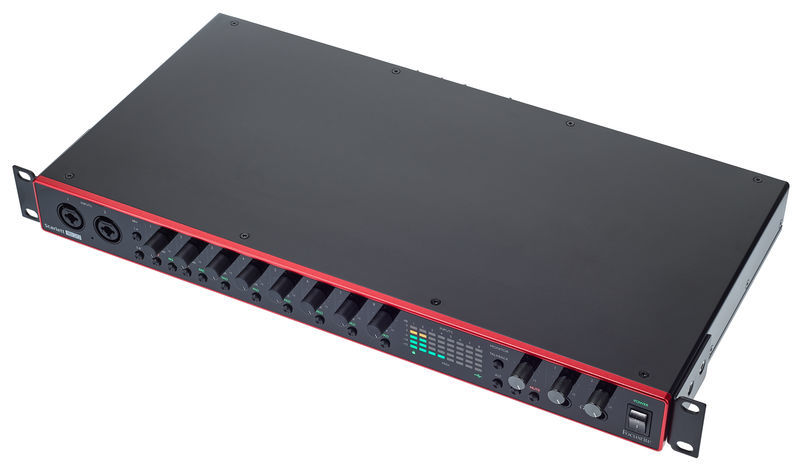

Focusrite Scarlett 18i20 3rd Gen

18-Channel USB2.0 audio interface with USB-C connection

  • 24 Bit / 192 kHz
  • 8 Scarlett microphone preamps
  • Phantom power +48 V
  • Switchable air function
  • Talkback function with integrated microphone
  • Pad switch
  • 8 Mic / line inputs: XLR / 6.3 mm jack combo balanced - 2 of them front side with instrument input
  • 10 Line outputs: 6.3 mm jack balanced
  • 2 Stereo headphone outputs: 6.3 mm jack
  • 2 S / PDIF input and output coaxial
  • 2 ADAT input and output
  • MIDI input and output
  • USB-C connection
  • BNC Word Clock
  • For PC / Mac
  • Format: 19"/ 1U (removable rack panel)
  • Dimensions (W x H x D): 482.6 x 46.6 x 259.8 mm
  • Weight: 3.19 kg
  • Includes USB cable (Type C to A) and Ableton Live Lite, Pro Tools First, Focusrite Red 2 & Red 3 Plug-in Suite, Softube Time & Tone Bundle and a software tool of 4 XLN Audio Addictive Keys of your choice

Further Information

Recording / Playback Channels 18x20
Number of Mic Inputs 8
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 10
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 2
Number of ADAT Connectors 2
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock No
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 482,6 mm
Depth in mm 259,8 mm
Height in mm 46,6 mm

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 5 % additionally!
Focusrite Scarlett 18i20 3rd Gen + Image-Line FL Studio Producer Edition +
7 more
Configure bundle now
starting from €585
Focusrite Scarlett 18i20 3rd Gen + Rode NT1-A Complete Vocal Recording +
6 more
Configure bundle now
starting from €565

These are other customers' choices:

Customers who looked at this item have bought these:

Focusrite Scarlett 18i20 3rd Gen
52% bought this exact product
Focusrite Scarlett 18i20 3rd Gen
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
€429 Add to Basket
Focusrite Scarlett 2i2 3rd Gen
7% bought Focusrite Scarlett 2i2 3rd Gen €139
Behringer UMC1820
5% bought Behringer UMC1820 €199
Focusrite Scarlett Solo 3rd Gen
5% bought Focusrite Scarlett Solo 3rd Gen €95
Behringer U-Phoria UMC22
4% bought Behringer U-Phoria UMC22 €41
Our most popular USB Audio Interfaces
83 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • handling
  • features
  • sound
  • quality
Total
quality
features
handling
sound
Interface on another level
lapsio, 18.04.2020
I have never in my life even remotely thought that interface can change my workflow this much. Integrated zero-latency hardware 1 bus mixer is game changer since... it works even if PC is turned off and interface is unplugged. It means that you can actually set this interface up in such way that when PC is off Scarlett 18i20 can behave as pass-through device passing any line-in of your choice (eg. inputs 7-8) directly to your main XLR monitors. It makes it really easy to connect multiple either balanced or unbalanced devices to monitors. Kinda like... monitor controller or actual mixer AND interface in one device.

Really nice. Value added by this device is simply incredible. Also it works under Linux (as of today there's kernel patch available on linuxmusicians fixing implicit USB feedback issue).

The only issue I have with this device it's that it has ONE bus mixer. Means you can create one "custom mix" aka virtual mixer (with whichever physical or software inputs you like) and then assign this one mix output it to whichever outputs you like but there's only ONE such stereo mix. It means that you can't for example pass line-in 7-8 to out 1-2 and line-in 5-6 to out 3-4 as that would require 2 independent virtual mixers which is not possible.

pros:
- standalone 1 bus mixer
- signal level meters and other back lit indicators look super dope
- 10 built-in output channels (a lot of devices have only 8). In general great i/o
- rubber caps to cover rack ears mounting holes if you don't use them
- kind of works with Linux as well as smartphones

cons:
- standalone ONE bus mixer
- i believe more controls should be exposed as physical buttons. Eg. AIR switch which is physical on some other Scarlett devices.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Solid and good for the money
Freddian_l, 18.11.2020
The unit is not very heavy but its still feels premium and solid. it has 8 mic preamp/input on the unit itself, which I find is just enough if you're starting to record live drums. However you'll need a separate preamp to use all 18inputs that this unit has.

The mic-preamps has a -15db pad toggle on it, and when I use certain mics with it, I found that it'll clip at around -10db to -20db. I don't know whether its is a problem with my unit or something that all units has. I don't know what caused it, but I haven't re-encounter that problem since then.

For day to day uses, It runs smoothly. its actually plug-n-play, but if you use its control software downloading from their website, you can get much more out of it in terms of internal routing. However, I have experienced occasionally, the control software would say the hardware is not connected even thought the computer is clearly using it to play sound from my daw. Usually it will resolves itself after I restart the control software after waiting a few minutes or restarting my computer.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Great Product
Sambodrumz, 16.06.2020
I am currently using this Focusrite Scarlett 18i20 3rd Gen in my new studio.

The clarity is amazing, makes my drum sound cristal clean, you have a wide range of scope.

This is just a thought. I wonder if focus rite will ever make 1 device like this with 16 channels instead of having to buy two product.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Monitoring 5.1
Guillaume Desjardins, 23.09.2020
I bought it to monitor 5.1 on windows with 3 x Yamaha HS7 and 2 x Yamaha HS5.
It works well ! I can save mixes and switch from 2.0 to 5.1 using the monitor I want.
It just lacks compressor, EQ for the outputs.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
