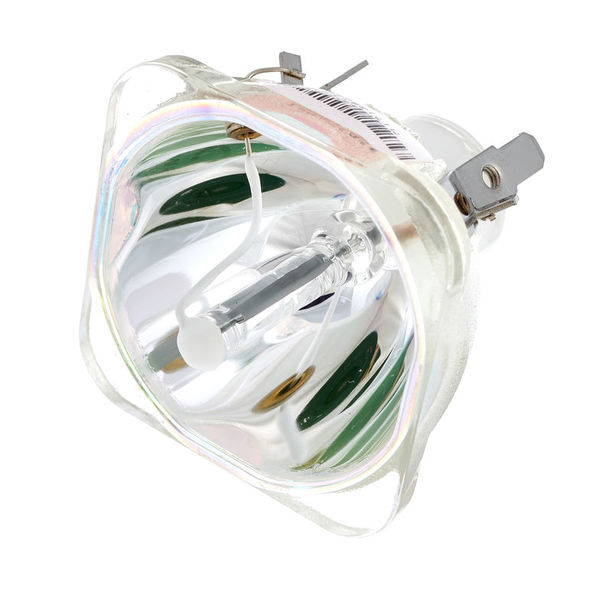

YODN MSD 150R3

Discharge lamp

  • Power rating: 150 W
  • Arc: 1.0 mm
  • Dimensions: 46 x 46 x 56 mm
  • Lumen output: 5950 Lm
  • Light temperature: 8600 K
  • Firing position: Any
  • Colour rendering index (CRI): 68 Ra
  • Average lifetime: 4500 h
  • Operating voltage: 72 V

Further Information

Construction Type Single pin socket
Power in Watts 150 W
Color / Color temperature [K] 8600 °
Type MSD 3R
Show variations of this product
YODN MSD 150R3
YODN MSD 150R3

Discharge lamp Power rating: 150 W, Arc: 1.0 mm, Dimensions: 46 x 46 x 56 mm, Lumen output: 5950 Lm, Light temperature: 8600 K, Firing position: Any, Colour rendering index (CRI): 68 Ra, Average...

  • Construction Type: Single pin socket
  • Power in Watts: 150 W
  • Color / Color temperature [K]: 8600 °
  • Type: MSD 3R
  • Special bulb: Yes
YODN MSD 280R10
(5)
YODN MSD 280R10

HID Discharge Lamp Power: 280 W, Electric arc: 1.2 mm, Dimensions: 51 x 51 x 61 mm, Lumen Output: 11000 Lm, Light temperature: 7800 K, Burning position: Any, Colour rendering index (CRI): 75 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 280 W
  • Color / Color temperature [K]: 7800 °
  • Type: HRI
  • Special bulb: Yes
YODN MSD 200R5
YODN MSD 200R5

HID Discharge Lamp Power: 200W, Arc: 1.1 mm, Dimensions: 51 x 51 x 61 mm, Lumen output: 7200 Lm, Light temperature: 8000 K, Burning position: Arbitrary, Colour Rendering Index (CRI): 70 Ra, Average...

  • Construction Type: Single pin socket
  • Power in Watts: 200 W
  • Color / Color temperature [K]: 8000 °
  • Type: MSD 5R
  • Special bulb: Yes
YODN MSD 230S7
(1)
YODN MSD 230S7

HID Discharge Lamp Power: 20 W, Electric arc: 1.0 mm, Dimensions: 51 x 51 x 61 mm, Lumen Output: 9500 Lm, Light temperature: 7800 K, Burning position: Any, Colour rendering index (CRI): 78 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 230 W
  • Color / Color temperature [K]: 7800 °
  • Type: HRI
  • Special bulb: Yes
YODN MSD 300R15
(1)
YODN MSD 300R15

HID Discharge Lamp Power: 300 W, Electric arc: 1.3 mm, Dimensions: 58 x 58 x 66 mm, Lumen Output: 12000 Lm, Light temperature: 8000 K, Burning position: Any, Colour rendering index (CRI): 70 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 300 W
  • Color / Color temperature [K]: 8000 °
  • Type: MSD 15R
  • Special bulb: Yes
YODN MSD 350R17
(1)
YODN MSD 350R17

HID Discharge Lamp Power: 350 W, Electric arc: 1.3 mm, Dimensions: 58 x 58 x 66 mm, Lumen Output: 15000 Lm, Light temperature: 8000 K, Burning position: Any, Colour rendering index (CRI): 75 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 350 W
  • Color / Color temperature [K]: 8000 °
  • Type: MSD 16R
  • Special bulb: Yes
YODN MSD 330C8
YODN MSD 330C8
to the product
131 €

Hid Discharge Lamp Power: 330 W, Electric arc: 1.2 mm, Dimensions: 58 x 58 x 66 mm, Lumen Output: 14500 Lm, Light temperature: 7900 K, Burning position: Any, Colour rendering index (CRI): 85 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 330 W
  • Color / Color temperature [K]: 7900 °
  • Type: HRI
  • Special bulb: Yes
YODN MSD 330S16
YODN MSD 330S16
to the product
131 €

Hid Discharge Lamp Power: 330 W, Electric arc: 1.3 mm, Dimensions: 56 x 56 x 63 mm, Lumen Output: 15000 Lm, Light temperature: 7400 K, Burning position: Any, Colour rendering index (CRI): 85 Ra,...

  • Construction Type: Single pin socket
  • Power in Watts: 330 W
  • Color / Color temperature [K]: 7400 °
  • Type: HRI
  • Special bulb: Yes
65 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Monday, 25.01. and Tuesday, 26.01.
