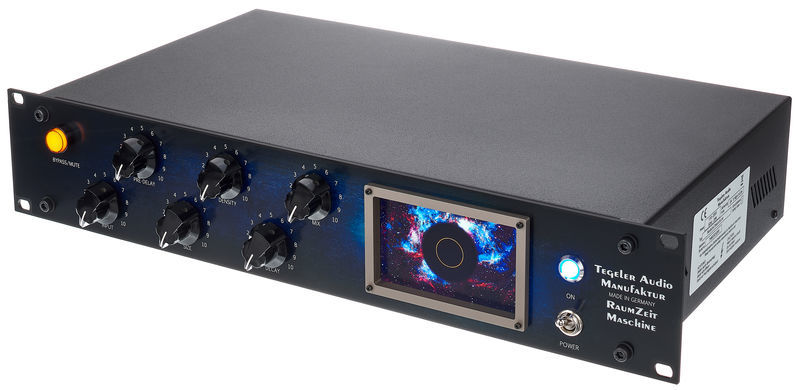

Tegeler Audio Manufaktur Raumzeitmaschine

Tube Reverb Unit

• Combination of digital and analog components
• Integrated DSP
• Via DAW plug-in (AU, AAX, VST) remotely controllable via servo motor pots
• Two double triodes per channel as well as input and output transformers
• Dynamics: > 110 dB unweighted
• Crosstalk attenuation: L / R> 90 dB @ 1 kHz
• Bypass / Mute switch
• Controls for Predelay, room size, density, cool-down, input and mix
• 2 Balanced XLR line inputs
• 2 Balanced XLR line outputs
• Ethernet
• USB (only for service / updates)
• Integrated power supply
• Display
• Type: 19"/ 2 HE
• Dimensions: 483 x 88.1 x 250 mm
