T-Rex Replay Box

Stereo Delay Pedal for Electric Guitar

  • Controls: Volume, Mix, Repeat, Tempo
  • Subdivision switch: Choose from quarter, triplets and dotted eighth delay
  • Pristine, clear sounds in studio quality
  • Tap Tempo digital delay with up to 3 seconds of delay
  • 2 Jack inputs: L / R
  • 2 Output terminals: L / R
  • DC input: Centre negative, 110 mA 9V DC power supply (not included)
  • Can also operate with a 9V battery
  • Dimensions (W x H x D - includes the buttons) - 60 x 50 x 115 mm
  • Power supply: Article Nr 409939 (not included)
No JavaScript? No Audio Samples! :-(

Sound samples

  • Prog Off_On
  • Blues Off_On
  • Delay Off_On
  • Hazey Off_On
  • Jazz Off_On

Further information

Digital Yes
Delay Time 3 s
tap feature Yes
Battery Operation Yes
PSU included No
10 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.4 / 5.0
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
5 written ratings Read all reviews
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.

Very board-friendly format; Sound & function User-dependent

Chris-to-fair, 20.08.2014
As I am quite satisfied with my DD-5 (10 years + trouble-free operation, successfully breached "board attack attempts" by DD-6, DD-7, DD-20), I thought: Rex part could be just right for me.
For me, it does not necessarily always mega analog-o. Tapes-tones, when it comes to delay.

In the DD-5 interferes me, that I still have to tap 4x to set new tempo.
In addition, the pedal must always be switched to the tap mode or tempo control.

The T-Rex Replay Box reaches 2 times tapping.
And a tapping simply overwrites the last set time poti tempo, and turning the Tempo knob overwrites the last tapped tempo.
This makes LIVE everything easier and faster.

Optics, size, haptics, workmanship looks great. Format corresponds approximately to a transversed MXR pedal (eg Dyna Comp / Distortion + etc.).

Controls are almost the same: "Mix", "Repeat" and "Tempo" are clear. The "Level" control is a quasi master volume, which can raise / lower the volume when the pedal is activated. So if you do not have a 2nd foot-switchable master volume at the amp or a boost pedal at the end of the pedal board, you can use the replay box for a boost at solo level.
This also saves a foot pedal if you want to lift the solo. Good extra feature.

To the sound: I liked at first glance. Not very far from my listening habits of the DD-5.
However, at the closer listening, unfortunately, a quiet but unpleasant "chirp" (digital distortion ??) in the repeats noticed. This is especially true in the case of tones on the wound strings. ("An old lady".... :) )
For example: Strat / A-string / 4th fret: apply sound -> make the string sound about 1 second -> then sound abruptly (but without producing even noises) to listen to the echo repeats.
Then the pedal that I had here shows a slight distorting noise in every repetition. Nevertheless, the main part of the output repeat sound is the classic clear digital delay. So that sounds completely different than "wanted" distortion
For analogue or tape delay models such as Line6 or Strymon.
("Stratitis" or played backband are NOT generators of the phenomenon.)

To tap subdivision:
I often need tap-echo,
And I find tap subdivisions super !!

However, I still do not understand why many TOP manufacturers do not equip their products with normal ACHTEL subdivisions.
This is a real shortcoming !!
Unfortunately also here with the Replay Box:
There are tapable quarters, dotted eighths and quarter-triplets.

Of course, the dotted eighth echo is one of the most famous echo rhythms. I also like to use it. Clear-YES.
So really good that this point. Eighth subdivision (i following SD) is now almost on every tapable pedal.

But no one appears to be strong for the eighth echo. Why??

There are clearly enough situations that make tapbare eighths indispensable:
1) Solo of "Abracadabra" (Steve Miller Band), 2) Echo-Guitar Fill-ins in the verse of "perfect world" (Gossip), 3) If the Powerchord riff of "Everybody dance now" (C + C musicfactory) and to perform on guitars, then you also need a LAST eighth echo (with only one to one and a half repeats).
4) There are some typical guitar rhythms, in which the guitarist himself strikes already dotted eighths. A dotted eighth echo would be worthless. Here again, eighth-rehearsals are used: eg theme-rythm-reef of "Crazy" (Seal).
In the original, there are only fat keyboard sounds at this point. But with clean sound, Compressor, possibly bissl chorus and even eighth-Delay one gets the guitar with almost 1 to 1.
Who is the iTüpfchen (who needs an iPhone?), Additionally uses Wah Wah, and moves it PRO AKKORD ONLY ONCE slowly from "heel-down" to "toe-down". And finished is the varnish !!

Back to the topic:
In many of these situations, the song tempo is too fast for the guitarist's foot to be able to steal CLEAN at the eighth tempo, which would be necessary with 1/4 SD.

1/8-SD is more important than 1/4 SD.
Who wants to hear 1/4, taps in 1/8-SD mode simply halftime.
It can be so simple.

The SD-toggle also has an influence on the range-speed control in the Replay-Box.
This means you are used to getting a 600ms delay, if the tempo button is set to 12 o'clock, this is no longer the case if you move the Sub Division toggle to another position. This also means that the max. Delay time of the replay box is only possible with toggle switch in 1/4-SD position.

So small and fine with peculiarities. Taste
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.

The top!

After using a TRex Reptile 2 whose sound convinced me, I decided for this delay.
Manufacturing quality at the top as usual at TRex.
The sound is exceptional! We get with this small pedal delays of a quality and a breathtaking beauty, so much so that it is difficult to disable ;-)

The small switch makes that one has under the fingers 3 delays in 1, moreover this pedal allows to play in real stereo since it has 2 inputs and 2 outputs.

I had a whole bunch of delays, in pedal or rack format and this one is really one of my favorite. The quality / price ratio is very good compared to delays much more expensive and which did not transcend ...
If you want a pure delay, versatile and a price more than correct then do not hesitate!
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Incl. VAT; plus 20 € shipping
Free shipping from 298 €
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Live Broadcast from our Departments
Our sales team will be happy to demonstrate any piece of equipment you want to see live from our store.
Visit department
Live Broadcast from our Departments
You have almost reached our store!
1. Browser
is compatible

This service is compatible with most web browsers. Should you encounter difficulties, you might try changing to Firefox or Chrome.

2. Mikrophone
no connection

In order for our representative to be able to hear you, you must have a microphone that your browser can access.

3. Security
is compatible

During your consultation we can hear you but not see you.

Live Broadcast from our Departments
What is this?
Using our Live Video Consulting service, you can visit our departments live and have us demonstrate any piece of equipment you want to see. You are perfectly free to ask questions of our representatives or give them instructions. And don't worry: we can hear, but not see you.
How can I use it?
Live Video Consulting is available for selected products. Whenever a sales representative is available, an icon which allows you to make us of the service will appear on the product page
How does that work?
You require a PC or Mac with a microphone and an up-to-date browser. It's best to use the current version of either Chrome or Firefox. Before initiating the connection, your browser will ask your permission to access your microphone.
Possible problems
We are still in the testing phase with this system, and our representatives are still finding out how to give you the best possible experience. Therefore, it may happen that we do not understand you (please speak clearly in either German or English only), that equipment is being tried out by other customers temporarily, or that there are problems with the connection. Please do not hesitate to give us feedback whenever anything like this happens, so that we may learn from this and improve our service.
Share this product
Your Contacts
Phone: +49-9546-9223-20
FAX: +49-9546-9223-24
Free test reports

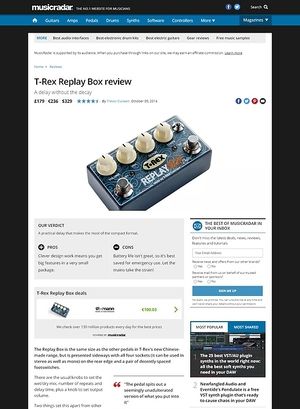

MusicRadar.com T-Rex Replay Box
T-Rex Replay Box
MusicRadar.com (10/2014)

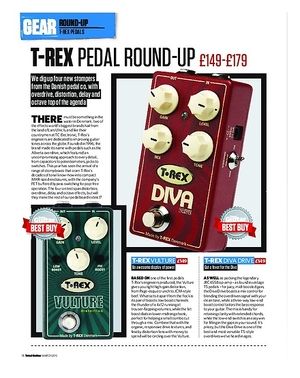

Total Guitar T-Rex Pedals
