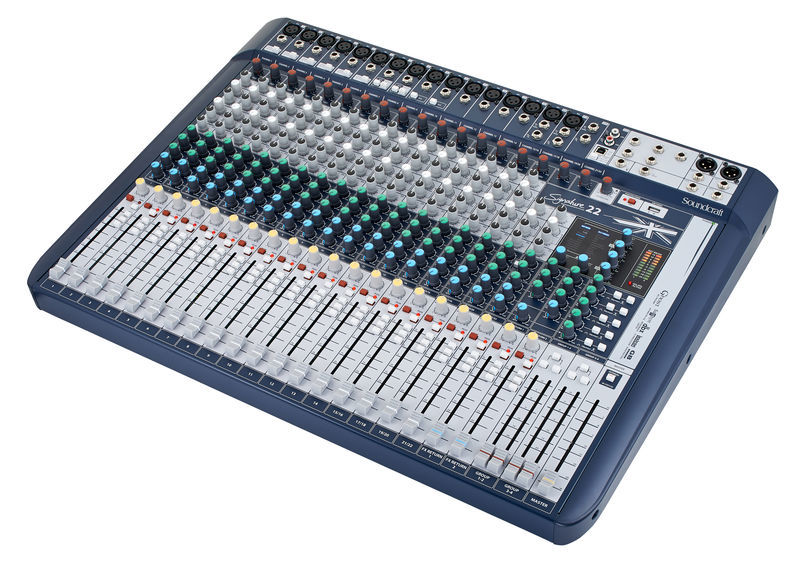

Soundcraft Signature 22

22 Channel Mixer
- 16 Mono inputs
- 4 Stereo inputs
- 4 Band EQ with swept mids
- 8 Mic channels with built-in dbx compressor/limiter
- 5 AUX sends
- Solo/Mute switch
- 4 Subgroups
- Built-in Lexicon effects device
- Peak LED per channel
- Integrated power supply
- 100 mm Fader
- 2 Channel USB interface (incl. Ableton Live 9 Lite software)
- Dimensions: 109 x 490 x 660 mm
- Weight: 11.06 kg
- Suitable case available under Article Nr 371944 (not included)
Further Information
Parallel usable Channels | 18 |
---|---|
Mic Ins | 16 |
Stereo Ins | 4 |
Master Out | XLR |
Number of Pre Aux max. | 2 |
PC Interface | USB-B |
Multitrack Recording | No |
USB/SD Direkt Record | No |
PFL | Yes |
Effect Processor | 1 |
USB Play | No |
Bluetooth Play | No |
Matrix Mixer | No |
Zones | 0 |
19" Rackmount | No |
