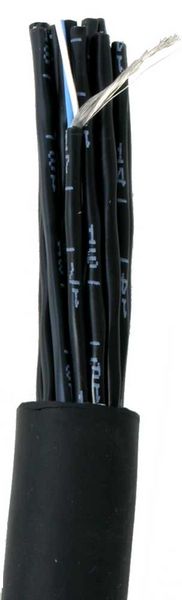

Sommer Cable Quantum Highflex Multipair 20

Multicore Cable

  • Quantum Highflex Multipair 20
  • Very high quality 20-pair multicore for live and studio purposes as well as permanent installations
  • Completely torsion-free
  • Cold-resistant up to -30°
  • Pairs of wires insulated individually with rubber sheath
  • Cu coil shielded with 99% coverage
  • Low capacitance of 45 pF cable/cable
  • 110 Ohm (AES/EBU), compliant over hundreds of metres
  • Wire cross-section: 0.14 mm²
  • Sheath: S-PVC - AWG - AWG26
  • Conductor insulation: Skin PE
  • Shielding: Cu coil, paired
  • Coverage: 99%
  • Temperature range: -30° to 70°
  • Sheath colour: Black, matte
  • Capacitance cable/cable at 1 m: 45 pF
  • Capacitance cable/shield at 1 m: 90 pF
  • Conductor resistance at 1 km: < 90 Ohm
  • Insulation resistance at 1 km: > 1 GOhm
  • Characteristic impedance: 110 Ohm

Further Information

Number of NF-channels 20
Screened Pair Yes
Colour Black
12 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Sommer Cable Quantum Highflex
Lorenz K., 22.10.2009
Das Sommer Cable Quantum Highflex ist ein absoluter Standard unter Multicores, der sich dank den günstigen Preisen bei Thomann auch bezahlen lässt.

Die einzelnen Adern sind gut beschriftet, die Verarbeitung lief schnell und einfach ab, Löten der Litzen und abisolieren ohne Probleme. Die Schirmung des Kabels ist sehr gut, hatte bis jetzt keine Probleme im Studio, keine Einstreuungen obwohl nebendran mehrere Lautsprecherkabel befinden.

Hatte auch beim Einbau keine Probleme, die Flexibilität des Kabels ist auf Grund des Schaumstoffs der von den Adern umgeben ist sehr hoch. Das Verlegen um Ecken oder Tische ist daher leicht zu machen.

Kann das Quantum Highflex nur wärmstens empfehlen!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
bon produit
Sébastien775, 01.10.2012
J'ai fabriqué mon multipaires avec 13 mètres de ce cable, il y a 3 ans.
Aucun problème jusque là. Mais je ne le conseil que pour une installation fixe, il est trop souple pour partir en tournée.
Le câble n'aime pas trop les torsions.
Mais c'est mieux que du ssnake
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Sehr flexibel u schnell zu löten
13.01.2017
Der Mantel lässt sich sehr gut u schnell abziehen, was viel Zeit spart beim Löten.

Man kann das Kabel problemlos einrollen u 90 Grad um die Ecke legen.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
it Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Tutto perfetto!
EnricoO, 14.08.2017
Ho utilizzato questo cavo per un'installazione fissa in uno studio. Non ci sono stati problemi di alcun genere, la qualità è davvero ottima. Ogni cavo all'interno della guaina più grande è formato da due cavi con guaina (+/-) ed il cavo di massa senza guaina che avvolge gli altri due schermandoli. La numerazione dei cavi è stampata ogni 5/8cm su ogni cavo. La guaina più grande ha a sua volta una schermatura che avvolge tutti i cavi all'interno. La flessibilità del cavo è buona, si riescono a fare curve a 90° durante la posa senza impazzire eccessivamente. Per quanto riguarda la resa non abbiamo notato sostanziali differenze tra questo e cavi di marchi più blasonati. Il rapporto qualità/prezzo è quindi molto alto, acquisto consigliatissimo!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
14,80 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Dispatch expected by Friday, 26.02.
