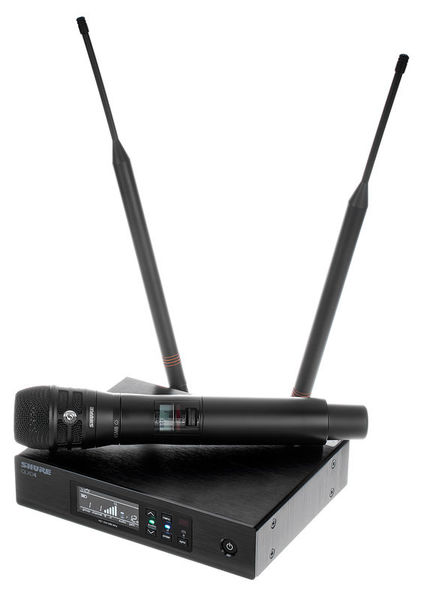

Shure QLXD24/KSM8B S50

Digital UHF Wireless System with Dynamic KSM8 Capsule

  • Frequency band: S50 (823 - 832 MHz and 863 - 865 MHz)
  • 24 bit / 48 kHz audio signal
  • AES-256 encryption for tap-proof transmission
  • Up to 72 MHz switching bandwidth
  • 22 compatible channels in an 8 MHz TV band
  • Switchable transmission power: 1/10 mW
  • 120 dB dynamic range
  • Handheld metal transmitter with dynamic dual-dyne KSM8 microphone capsule
  • Characteristic: Kidney
  • 9.5" metal receiver
  • Detachable BNC antennas
  • Ethernet port for system monitoring and configuration
  • Frequency transmission via infrared interface
  • Output: XLR / jack
  • Transmitter operation with either 1.5 V AA batteries, or with (optional) SB 900 lithium ion rechargeable battery
  • Includes PS23 power supply and rack mount

Further Information

Transmission technology digital
Channels Handheld Transmitter 1
Capsule Type Dynamic
Pattern Cardioid
Receiver Type Stationary
Frequency 823 MHz – 865 MHz
Output XLR
Charging System Optional
Integrated Battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
