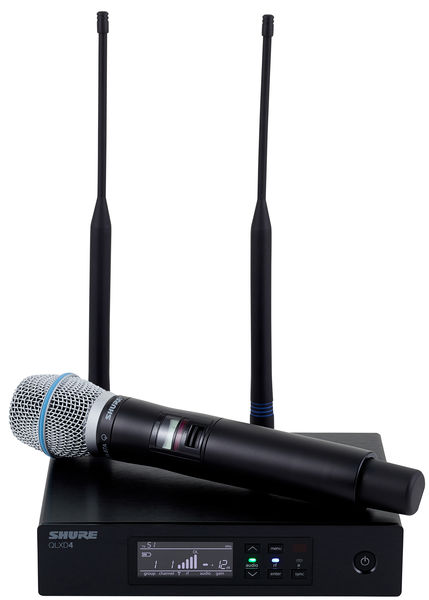

Shure QLXD24/Beta87A H51
Digital UHF Wireless System with Beta87A capsule
- Frequency band H51: 534 - 598 MHz
- 24 Bit / 48 kHz Audio signal
- AES-256 Encryption for tap-proof transmission
- Up to 72 MHz bandwidth
- 22 Compatible channels in an 8 MHz TV band
- Switchable transmitter power 1/10mW
- 120 dB Dynamic range
- Metal handheld transmitter with condenser microphone capsule Beta87A
- Directional characteristic: Super-cardioid
- 9.5" Metal receiver
- Detachable BNC antennas
- Ethernet connection for monitoring and configuration of the system
- Frequency transmission over infra red interface
- XLR / jack output
- Transmitter powered by 1.5 V AA batteries, also available with SB 900 lithium-ion battery technology
- Including PS23 power supply and rack-mount
Further information
| Frequency Band | UHF |
|---|---|
| Diversity | Yes |
| Switchable Frequencies | Yes |
| Removeable Antenna | Yes |
| Pilot Tone | Yes |
| Capsule Type | Condenser |
Information on the supported frequency ranges
Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.
