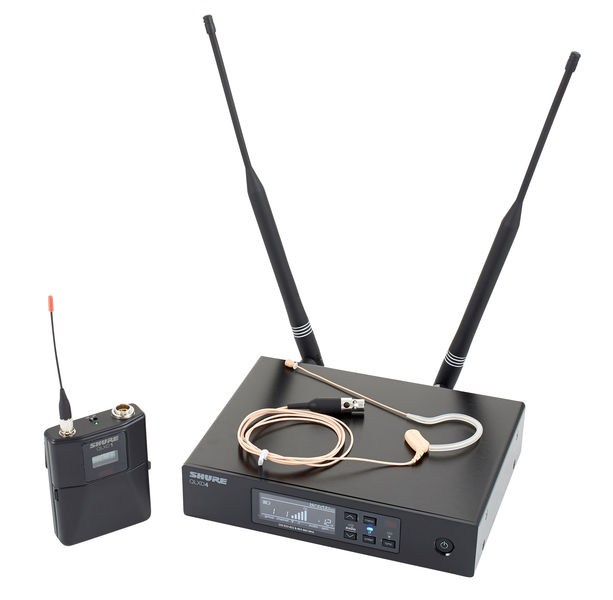

Shure QLXD14/153T S50

Digital UHF Wireless System with Pocket Transmitter and Earset Microphone

  • Frequency band S50: 823 - 832 MHz and 863 - 865 MHz
  • 24 bit / 48 kHz audio signal
  • AES-256 encryption for tap-proof transmission
  • Up to 72 MHz switching bandwidth
  • 22 compatible channels in an 8 MHz TV band
  • Switchable transmission power 1/10 mW
  • 120 dB dynamic range
  • Metal pocket transmitter with 4-pole TQG connection
  • Beige earset microphone MX153T
  • Polar pattern: Omnidirectional
  • 9.5" metal receiver
  • Detachable BNC antennas
  • Ethernet port for system monitoring and configuration
  • Frequency transmission via infrared interface
  • XLR / jack output
  • Transmitter operation with either 1.5 V AA batteries, or optional SB 900 lithium ion rechargeable battery
  • Includes PS23 power supply and rack mount
No JavaScript? No Audio Samples! :-(

Audio Examples


0:00
  • Female Ballad Dry
  • Female Ballad Processed
  • Male Ballad Dry
  • Male Ballad Processed
  • Female Soul Dry
  • Female Soul Processed
  • Male Soul Dry
  • Male Soul Processed
  • Show more

Further Information

Headset Cannels 1
Transmission Format digital
Receiver Type Stationary
Pattern Omnidirectional
Earset 1 Ear
Mountable Antenna BNC
Charging System Optional
Integrated battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
1.375 €
Free shipping incl. VAT
Available shortly (2-5 days)
Available shortly (2-5 days)

This item has been ordered with our suppliers and should be in our warehouse in the next few days.
