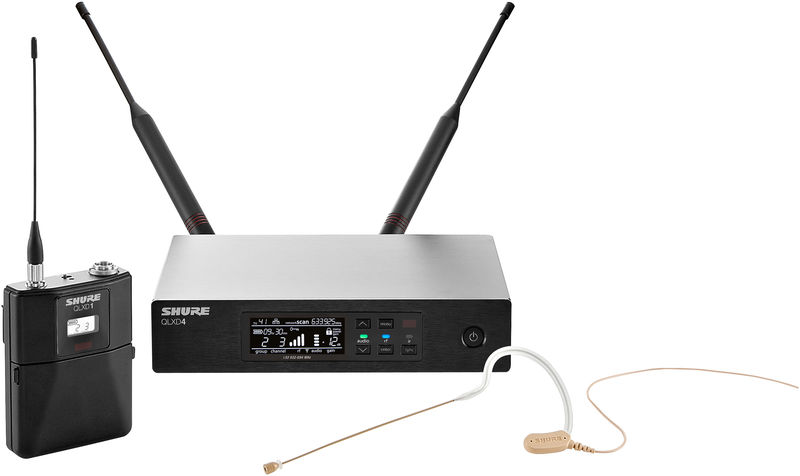

Shure QLXD14/153T H51
Digital UHF wireless system with bodypack and earset microphone
- Frequency band H51: 534 - 598 MHz
- 24 Bit/ 48 kHz Audio signal
- AES-256 Encryption
- Up to 72 MHz switching bandwidth
- 22 Compatible channels in one 8 MHz TV band
- Switchable transmitter power 1/ 10 mW
- 120 dB Dynamic range
- Metal bodypack with 4-pin TQG connector
- Beige earset microphone MX153T
- Polar pattern: omnidirectional
- 9.5" Metal receiver
- Detachable BNC antennas
- Ethernet connector for monitoring and configuring the systems
- Frequency transmission per infrared interface
- XLR/ Jack output
- Transmitter operates with 1.5 V AA batteries - also optional with SB900 lithium ion battery
- Incl. PS23 power supply and rack mount
Further information
| Frequency Band | UHF |
|---|---|
| Diversity | Yes |
| Switchable Frequencies | Yes |
| Removeable Antenna | Yes |
| Capsule | Condenser |
| Polar Pattern | Omnidirectional |
Information on the supported frequency ranges
Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.
