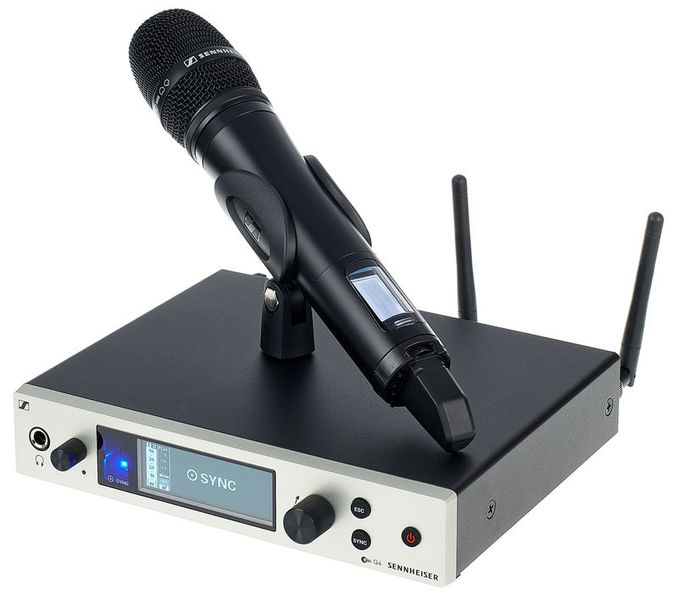

Sennheiser ew 500 G4 965 BW Band

UHF Wireless System

  • Consists of SKM 500 G4 hand-held transmitter, E965 interchangeable capacitor capsule and EM 300-500 G4 9.5" receiver
  • Frequency range: BW band (626 - 698 MHz)
  • Characteristic: Cardioid/Supercardioid
  • 72 MHz switching bandwidth
  • 20 Channel banks, each with up to 32 presets
  • Up to 32 compatible channels
  • Network connection for frequency management and control via WSM software (Wireless System Manager)
  • Audio transmission range: 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
  • Pilot tone
  • Auto-tune to find free frequencies
  • Integrated EQ
  • Audio gain includes 60 dB
  • Soundcheck mode
  • 4-digit battery indicator on transmitter and receiver
  • HDX compander
  • LCD display with NF level and channel display
  • Switchable transmission power 10/30/50mW
  • 2 BNC antenna sockets
  • XLR times balanced and jack unbalanced
  • Mains supply 10.5 - 16 V DC
  • Suitable capsules: Sennheiser EW, Neumann and MD 9235 (not included)
  • Includes GA 3 rack mount, microphone holder, NT2 power supply unit and 2x AA batteries

Further Information

Frequency Band UHF
Diversity Yes
Switchable Frequencies Yes
Removeable Antenna Yes
Pilot Tone Yes
Capsule Type Condenser
Power supply from transmitter 2x AA

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
Show variations of this product
Sennheiser ew 500 G4 965 BW Band
Sennheiser ew 500 G4 965 BW Band
to the product
1.435 €

UHF Wireless System Consists of SKM 500 G4 hand-held transmitter, E965 interchangeable capacitor capsule and EM 300-500 G4 9.5" receiver, Frequency range: BW band (626 - 698 MHz), Characteristic:...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 626 MHz
  • Frequency to: 698 MHz
