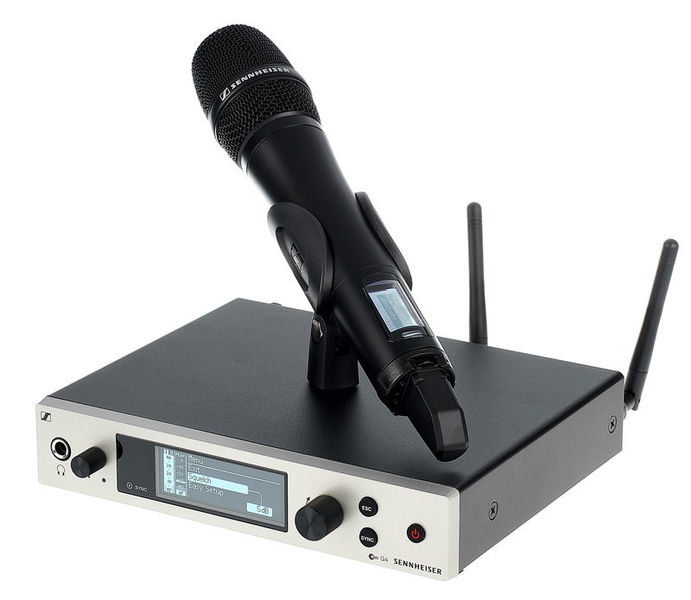

Sennheiser ew 500 G4 945 GBW Band

UHF Wireless System

  • With SKM 500 G4 handheld transmitter, dynamic E945 replaceable capsule and EM 300-500 G4 9.5" receiver
  • Frequency range: GBW Band (606 - 678 MHz)
  • Polar pattern: Super-cardioid
  • 72 MHz switching bandwidth
  • 20 Channel banks each with up to 32 presets
  • Up to 32 compatible channels
  • Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
  • Frequency range: 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional rechargeable battery BA 2015 (NiMH)
  • Pilot tone
  • Autotune for finding free frequencies
  • Integrated EQ
  • Audio Gain includes 60 dB
  • Soundcheck Mode
  • 4-Digit battery indicator on the transmitter and receiver
  • HDX compander
  • LCD display with NF level and channel display
  • Switchable transmission power 10/30 / 50mW
  • 2 BNC antenna sockets
  • XLR-Male balanced and unbalanced jack
  • Mains supply 10.5 - 16 V DC
  • Suitable capsules: Sennheiser EW, Neumann and MD 9235 (not included)
  • Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

Further Information

Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Dynamic
Pattern Super Cardioid
Receiver Type Stationary
Frequency 606 MHz – 678 MHz
Output XLR
Charging System Optional
Integrated Battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
1.083 €
All prices incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery free of charge expected between Monday, 25.01. and Tuesday, 26.01.
