Sennheiser ew 300 G4 Base SKM-S AW+ Band

1

HF Wireless System

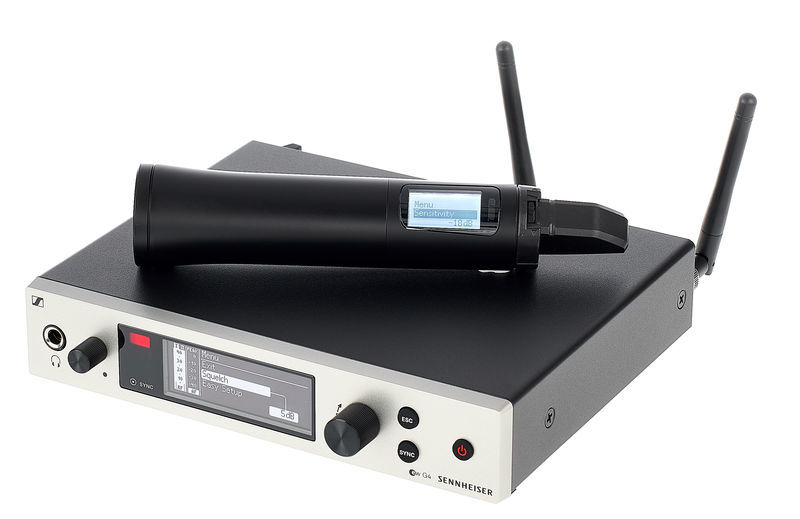

  • Includes a SKM 300 G4-S handheld transmitter with mute button (without capsule), and a EM 300-500 G4 9.5" receiver
  • Frequency range: AW+ Band (470 - 558 MHz)
  • 88 MHz Switching bandwidth
  • 20 Channel banks with up to 32 presets each
  • Up to 32 compatible channels
  • Network connection for frequency management and control via software WSM (Wireless System Manager)
  • Frequnecy response: 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional BA 2015 battery (NiMH)
  • Pilot tone
  • Automatic frequency scan feature locates available frequencies
  • Integrated EQ
  • Audio gain: 60 dB
  • Soundcheck mode
  • 4-Digit battery indicator on the transmitter and receiver
  • HDX compander
  • LCD display with AF / RF level and channel display
  • Switchable transmission power: 10 / 30 / 50 mW
  • 2x BNC antenna sockets
  • XLR male balanced and jack unbalanced
  • Power supply: 10.5 - 16 V DC
  • Suitable capsules: Sennheiser EW, Neumann, and MD 9235 (not included, must be ordered separately)
  • Incl. a GA 3 rackmount, RJ10 connector cable, microphone holder, NT2 power supply, and 2x AA batteries
available since April 2019
Item number 438256
sales unit 1 piece(s)
Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Changeable
Pattern No
Receiver Type Stationary
Frequency 470 MHz – 558 MHz
Output XLR
Charging System Optional
Integrated Battery No
Diversity 1
Interchangeable Capsule 1
Receiver Width in mm 212 mm
Receiver Height in mm 43 mm
Receiver Depth in mm 202 mm
Receiver Weight in kg 1 kg
Transmitting Power in mW 50 mW
Selectable Frequencies 635
Switching Bandwidth in MHz 88 MHz
Frequency Display 1
Frequency Scan 1
Removable Antenna BNC
Network Connection 1
Battery Status Monitor 1
Rackkit Yes
Rackkit (Art. No.) 230324
Antenna Rackmount Kit 167045
Splitter 442091
