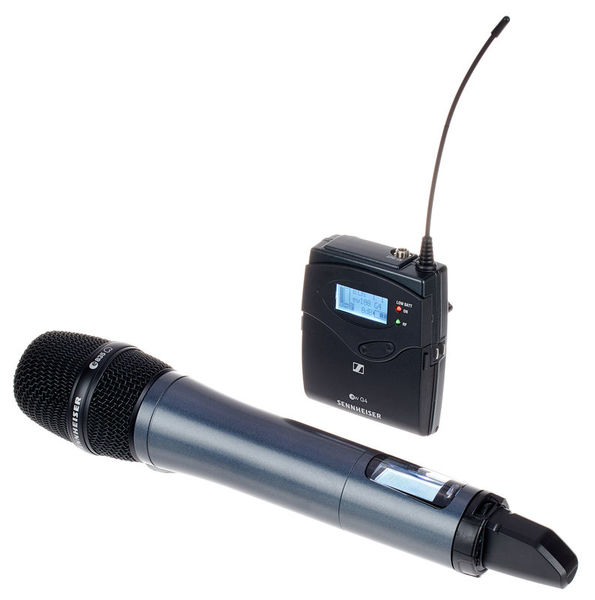

Sennheiser EW 135P G4 B-Band
UHF Wireless camera-mount system
- Consists of a SKM 100 G4 handheld transmitter, a dynamic E835 removable capsule, and an EK 100 G4 pocket receiver
- Frequency range: B-Band (626-668 MHz)
- Directional characteristic: cardioid
- 42 MHz Switching bandwidth
- 20 Channel banks with up to 12 presets each
- Up to 20 compatible channels
- Audio transmission range: 25 - 18,000 Hz
- Frequency transmission via infrared interface
- Handheld transmitter and pocket receiver with charging terminal for an optional BA 2015 (NiMH) battery (not included, must be ordered separately)
- Pilot tone
- Automatic frequency scan feature locates available frequencies
- Audio gain: 60 dB
- 4-Digit battery indicator on the transmitter and receiver
- HDX compander
- LCD display with AF / RF level and channel display
- Transmission power: 30 mW
- Includes a CL100 cable, CL 1 cable, and a CA 2 flash unit adapter
Further Information
| Frequency Band | UHF |
|---|---|
| Diversity | Yes |
| Switchable Frequencies | Yes |
| Removeable Antenna | Yes |
| Pilot Tone | Yes |
| Capsule Type | Dynamic |
| Power supply from transmitter | 2x AA |
Information on the supported frequency ranges
Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.
