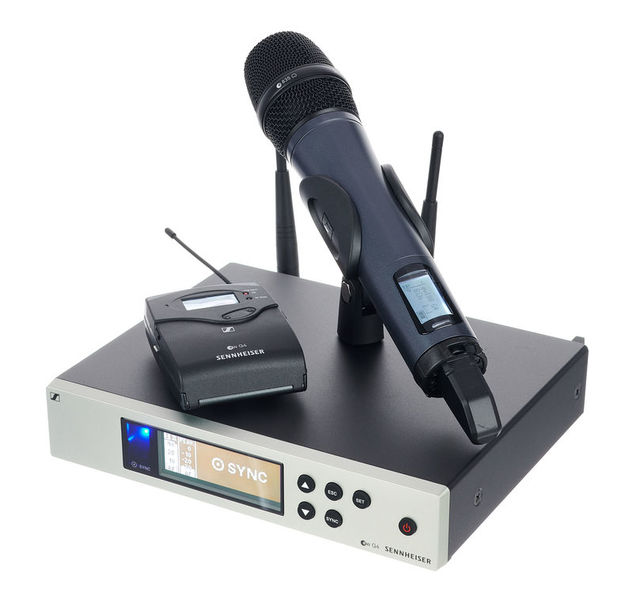

Sennheiser ew 100 G4-ME2/835-S GB-Band

UHF Wireless System

• Consists of SKM 100 G4-S handheld transmitter with mute switch and E835 interchangeable capsule, SK 100 G4 bodypack transmitter, ME 2-II condenser lavalier microphone and EM 100 G4 9.5" receiver
• Frequency range GB-Band: 606 - 648 MHz
• Includes GA 3 rack mount, RJ10 connection cable, microphone holder, NT2 power supply and 2x AA batteries

SKM 100 G4-S hand-held transmitter with E835 interchangeable capsule:

• Dynamic
• Characteristic: Cardioid
• Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)

ME 2-II condenser lavalier microphone:

• Characteristic: Omnidirectional

EM 100 G4 9.5" receiver:

• 42 MHz switching bandwidth
• Up to 12 compatible channels
• Fast frequency assignment for up to 12 receivers via link function with RJ10 connection
• Audio transmission range 25 - 18,000 Hz
• Frequency transmission via infrared interface
• Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
• Pilot tone
• Auto-tune to find free frequencies
• Integrated EQ
• Audio gain includes 60 dB
• Soundcheck mode
• 4-digit battery indicator on transmitter and receiver
• HDX compander
• LCD display with NF level and channel display
• 30mW transmitting power
• 2 BNC antenna sockets
• XLR times balanced and jack unbalanced
• Mains supply 10.5 - 16 V DC

Note: parallel operation not possible - only one transmitter is possible at a time
