Sennheiser ew 100 G4-ME2 1G8-Band

1

UHF Wireless System

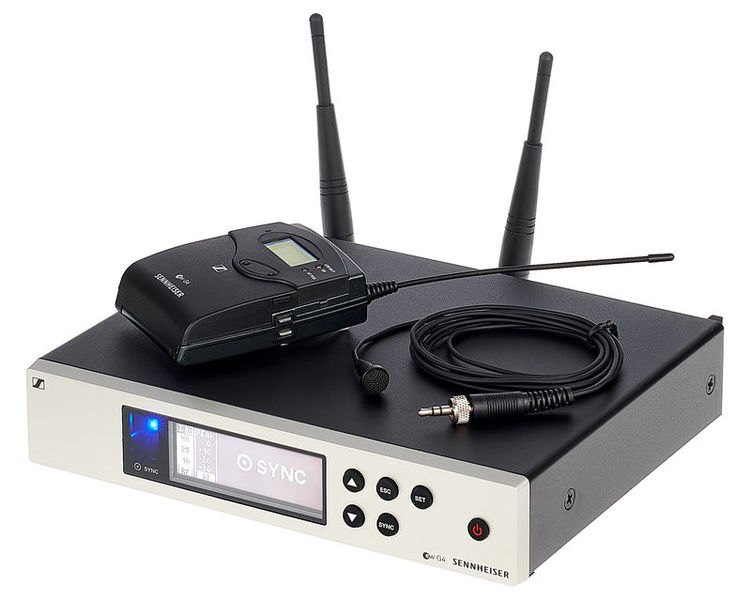

  • Includes the SK 100 G4 pocket transmitter and ME 2-II condenser lavalier microphone
  • Frequency range: 1G8 (1785 - 1800 MHz)
  • Includes a GA 3 rackmount, an RJ10 connector cable, a NT2 power supply and 2x AA batteries

Features of the ME 2-II condenser lavalier microphone:

  • Directional characteristic: Omnidirectional

Features of the EM 100 G4 9.5" receiver:

  • 15 MHz switching bandwidth
  • Up to 12 compatible channels
  • Fast frequency allocation for up to 12 receivers via link function with RJ10 connection
  • Frequency range: 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Pocket transmitter with charging contacts for an optional BA 2015 battery (NiMH)
  • Pilot tone
  • Automatic frequency scan feature locates available frequencies
  • Integrated EQ
  • Audio gain: 60 dB
  • Soundcheck mode
  • 4-Digit battery indicator on the transmitter and receiver
  • HDX compander
  • LCD display with RF/AF levels and channel display
  • Transmission power: 10 mW
  • 2 BNC antenna sockets
  • XLR male (balanced) and jack (unbalanced)
  • Power supply: 10.5 - 16 V DC
Capsule Type Condenser
Microphone Color Black
Receiver Type stationary
Frequency 1800 MHz
Transmission system Analog
Channels Lapel Microphone 1
available since June 2018
Item number 434332
sales unit 1 piece(s)
Pattern omnidirectional
Diversity 1
Mic Model 141978
Receiver Width in mm 212 mm
Receiver Height in mm 43 mm
Receiver Depth in mm 202 mm
Receiver Weight in kg 1 kg
Frequency from 1800 MHz
Frequency to 1800 MHz
Transmitting Power in mW 10 mW
Selectable Frequencies 235
Switching Bandwidth in MHz 42 MHz
Frequency Display 1
Frequency Scan 1
Removable Antenna BNC
Battery Status Monitor 1
Output XLR
Charging System Optional
Rackkit Yes
Rackkit Art.-No. 230324
Antenna Mount Kit 167045
Splitter 441934
Show more
589 €
All prices incl. VAT
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Delivery free of charge expected between Thursday, 3.02. and Friday, 4.02.
1

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
