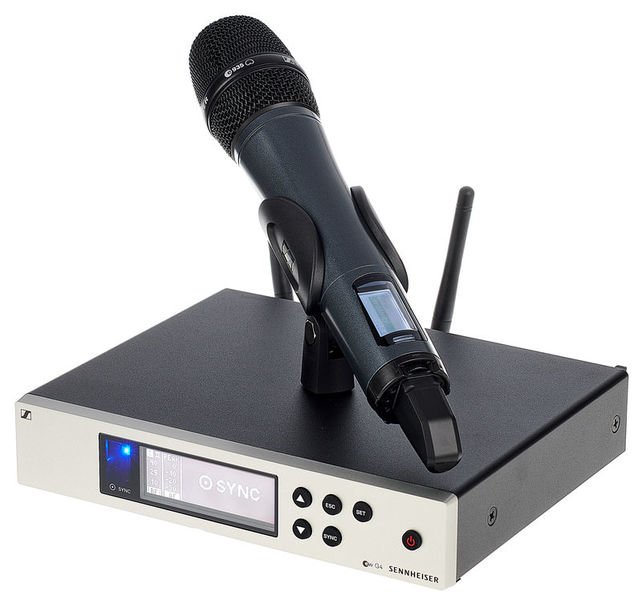

Sennheiser ew 100 G4-935-S C-Band

UHF Wireless System

Handheld Transmitter SKM 100 G4-S

  • With mute switch
  • Replaceable capsule E935
  • Dynamic
  • Polar pattern: Cardioid
  • Frequency range: C-band (734 - 776 MHz)

Receiver EW 100 G4 9.5"

  • 42 MHz bandwidth
  • 20 Frequency banks with up to 12 presets for each
  • Up to 20 compatible channels
  • Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
  • Frequency response 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
  • Pilot tone
  • Autotune to find free frequencies
  • Integrated EQ
  • Audio gain over 60 dB range
  • Soundcheck mode
  • 4-Digit battery indicator on transmitter and receiver
  • HDX compander
  • LCD with AF level and channel display
  • 30 mW transmission power
  • 2 BNC antenna connectors
  • XLR male balanced and jack unbalanced
  • Power supply 10.5 - 16 V DC
  • Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2 AA batteries
No JavaScript? No Audio Samples! :-(

Audio Examples


0:00
  • Ballad Female - Dry
  • Ballad Female - FX
  • Ballad Male - Dry
  • Ballad Male - FX
  • Blues Male - Dry
  • Blues Male - FX
  • Poprock Female - Dry
  • Poprock Female- FX
  • Rock Female - Dry
  • Rock Female - FX
  • Rock Male - Dry
  • Rock Male - FX
  • Soul Female - Dry
  • Soul Female - FX
  • Show more

Further Information

Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Dynamic
Pattern Cardioid
Receiver Type Stationary
Frequency 734 MHz – 776 MHz
Output XLR
Charging System Optional
Integrated Battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
