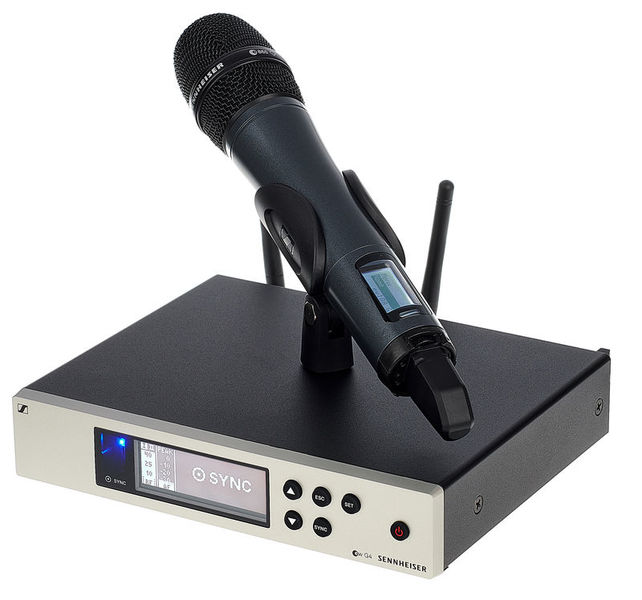

Sennheiser ew 100 G4-865-S A1-Band

UHF Wireless System

  • SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule
  • Frequency range: A1 band (470 - 516 MHz)
  • Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

Features of E865 replaceable capsule:

  • Capacitor
  • Polar pattern: Super-cardioid

Features of EM 100 G4 9.5" receiver:

  • 42 MHz bandwidth
  • 20 Frequency banks with up to 12 presets for each
  • Up to 20 compatible channels
  • Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
  • Frequency response: 25 - 18,000 Hz
  • Frequency transmission via infrared interface
  • Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
  • Pilot tone
  • Autotune to find free frequencies
  • Integrated EQ
  • Audio gain over 60 dB range
  • Soundcheck mode
  • 4-Level battery indicator on transmitter and receiver
  • HDX compander
  • LCD with AF level and channel display
  • 30 mW transmitter power
  • 2 BNC antenna connectors
  • XLR male balanced and jack unbalanced
  • Power supply 10.5 - 16 V DC
No JavaScript? No Audio Samples! :-(

Audio Examples


0:00
  • Ballad Female - Dry
  • Ballad Female - FX
  • Ballad Male - Dry
  • Ballad Male - FX
  • Blues Male - Dry
  • Blues Male - FX
  • Metal Male - Dry
  • Metal Male - FX
  • Pop-Rock Female - Dry
  • Pop-Rock Female - FX
  • Rock Female - Dry
  • Rock Female - FX
  • Rock Male - Dry
  • Rock Male - FX
  • Soul Female - Dry
  • Soul Female - FX
  • Show more

Further Information

Frequency Band UHF
Diversity Yes
Switchable Frequencies Yes
Removeable Antenna Yes
Pilot Tone Yes
Capsule Type Condenser
Power supply from transmitter 2x AA

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

frequency range:
All information is without guarantee

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!
Sennheiser ew 100 G4-865-S A1-Band + Cordial CFM 0,5 FM BK +
4 more
Configure bundle now
starting from 739 €
Sennheiser ew 100 G4-865-S A1-Band 4x + Sennheiser ASA 214 + Sennheiser GA3 +
3 more
Configure bundle now
starting from 3.399 €
Show variations of this product
Sennheiser ew 100 G4-865-S A1-Band
Sennheiser ew 100 G4-865-S A1-Band
to the product
739 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: A1 band (470 - 516 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 470 MHz
  • Frequency to: 516 MHz
Sennheiser ew 100 G4-865-S E-Band
(1)
Sennheiser ew 100 G4-865-S E-Band
to the product
659 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: E-band (823 - 865 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 823 MHz
  • Frequency to: 865 MHz
Sennheiser ew 100 G4-865-S 1G8
(1)
Sennheiser ew 100 G4-865-S 1G8
to the product
666 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: 1G8 (1785 - 1800 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: 1,8 GHz
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 1785 MHz
  • Frequency to: 1800 MHz
Sennheiser ew 100 G4-865-S B-Band
Sennheiser ew 100 G4-865-S B-Band
to the product
739 €

UHF Wireless System Handheld Transmitter SKM 100 G4-S with mute switch and E865 replaceable capsule, Frequency range: B-band (626 - 668 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 626 MHz
  • Frequency to: 668 MHz
Sennheiser ew 100 G4-865-S A-Band
Sennheiser ew 100 G4-865-S A-Band
to the product
719 €

UHF Wireless System With handheld Transmitter SKM 100 G4-S with mute switch and E865 replaceable capsule, Frequency range: A-band (516 - 558 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 516 MHz
  • Frequency to: 558 MHz
Sennheiser ew 100 G4-865-S GB-Band
Sennheiser ew 100 G4-865-S GB-Band
to the product
698 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: GB-band (606 - 648 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 606 MHz
  • Frequency to: 648 MHz
Sennheiser ew 100 G4-865-S G-Band
Sennheiser ew 100 G4-865-S G-Band
to the product
739 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: G-band (566 - 608 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 566 MHz
  • Frequency to: 608 MHz
Sennheiser ew 100 G4-865-S C-Band
Sennheiser ew 100 G4-865-S C-Band
to the product
739 €

UHF Wireless System SKM 100 G4-S handheld transmitter with mute switch and E865 replaceable capsule, Frequency range: C-band (734 - 776 MHz), Includes GA 3 rackmount, RJ10 connection cable,...

  • Frequency Band: UHF
  • Diversity: Yes
  • Switchable Frequencies: Yes
  • Removeable Antenna: Yes
  • Pilot Tone: Yes
  • Capsule Type: Condenser
  • Power supply from transmitter: 2x AA
  • Frequency from: 734 MHz
  • Frequency to: 776 MHz
739 €
Free shipping incl. VAT
On request
On request

Our supplier has not yet provided us with an expected delivery date. Kindly contact us for further information or to see if we have a B-Stock or suitable alternative available.
