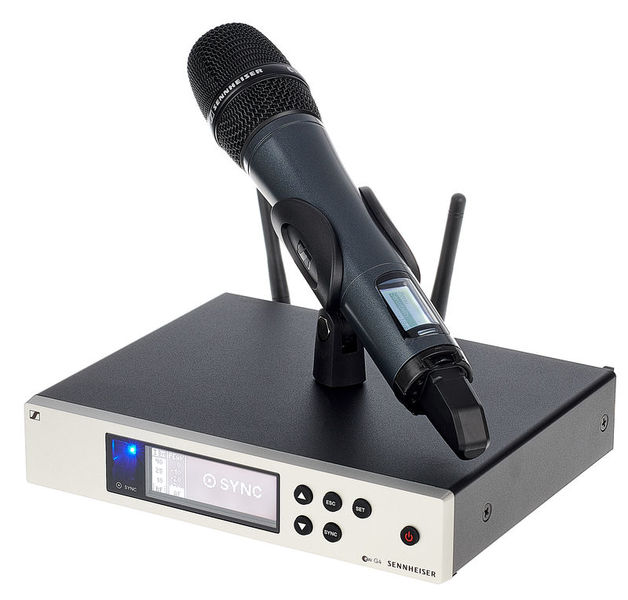

Sennheiser ew 100 G4-845-S C-Band

UHF Wireless System

• SKM 100 G4-S handheld transmitter with mute switch and E845 replaceable capsule
• Frequency range: C-band (734 - 776 MHz)
• Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

Features of E845 replaceable capsule:

• Dynamic
• Polar pattern: Super-cardioid

Features of EM 100 G4 9.5" receiver:

• 42 MHz bandwidth
• 20 Frequency banks with up to 12 presets for each
• Up to 20 compatible channels
• Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
• Frequency response: 25 - 18,000 Hz
• Frequency transmission via infrared interface
• Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
• Pilot tone
• Autotune to find free frequencies
• Integrated EQ
• Audio gain over 60 dB range
• Soundcheck mode
• 4-Level battery indicator on transmitter and receiver
• HDX compander
• LCD with AF level and channel display
• 30 mW transmitter power
• 2 BNC antenna connectors
• XLR male balanced and jack unbalanced
• Power supply 10.5 - 16 V DC
