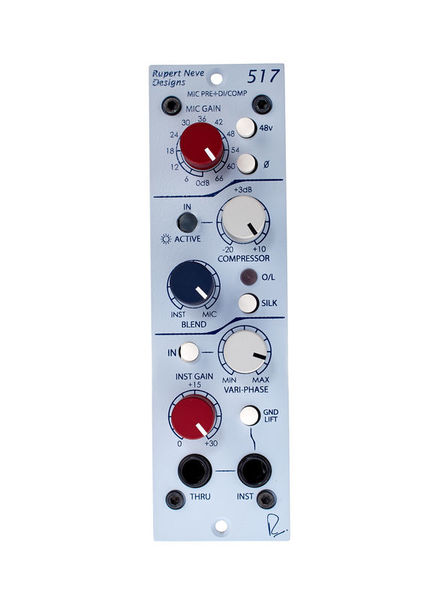

Rupert Neve Designs Portico 517

4 ratings

Microphone preamplifier, compressor and DI

With Vari-phase, Silk and DI / mic blend
Frequency range: Main output, no load, -0.2 dB @ 10 Hz -3 dB @ 160 kHz
Noise: measured at main output, unweighted, 22 Hz-22 kHz
Microphone gain up to 66 dB
DI gain from 0db to 30dB
Maximum Output Level: from 20 Hz to 40 kHz +23 dBu
Total harmonic distortion and noise: @ 1 kHz, + 20 dBu output: Main Output: better than 0.001% at 20 Hz, +20 dBu Output: Main Output: better than 0.002% Silk activated: better than 0.2% Second Harmonic
Crosstalk (measured from channel to channel): better than -90 dB @ 15 kHz
Phantom Power: +48 Volts DC +/- 1%
Construction: API Series 500 rack format

Further Information

Pre-Amp	Yes
48 V Phantom power	Yes
compressor	Yes
limiter	No
equalizer	No
De-Esser	No
other processors	No
Rack/Frame	No
supplies	No

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!

2 more

Configure bundle now

starting from 2.075 €

4 Customer Ratings

5

3 Customers

3 customers have given this product a 5-star rating.

Of these, 2 customers have written no texts or given their feedback in another language.
4

1 Customer

One customer has given this product a 4-star rating.

No customer has written a text about this; or they have written a text in a different language.
3
2
1

4.8 /5

handling
features
sound
quality

Seriously good

23.04.2014

If you're looking for a combined pre-amp and DI, with the ability to blend between the two, there's really not much choice. Luckily, though, you don't need to look any further than this little beauty. The fact it's available in a 500-series module means that it's possible to use this kind of gear on the road as part of your instrument set-up, which is pretty astounding. As you might imagine, the thing is built like a tank, and cosmetically looks excellent. The signature Portico knobs are great to grab and feel solid. Before I got hold of one of these, I was using Focusrite ISA units as my main pre-amps, and to be honest, I didn't expect to hear any noticable difference between those and the 517, especially considering it wasn't a dedicated pre-amp itself. However, comparing the sound of an acoustic guitar through a DPA 2011C, I couldn't believe how much more detailed the 517 sounded. On the strength of this, I bought a 551 EQ (also excellent), and I'm also considering buying a few other rack units in this range. Top notch!

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

Original review (Show translation)

Unfortunately there was an error. Please try again later.

mágico

04.04.2014

Pues eso, este previo es mágico, hace que todo suene mejor. El botón de SILK, que supuestamente añade "calidez nostálgica" no hace gran cosa, o casi no lo he notado. Ese es el único inconveniente. A falta de probarlo con guitarras acústicas le doy 5 estrellas en todo.

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

899 €

All prices incl. VAT

Available immediately

Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery free of charge expected between Tuesday, 9.03. and Wednesday, 10.03.

Add to wish list

sales rank in this product group	83
at thomann.de	32212

item number	274306
sales unit	1 piece
available since	March 2012
